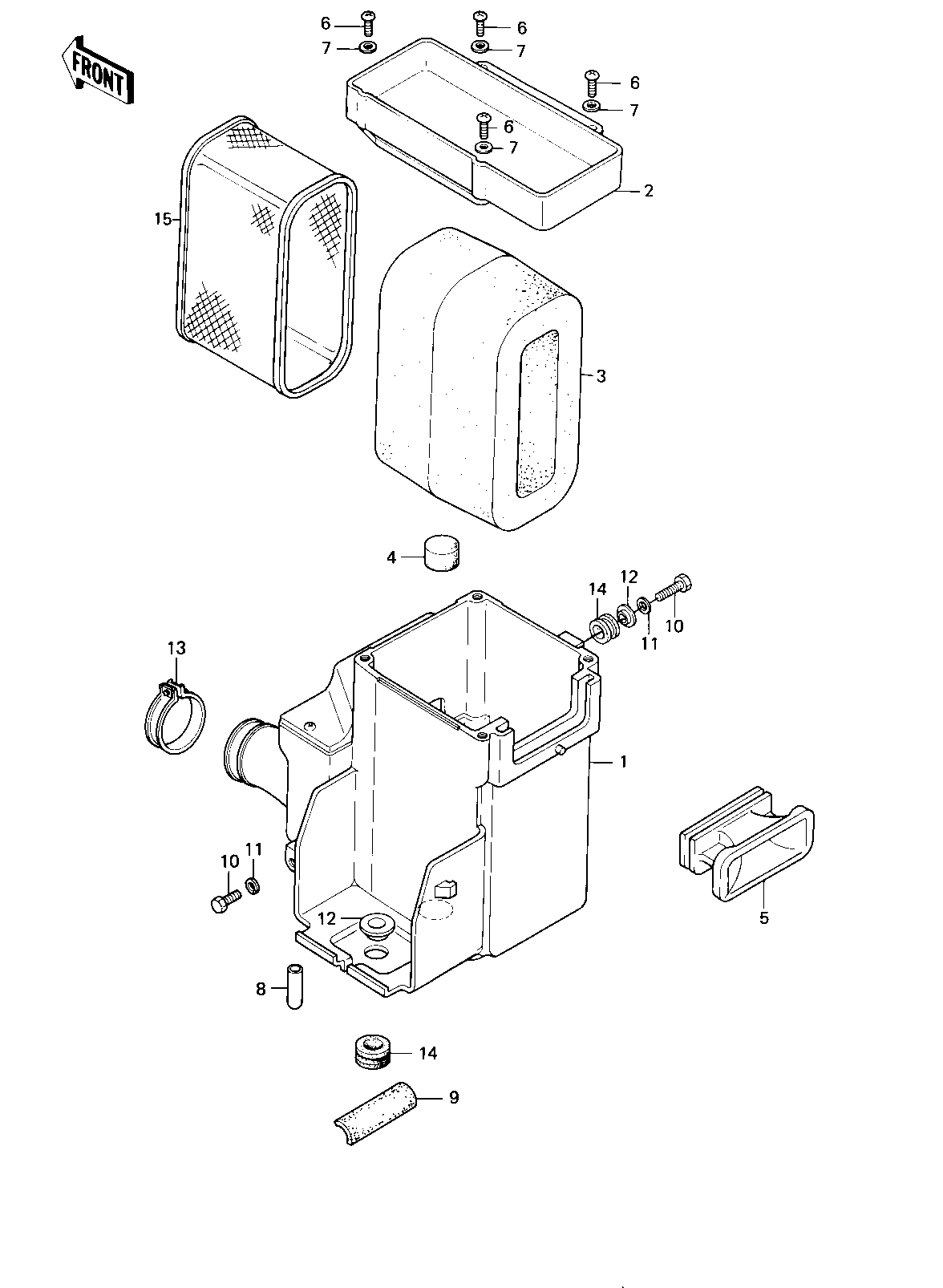

1980 KE175 - AIR CLEANER ('80-'81 KE175-D2/D3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE,AIR CLEANER | 1 | 11011-1076 | 1 | ||
| CAP,AIR CLEANER | 2 | 11012-1133 | 1 | ||
| ELEMENT,AIR CLNR | 3 | 11013-1042 | 1 | ||
| ELEMENT,AIR CLNR | 4 | 11013-1019 | 1 | ||
| DUCT,AIR CLEANER INLT | 5 | 14073-1029 | 1 | ||
| SCREW-PAN-CROS | 6 | 220B0414 | 4 | ||
| WASHER PLAIN 4MM | 7 | 410B0400 | 4 | ||
| PLUG,AIR CLNR DRAIN | 8 | 92066-1014 | 1 | ||
| DAMPER,AIR CLEANER | 9 | 92075-1085 | 1 | ||
| BOLT-UPSET,6X20 | 10 | 112G0620 | 2 | ||
| WASHER SPRING 6MM | 11 | 461F0600 | 2 | ||
| COLLAR | 12 | 92027-153 | 2 | ||
| CLAMP-INLET PIPE | 13 | 92037-061 | 1 | ||
| DAMPER RUBBER | 14 | 92075-051 | 2 | ||
| HOLDER,CLENER ELEMENT | 15 | 11014-011 | 1 |
| CASE,AIR CLEANER | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR CLEANER | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR CLEANER INLT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 4MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG,AIR CLNR DRAIN | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,AIR CLEANER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X20 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP-INLET PIPE | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLENER ELEMENT | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
