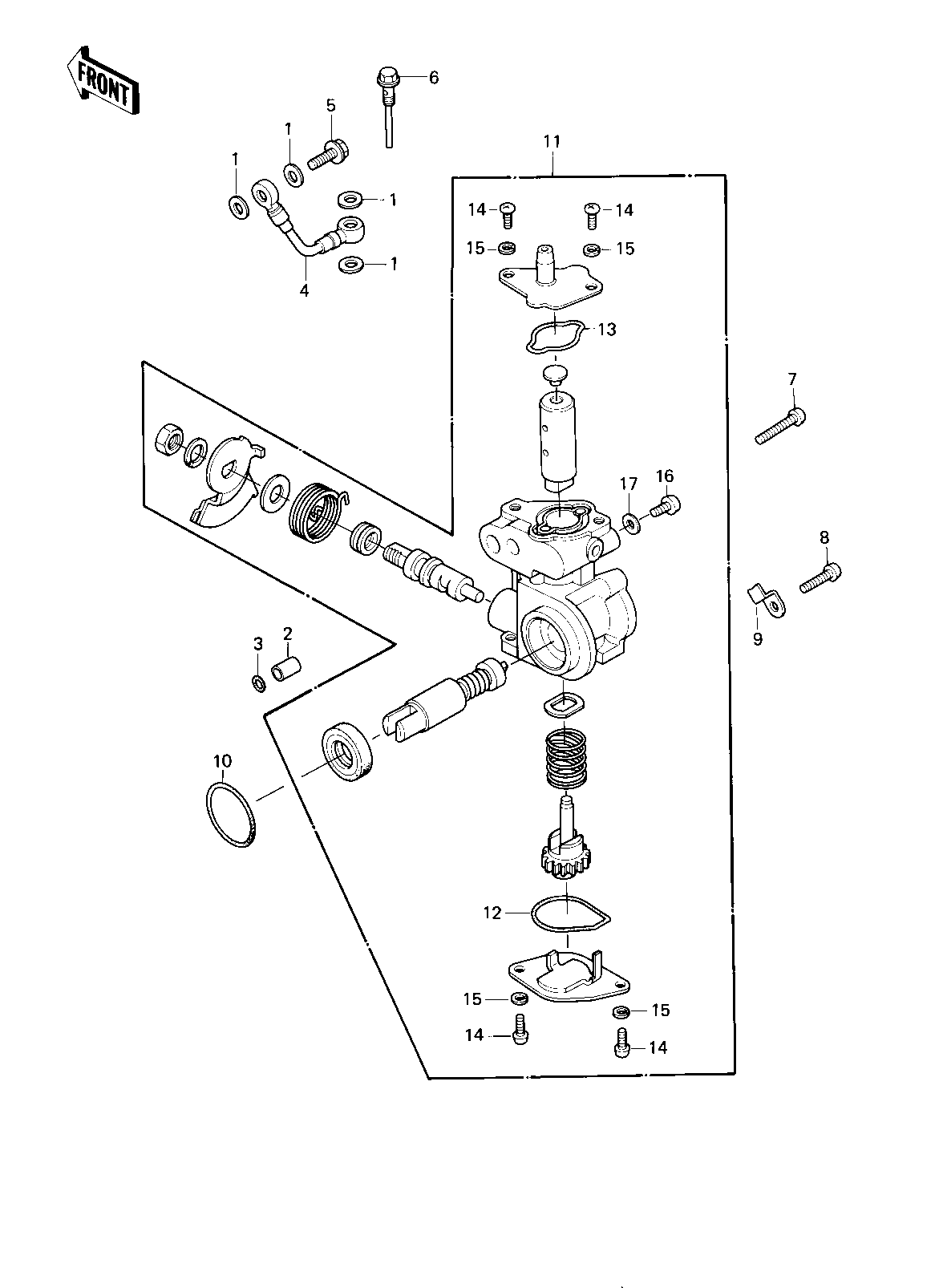

1980 KE175 - OIL PUMP ('80-'81 KE175-D2/D3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER OIL PUMP BANJO | 1 | 92022-077 | 4 | ||
| COLLAR | 2 | 92027-256 | 1 | ||
| "O" RING,5MM | 3 | 670B1505 | 1 | ||
| PIPE,OIL | 4 | 92059-1090 | 1 | ||
| BOLT-BANJO,6MM | 5 | 92060-013 | 1 | ||
| NOZZLE, | 6 | 92062-1008 | 1 | ||
| SCREW PAN HEAD 5X20 | 7 | 220B0520 | 1 | ||
| SCREW PAN HEAD 6X16 | 8 | 220B0616 | 1 | ||
| CLAMP | 9 | 92037-1080 | 1 | ||
| "O" RING | 10 | 92055-055 | 1 | ||
| PUMP ASSY,OIL | 11 | 16082-1006 | 1 | ||
| "O" RING,OIL PUMP LOW | 12 | 92055-1015 | 1 | ||
| "0" RING,OIL PUMP,UPP | 13 | 92055-1016 | 1 | ||
| SCREW PAN HEAD 3X8 | 14 | 220B0308 | 4 | ||
| WASHER SPRING 3MM | 15 | 461F0300 | 4 | ||
| SCREW PAN HEAD 5X8 | 16 | 220B0508 | 1 | ||
| WASHER,AIR VENT | 17 | 92022-1025 | 1 |
