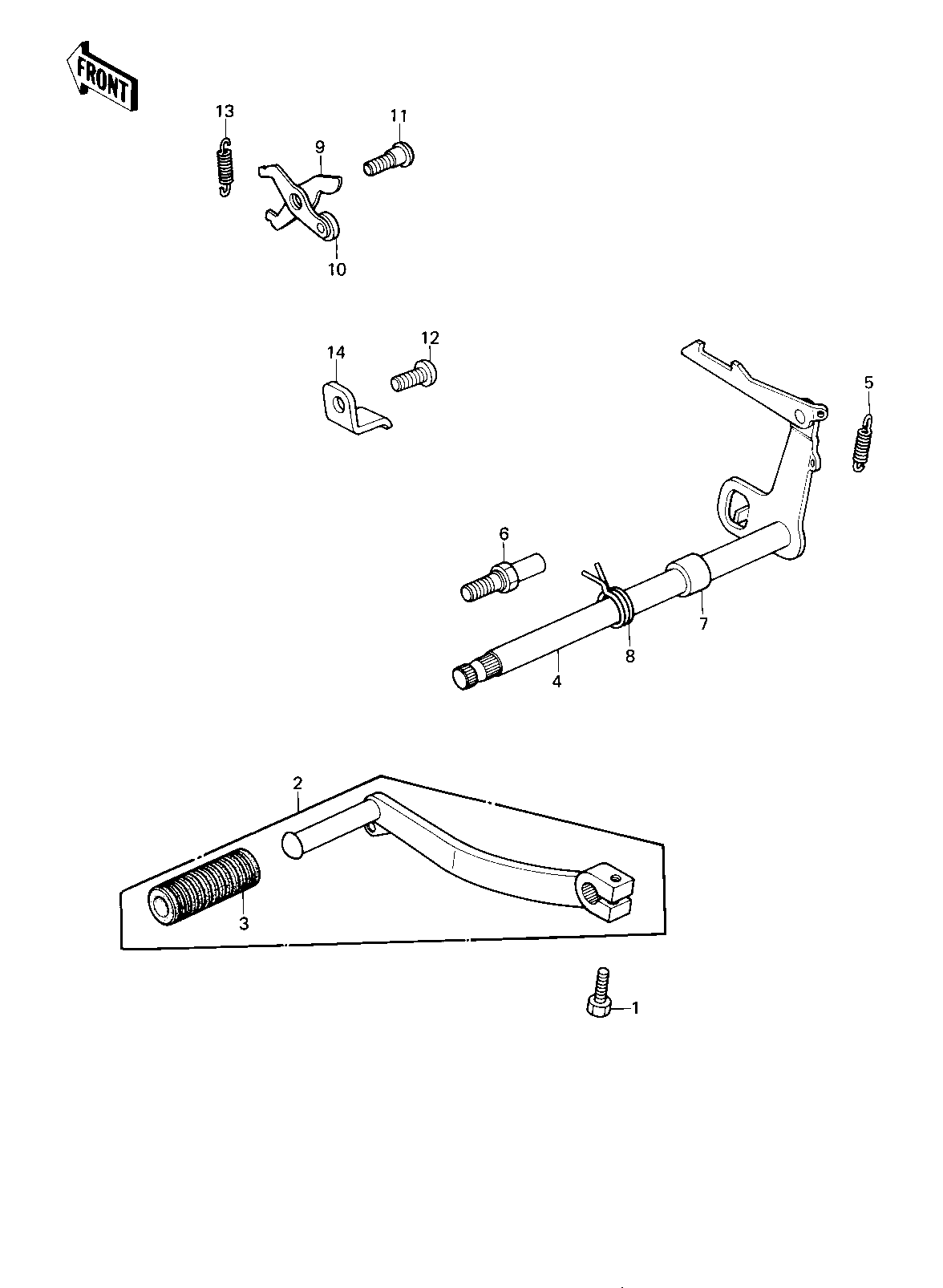

1980 KE175 - GEAR CHANGE MECHANISM ('80-'81 KE175-D2/
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET,6X20 | 1 | 112G0620 | 1 | ||
| LEVER-ASSY-CHANGE,PED | 2 | 13242-1273 | 1 | ||
| RUBBER CHANGE PEDAL | 3 | 13157-004 | 1 | ||
| LEVER ASSY,GEAR CHANG | 4 | 13161-1017 | 1 | ||
| SPRING,GEAR CHANGE | 5 | 92081-156 | 1 | ||
| BOLT,RETURN SPRING | 6 | 92001-1401 | 1 | ||
| COLLAR | 7 | 92027-189 | 1 | ||
| SPRING,TENTION | 8 | 92081-1129 | 1 | ||
| LEVER,GEAR SET | 9 | 13168-1058 | 1 | ||
| LEVER,NEUTRAL | 10 | 13236-1004 | 1 | ||
| SCREW-PAN HEAD | 11 | 92011-023 | 1 | ||
| SCREW PAN HEAD 6X12 | 12 | 220B0612 | 1 | ||
| SPRING,CHANGE LEVER | 13 | 92081-1237 | 1 | ||
| PLATE,GEAR CHANGE DRM | 14 | 13169-1201 | 1 | ||
| PLATE,GEAR CHANGE | 14 | 13169-1253 | 1 | E/NO.007909~ |
