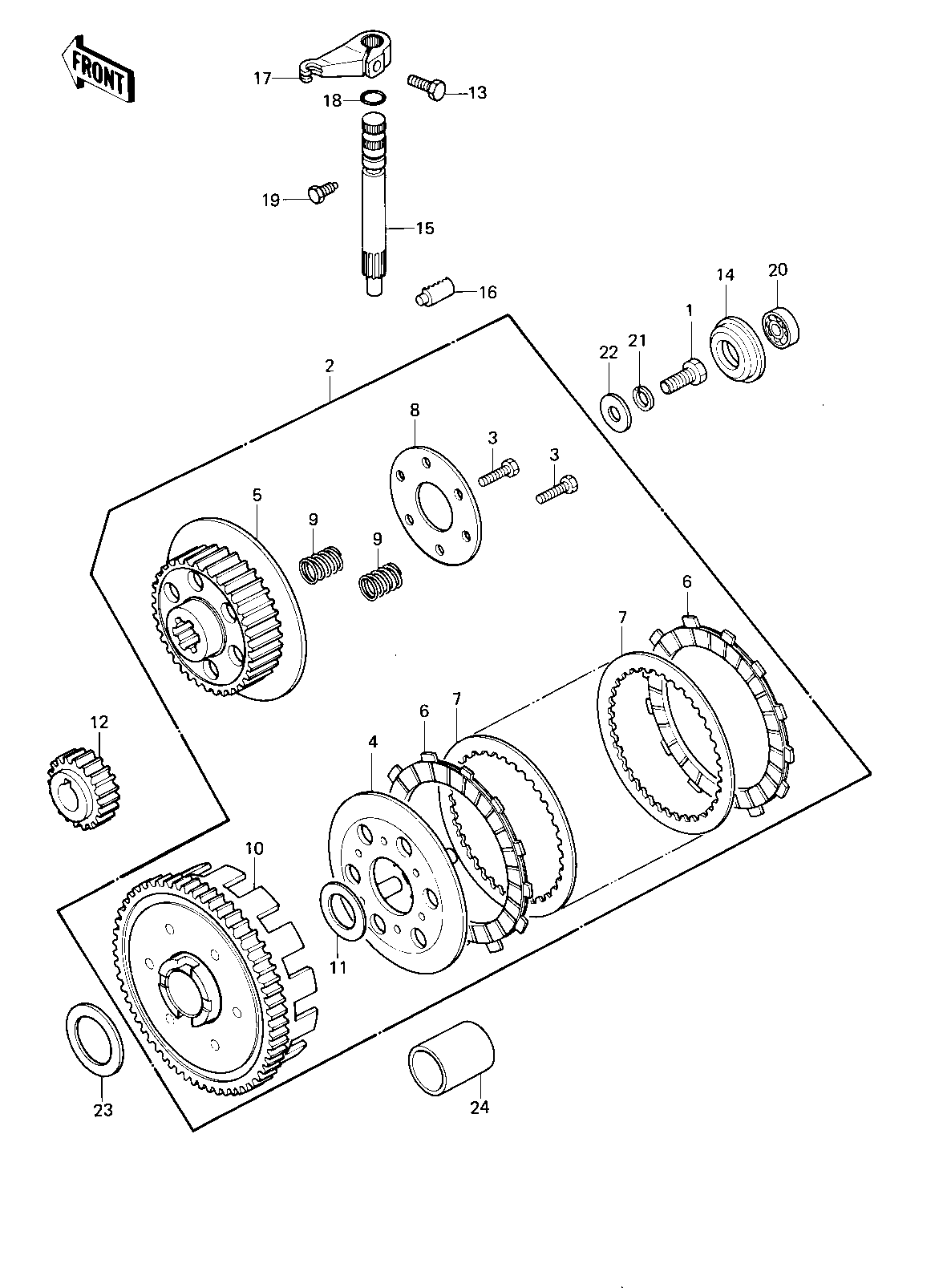

1980 KE175 - CLUTCH ('80-'81 KE175-D2/D3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,HEX HEAD,10X22 | 1 | 113G1022 | 1 | ||
| CLUTCH-ASSY | 2 | 13081-1050 | 1 | ||
| CLUTCH-ASSY | 2 | 13081-1050 | 1 | E/NO.003949~ | |
| BOLT | 3 | 110G0520 | 6 | ||
| WHEEL,CLUTCH | 4 | 13086-017 | 1 | ||
| HUB,CLUTCH | 5 | 13087-041 | 1 | ||
| PLATE-FRICTION | 6 | 13088-1015 | 5 | ||
| PLATE CLUTCH STEEL | 7 | 13089-003 | 4 | ||
| HOLDER,CLUTCH SPRING | 8 | 13091-1017 | 1 | ||
| SPRING,CLUTCH | 9 | 92081-1174 | 6 | ||
| HOUSING-COMP-CLUTCH | 10 | 13095-1024 | 1 | ||
| WASHER-CLUTCH THRUST | 11 | 92022-168 | 1 | ||
| GEAR,PRIMARY,24T | 12 | 13097-1006 | 1 | ||
| BOLT-UPSET | 13 | 112G0618 | 1 | ||
| HOLDER,CLUTCH PUSHER | 14 | 13091-1018 | 1 | ||
| SHAFT,CLUTCH RELEASE | 15 | 13106-1002 | 1 | ||
| PUSHER,CLUTCH | 16 | 13114-1003 | 1 | ||
| LEVER,CLUTCH RELEASE | 17 | 13168-1023 | 1 | ||
| "O" RING,9MM | 18 | 670B1509 | 1 | ||
| BOLT,CLUTCH RELEASE | 19 | 92003-130 | 1 | ||
| BEARING-BALL | 20 | 92045-1211 | 1 | ||
| WASHER SPRING 10MM | 21 | 461F1000 | 1 | ||
| WASHER,10.2X28X2 | 22 | 92022-1088 | 1 | ||
| WASHER-CLUTCH THRUST | 23 | 92022-168 | 1 | ||
| BUSH-CLUTCH | 24 | 92028-014 | 1 |
| BOLT,HEX HEAD,10X22 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLUTCH-ASSY | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLUTCH-ASSY | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO.003949~ |
| BOLT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WHEEL,CLUTCH | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB,CLUTCH | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-FRICTION | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| PLATE CLUTCH STEEL | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH SPRING | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| HOUSING-COMP-CLUTCH | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-CLUTCH THRUST | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,PRIMARY,24T | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH PUSHER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,CLUTCH RELEASE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PUSHER,CLUTCH | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,CLUTCH RELEASE | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,9MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH RELEASE | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 10MM | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.2X28X2 | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-CLUTCH THRUST | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSH-CLUTCH | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
