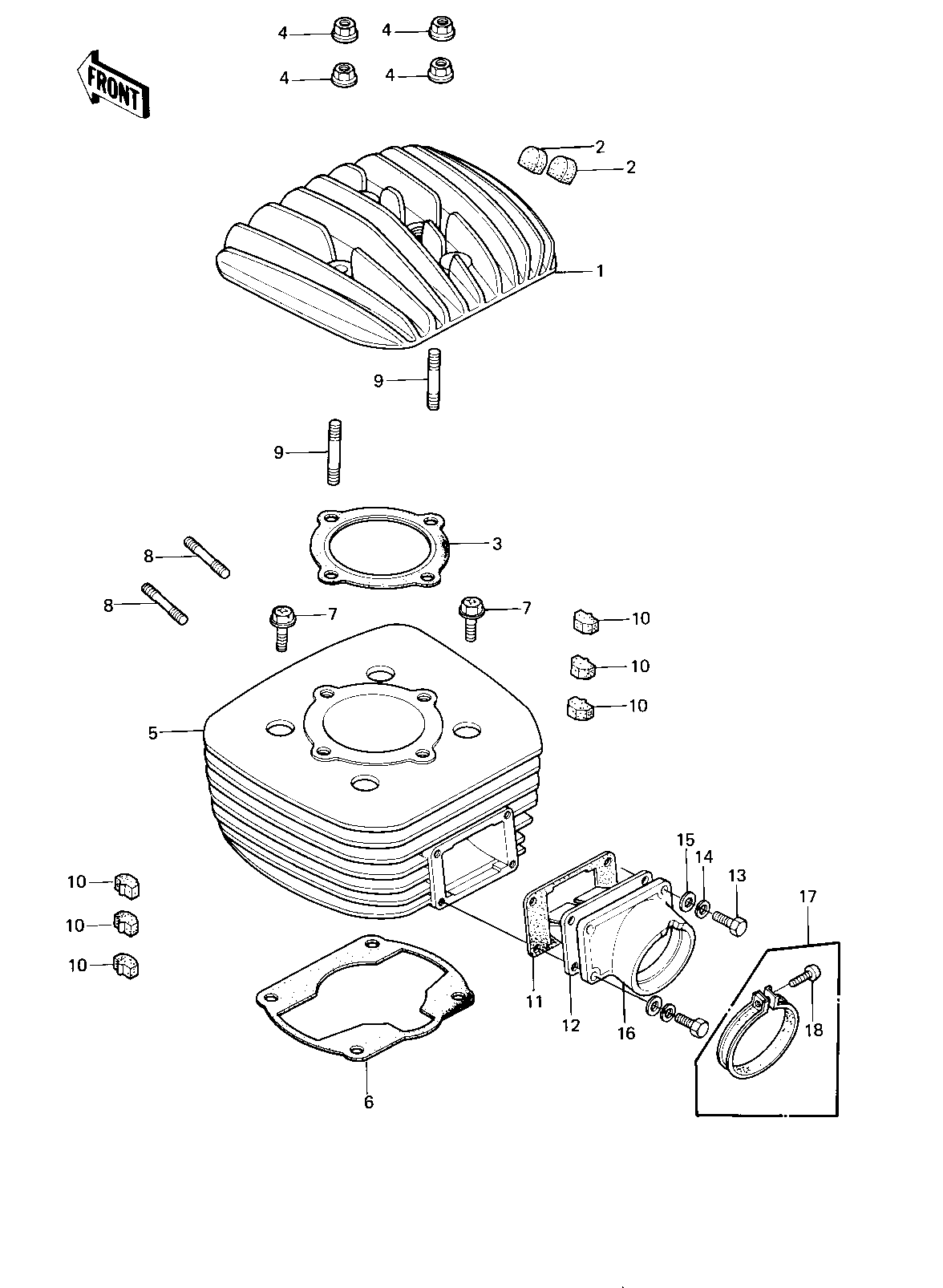

1980 KE175 - CYLINDER HEAD/CYLINDER/REED VALVE ('80-'
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HEAD,CYLINDER | 1 | 11001-1034 | 1 | ||
| DAMPER RUBBER | 2 | 92075-1176 | 14 | ||
| GASKET,CYLINDER HEAD | 3 | 11004-1017 | 1 | ||
| NUT,8M/M | 4 | 92015-1014 | 4 | ||
| CYLINDER | 5 | 11005-1072 | 1 | ||
| GASKET,CYLINDER BASE | 6 | 11009-1060 | 1 | ||
| BOLT,FLANGED,8X70 | 7 | 131G0870 | 4 | ||
| STUD,8X25 | 8 | 92004-1008 | 2 | ||
| STUD,8X35 | 9 | 92004-1009 | 4 | ||
| DAMPER,RUBBER | 10 | 92075-304 | 18 | ||
| GASKET,REED VALVE | 11 | 11009-1109 | 1 | ||
| VALVE ASSY,REED | 12 | 12021-1005 | 1 | ||
| BOLT-UPSET | 13 | 112G0625 | 4 | ||
| WASHER SPRING 6MM | 14 | 461F0600 | 4 | ||
| WASHER PLAIN 6MM | 15 | 411B0600 | 4 | ||
| HOLDER,CARBURETOR | 16 | 16065-1025 | 1 | ||
| CLAMP,HOLDER | 17 | 92037-077 | 1 | ||
| SCREW,PAN HEAD | 18 | 92011-037 | 1 |
| HEAD,CYLINDER | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER HEAD | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8M/M | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CYLINDER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X70 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STUD,8X25 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STUD,8X35 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,RUBBER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| GASKET,REED VALVE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE ASSY,REED | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CARBURETOR | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HOLDER | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,PAN HEAD | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
