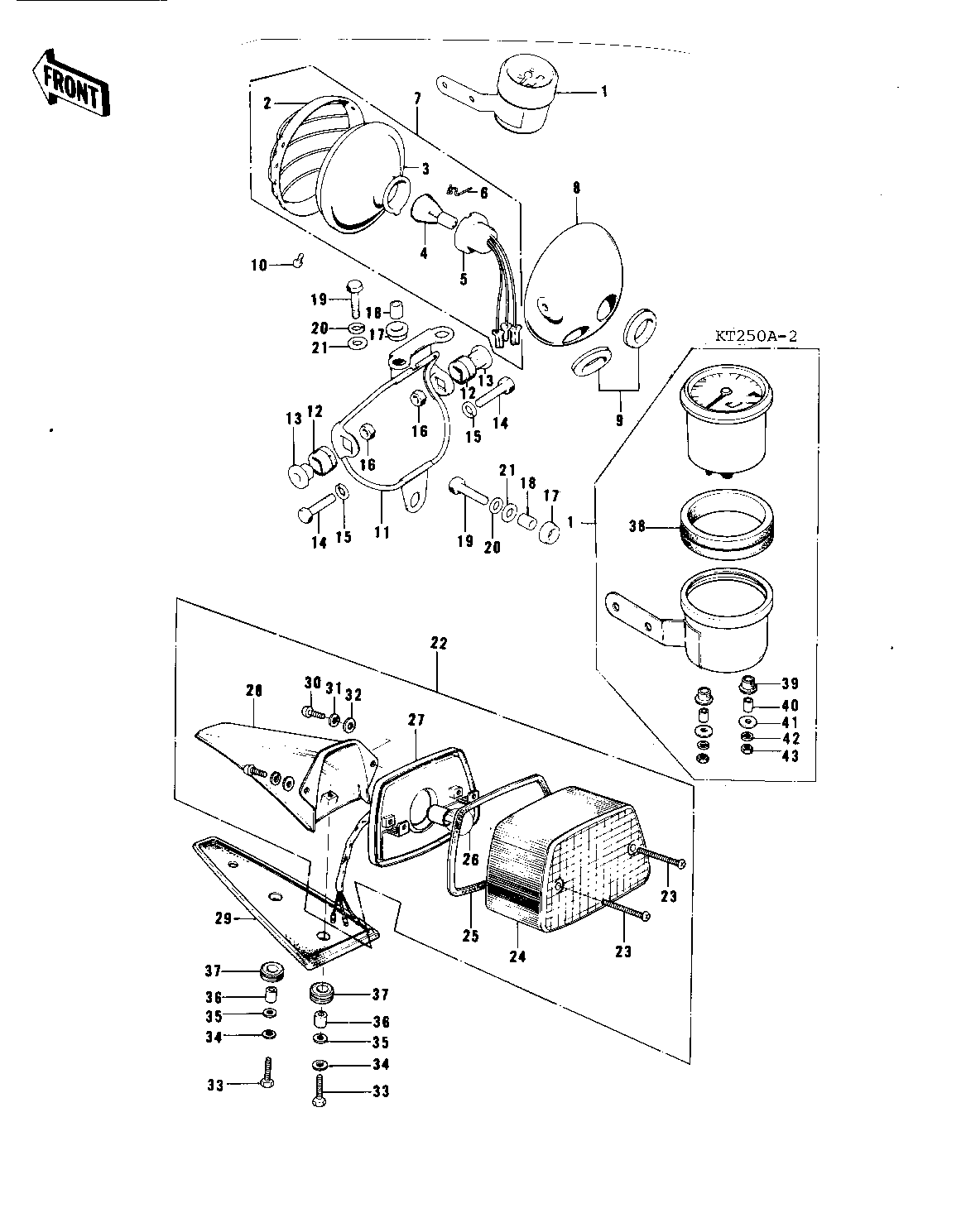

1976 Trial - METER/HEADLIGHT/TAILLIGHT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPEEDOMETER ASSY,MPH 1 25001-085
RIM,HEAD LIGHT 2 23006-047
LENS,HEAD LIGHT 3 23007-063
BULB,6V 35/35W 4 92069-078
SOCKET,HEAD LIGHT 5 23008-039
CLAMP,HEAD LAMP LENS 6 23009-015
LAMP UNIT,HEAD 7 23004-060
BODY,HEAD LIGHT,WHITE 8 23005-021-3G
GROMMET 9 23023-011
SCREW,PAN HEAD,5X14 10 23019-025
BRACKET,HEAD LIGHT 11 23064-020-3G
DAMPER RUBBER 12 23066-017
COLLAR 13 23052-008
BOLT,HEX HEAD,10X30 14 92007-041
WASHER SPRING 10MM 15 461F1000
NUT 10MM 16 92016-027
DAMPER RUBBER,RR FENR 17 92075-209
COLLAR 6.8X10X10.5 18 92027-120
BOLT-UPSET 19 112G0630
WASHER SPRING 6MM 20 461F0600
WASHER 6.5X22X1.6T 21 92022-237
LAMP ASSY,TAIL,WHITE 22 23024-084-3G
LAMP ASSY,TAIL,WHITE 22 23024-084-3G KT250A-2
SCREW-PAN-CROS 23 220E0325
SCREW-PAN-CROS 23 220B0330 KT250A-2
LENS,TAIL LAMP 24 23026-040
LENS,TAIL LAMP 24 23026-040 KT250A-2
GASKET,TAIL LIGHT 25 23028-020
BULB,6V 17/5.3W 26 92069-028
CASE,TAIL LAMP 27 23027-044
CASE,TAIL LAMP 27 23027-044 KT250A-2
BKT,LICENSE PLT,WHITE 28 23036-042-3G
DAMPER RUBBER 29 23066-018
SCREW PAN HEAD 5X10 30 220B0510
WASHER SPRING 5MM 31 461F0500
WASHER PLAIN 5MM 32 411B0500
BOLT-UPSET,6X20 33 112G0620
BOLT-UPSET,6X20 33 112G0620
WASHER SPRING 6MM 34 461F0600
WASHER 6.5X20X1.6T 35 92022-125
COLLAR,6.8X10X8.5 36 92027-129
DAMPER RUBBER 3 92075-263
SHOCK DAMPER,METER 38 25019-022 KT250A-2
DAMPER RUBBER,MET FIT 39 25019-023 KT250A-2
COLLAR,METER FITTING 40 25021-005 KT250A-2
WASHER,PLAIN,6MM 41 92022-263 KT250A-2
WASHER SPRING 4MM 42 461F0400 KT250A-2
NUT,4MM 43 311B0400 KT250A-2
