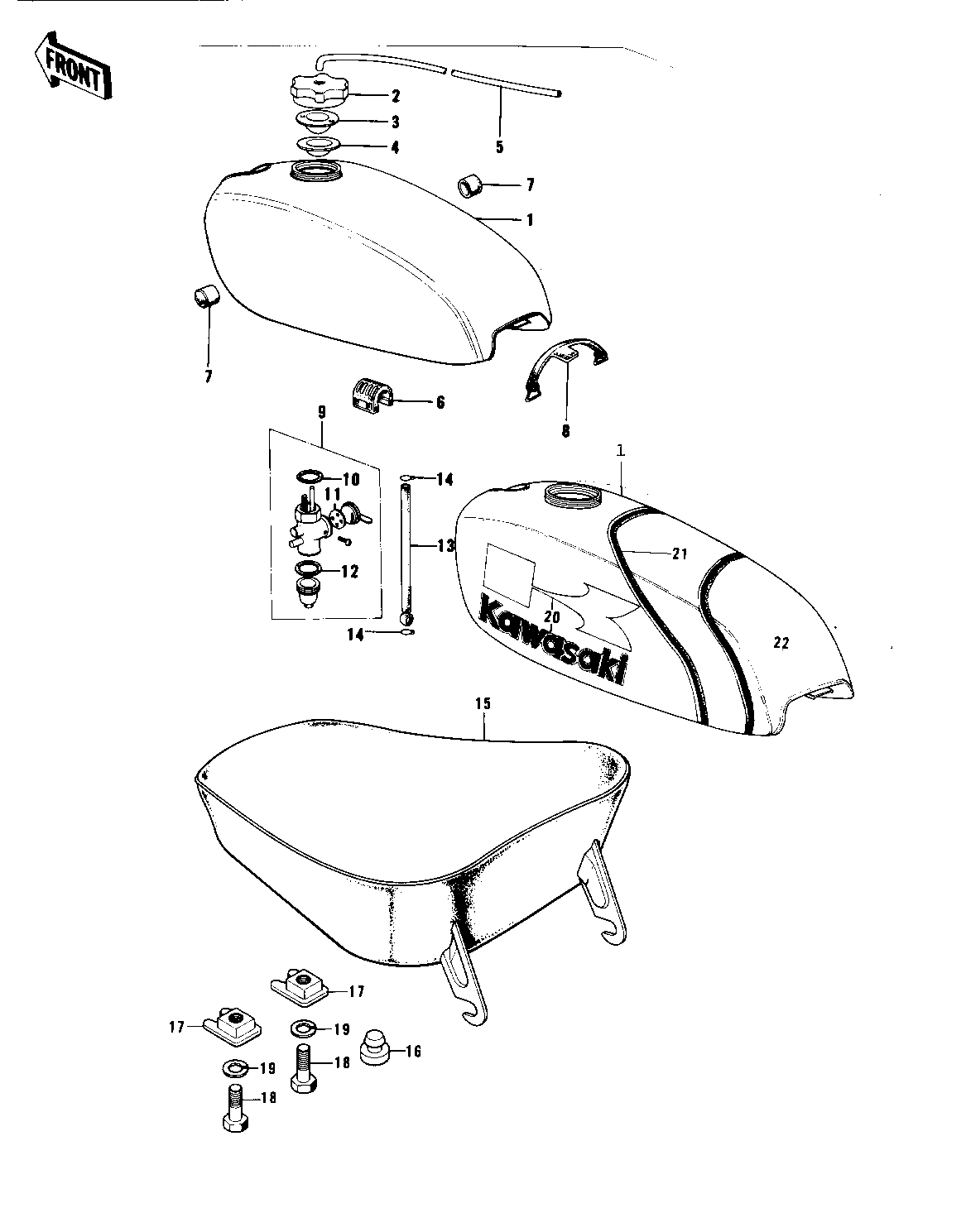

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK-FUEL,L.GREEN | 1 | 51001-103-2G | 1 | ||
| TANK-FUEL,PEARL LIME | 1 | 51001-103-1Y | 1 | KT250A-2 | |
| CAP,FUEL TANK | 2 | 51049-1002 | 1 | ||
| WASHER,FUEL TANK CAP | 3 | 51058-004 | 1 | ||
| GASKET,FUEL TANK CAP | 4 | 51059-012 | 1 | ||
| TUBE-VINYL,5X280 | 5 | 700Q05280 | 1 | ||
| DAMPER RUBBER,FL TNK | 6 | 92075-215 | 1 | ||
| DAMPER RUBBER-FL TANK | 7 | 92075-101 | 2 | ||
| BAND-FUEL TANK | 8 | 92072-036 | 1 | ||
| TAP-ASSY,FUEL | 9 | 51023-1123 | 1 | ||
| GASKET,FUEL TAP JOINT | 10 | 11009-1567 | 1 | ||
| 'O' RING FUEL COCK | 11 | 92065-062 | 1 | ||
| GASKET FUEL COCK CUP | 12 | 51037-008 | 1 | ||
| PIPE-FUEL | 13 | 92059-073 | 1 | ||
| CLAMP-PIPE | 14 | 92037-072 | 2 | ||
| SEAT-ASSY | 15 | 53001-110 | 1 | ||
| DAMPER RUBBER | 16 | 92075-099 | 1 | ||
| PLATE,SEAT | 17 | 53014-004 | 2 | ||
| BOLT HEX HEAD 8X35 | 18 | 110N0835 | 2 | ||
| WASHER SPRING 8MM | 19 | 461F0800 | 2 | ||
| DECAL,FUEL TANK | 20 | 56014-063-SP | 2 | KT250A-2 | |
| DECAL,FUEL TANK | 20 | 56014-063-SP | 2 | KT250A-2 | |
| EMBLEM,FL TNK,FRONT | 21 | 56027-394 | 1 | KT250A-2 | |
| EMBLEM,FL TNK,REAR | 22 | 56027-459 | 1 | KT250A-2 |
| TANK-FUEL,L.GREEN | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-FUEL,PEARL LIME | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KT250A-2 |
| CAP,FUEL TANK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,FUEL TANK CAP | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FUEL TANK CAP | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-VINYL,5X280 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,FL TNK | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER-FL TANK | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND-FUEL TANK | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TAP-ASSY,FUEL | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FUEL TAP JOINT | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 'O' RING FUEL COCK | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET FUEL COCK CUP | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-FUEL | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP-PIPE | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,SEAT | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 8X35 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DECAL,FUEL TANK | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KT250A-2 |
| DECAL,FUEL TANK | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KT250A-2 |
| EMBLEM,FL TNK,FRONT | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KT250A-2 |
| EMBLEM,FL TNK,REAR | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KT250A-2 |
