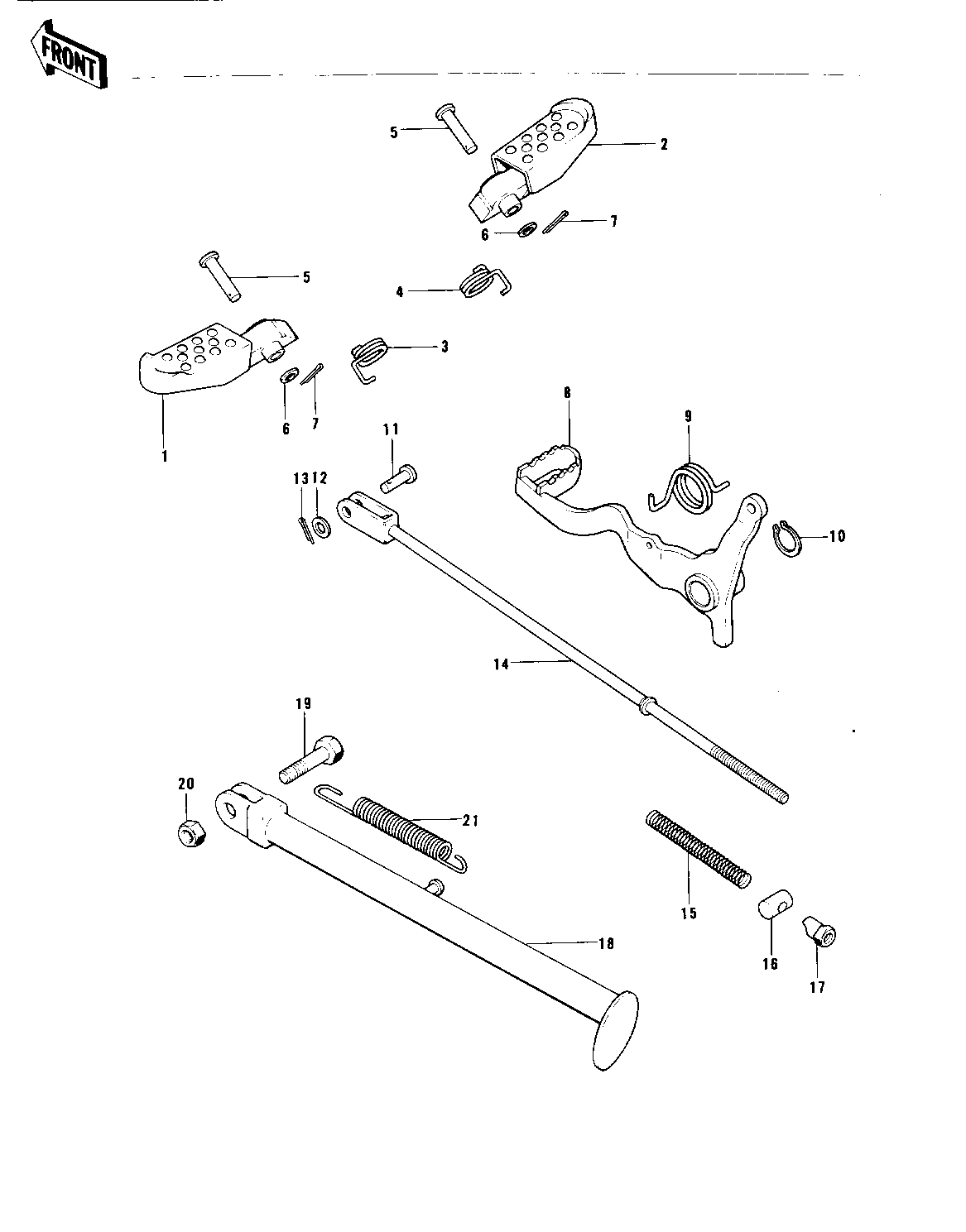

1975 KT250-A - FOOTRESTS/STAND/BRAKE PEDAL
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BAR,L.H FOOTREST | 1 | 34028-027 | 1 | ||
| BAR,R.H FOOTREST | 2 | 34028-028 | 1 | ||
| SPRING,L.H,FOOTREST | 3 | 92081-1254 | 1 | ||
| SPRING,R.H,FOOTREST | 4 | 92081-1255 | 1 | ||
| PIN,FOOTREST BAR FIT | 5 | 92043-115 | 2 | ||
| WASHER PLAIN 8MM | 6 | 410B0800 | 2 | ||
| PIN COTTER 2.5X16 | 7 | 550D2516 | 2 | ||
| PEDAL,BRAKE | 8 | 43001-066 | 1 | ||
| SPRING,BRAKE PEDAL | 9 | 43005-034 | 1 | ||
| CIRCLIP 12MM | 10 | 482K0200 | 1 | ||
| PIN-BRAKE ROD FITTING | 11 | 92043-064 | 1 | ||
| WASHER PLAIN 6MM | 12 | 410B0600 | 1 | ||
| PIN COTTER 2.0X15 | 13 | 550D2015 | 1 | ||
| ROD,REAR BRAKE | 14 | 43011-027 | 1 | ||
| SPRING,BRAKE ROD | 15 | 43012-001 | 1 | ||
| PIN BRAKE | 16 | 92043-039 | 1 | ||
| NUT-BRAKE ROD ADJUST | 17 | 92015-042 | 1 | ||
| STAND-SIDE | 18 | 34024-058 | 1 | ||
| BOLT,HEX HEAD 10X35 | 19 | 92001-1252 | 1 | ||
| NUT,10MM | 20 | 314B1000 | 1 | ||
| SPRING,SIDE STAND | 21 | 34025-008 | 1 |
