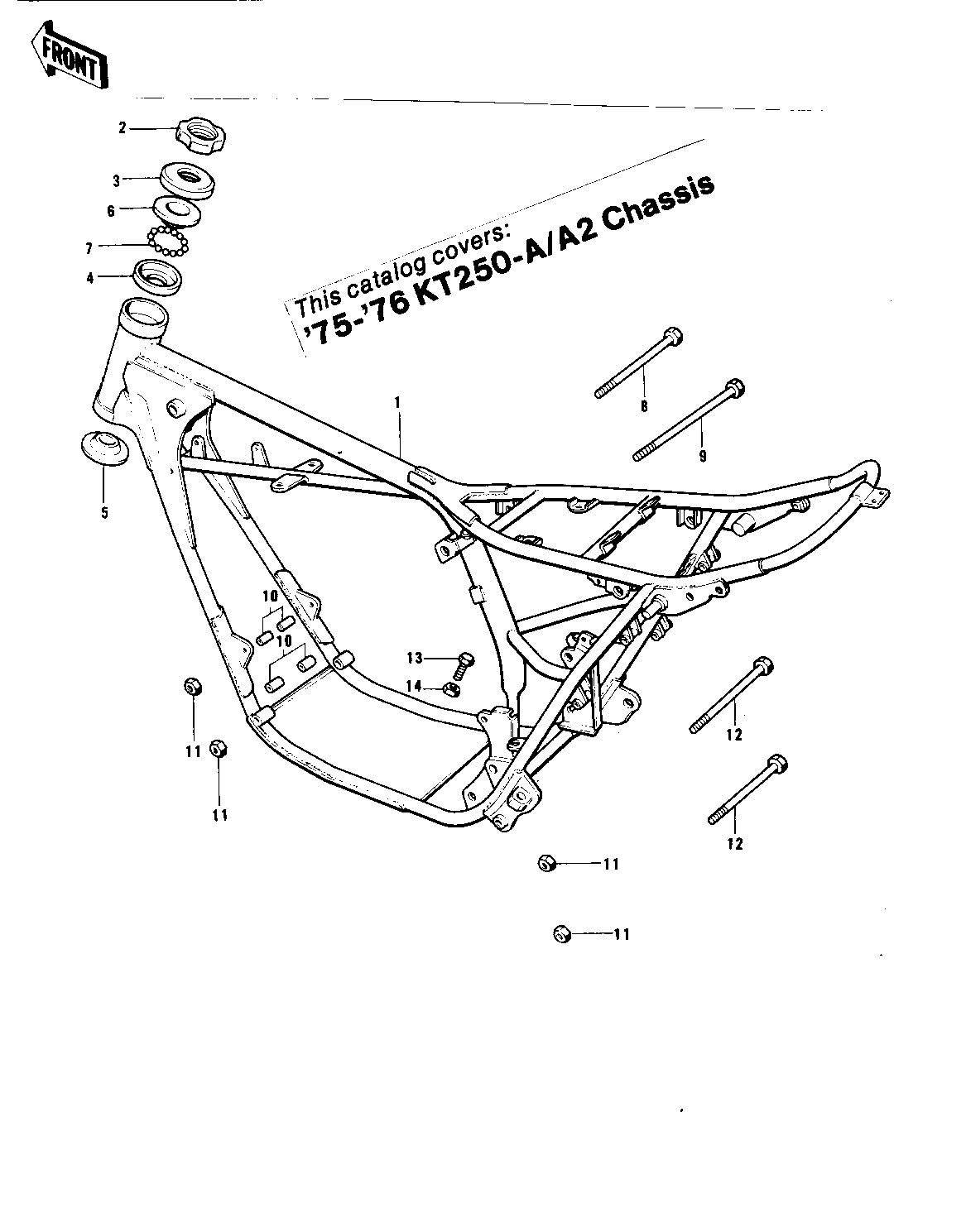

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME | 1 | 32002-108 | 1 | ||
| NUT,STEERING STEM | 2 | 92090-023 | 1 | ||
| CAP,STEERING STEM | 3 | 46098-017 | 1 | ||
| CONE,STEERING STEM | 4 | 92047-018 | 1 | ||
| BEARING,STREERIN STEM | 5 | 92047-016 | 1 | ||
| RACE,STRNG STM BRNG | 6 | 92048-008 | 1 | ||
| BALL STEEL 1/4' | 7 | 600A0800 | 20 | ||
| BOLT,ENG MOUNT,10X138 | 8 | 92003-174 | 1 | ||
| BOLT,ENG MOUNT,10X185 | 9 | 92003-175 | 1 | ||
| COLLAR,ENGINE MOUNT | 10 | 92027-237 | 4 | ||
| NUT,10MM | 11 | 92015-1429 | 4 | ||
| BOLT | 12 | 92003-133 | 2 | ||
| BOLT-UPSET | 13 | 112G0630 | 1 | ||
| BOLT-UPSET | 13 | 112G0630 | AL | ||
| NUT 6MM | 14 | 311B0600 | 1 |
| FRAME | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,STEERING STEM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,STEERING STEM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONE,STEERING STEM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,STREERIN STEM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RACE,STRNG STM BRNG | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 1/4' | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 20 |
| DESTINATION | |
| REMARKS | |
| BOLT,ENG MOUNT,10X138 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,ENG MOUNT,10X185 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,ENGINE MOUNT | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | AL |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
