Parts Diagrams |

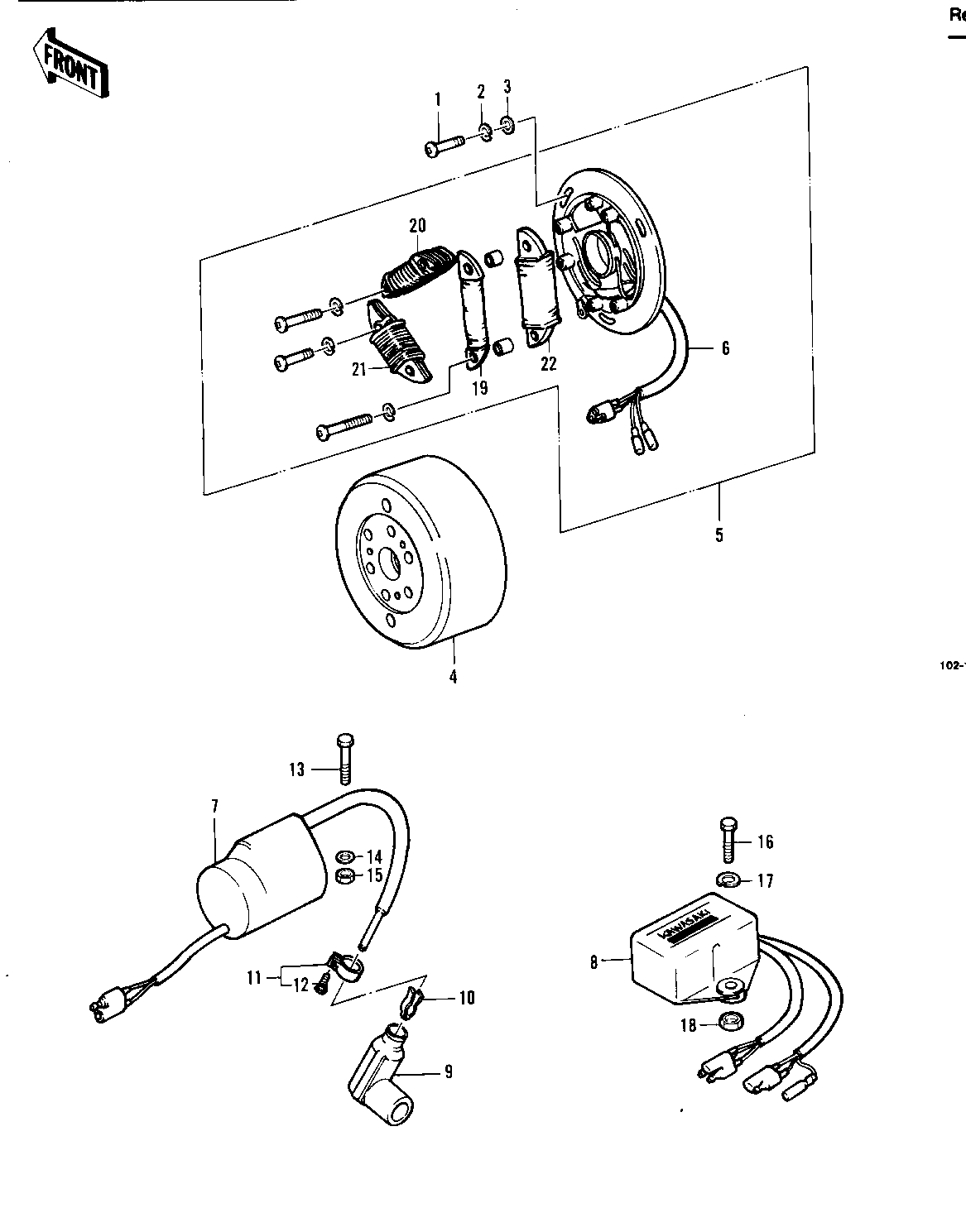

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 214B0516A | 3 | ||
| WASHER SPRING 5MM | 2 | 461F0500 | 3 | ||
| WASHER PLAIN 5MM | 3 | 411B0500 | 3 | ||
| FLYWHEEL,MAGNETO | 4 | 21050-020 | 1 | ||
| STATOR ASSY,MAGNETO | 5 | 21003-030 | 1 | ||
| WIRING HARNESS,MAG | 6 | 21029-033 | 1 | ||
| COIL,IGNITION | 7 | 21121-077 | 1 | ||
| IGNITION UNIT | 8 | 21119-023 | 1 | ||
| CAP,SPARK PLUG | 9 | 21130-1006 | 1 | ||
| TERMINAL,PLUG CAP | 10 | 21169-001 | 1 | ||
| CLAMP,SPARK PLUG CAP | 11 | 92037-1173 | 1 | ||
| SCREW-PAN-CROS | 12 | 220B0310 | 1 | ||
| BOLT, HEX HEAD 5X22 | 13 | 110B0522A | 2 | ||
| WASHER PLAIN 5MM | 14 | 411B0500 | 2 | ||
| NUT,5MM | 15 | 311B0500 | 2 | ||
| BOLT-UPSET | 16 | 112G0618 | 2 | ||
| WASHER SPRING 6MM | 17 | 461F0600 | 2 | ||
| NUT 6MM | 18 | 311B0600 | 2 | ||
| COIL,PULSER | 19 | 21047-033 | 1 | ||
| COIL,LIGHTING | 20 | 21047-034 | 1 | ||
| COIL,CHARGE | 21 | 21047-035 | 1 | ||
| COIL | 22 | 21049-019 | 1 |
