Parts Diagrams |

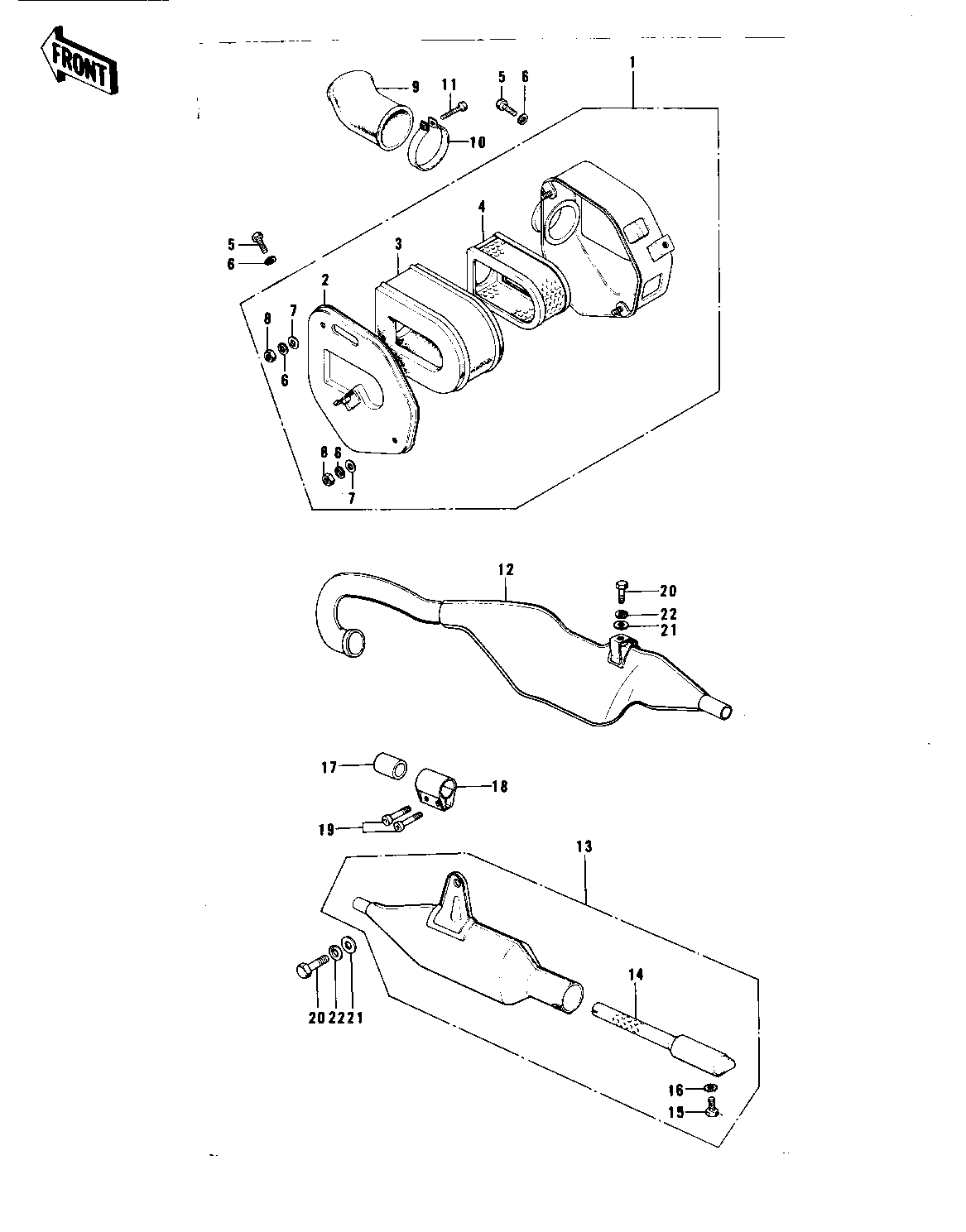

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AIR CLEANER ASSY | 1 | 11010-092 | 1 | ||
| CAP,AIR CLEANER BODY | 2 | 11012-055 | 1 | ||
| ELEMENT AIR CLEANER | 3 | 11013-049 | 1 | ||
| WIRE NET,AIR CLEANER | 4 | 11014-013 | 1 | ||
| BOLT-UPSET,6X12 | 5 | 112G0612 | 2 | ||
| WASHER SPRING 6MM | 6 | 461F0600 | 4 | ||
| WASHER PLAIN 6MM | 7 | 411B0600 | 2 | ||
| NUT 6MM | 8 | 311B0600 | 2 | ||
| CONNECTOR,AIR CLEANER | 9 | 11026-013 | 1 | ||
| CLAMP-INLET PIPE | 10 | 92037-061 | 2 | ||
| SCREW-PAN-CROS | 11 | 220B0535 | 2 | ||
| MUFFLER ASSY,F.BLACK | 12 | 18001-152-21 | 1 | ||
| SPARK ARRESTOR ASSY | 13 | 18078-001-21 | 1 | ||
| BAFFLE TUBE | 14 | 18033-089 | 1 | ||
| BOLT-UPSET,6X12 | 15 | 112G0612 | 1 | ||
| BOLT-UPSET,6X12 | 15 | 112G0612 | AL | ||
| WASHER LOCK 6MM | 16 | 463H0600 | 1 | ||
| CONNECTOR,MUFFLER | 17 | 18043-014 | 1 | ||
| HOLDER,MUFFLER | 18 | 18044-015 | 1 | ||
| SCREW PAN HEAD 6X16 | 19 | 220B0616 | 2 | ||
| BOLT,10X18 | 20 | 110B1018 | 2 | ||
| BOLT,HEX HEAD,10X18 | 20 | 113G1018 | 2 | KT250A-2 | |
| WASHER PLAIN 10MM | 21 | 410B1000 | 2 | ||
| WASHER SPRING 10MM | 22 | 461F1000 | 2 |
