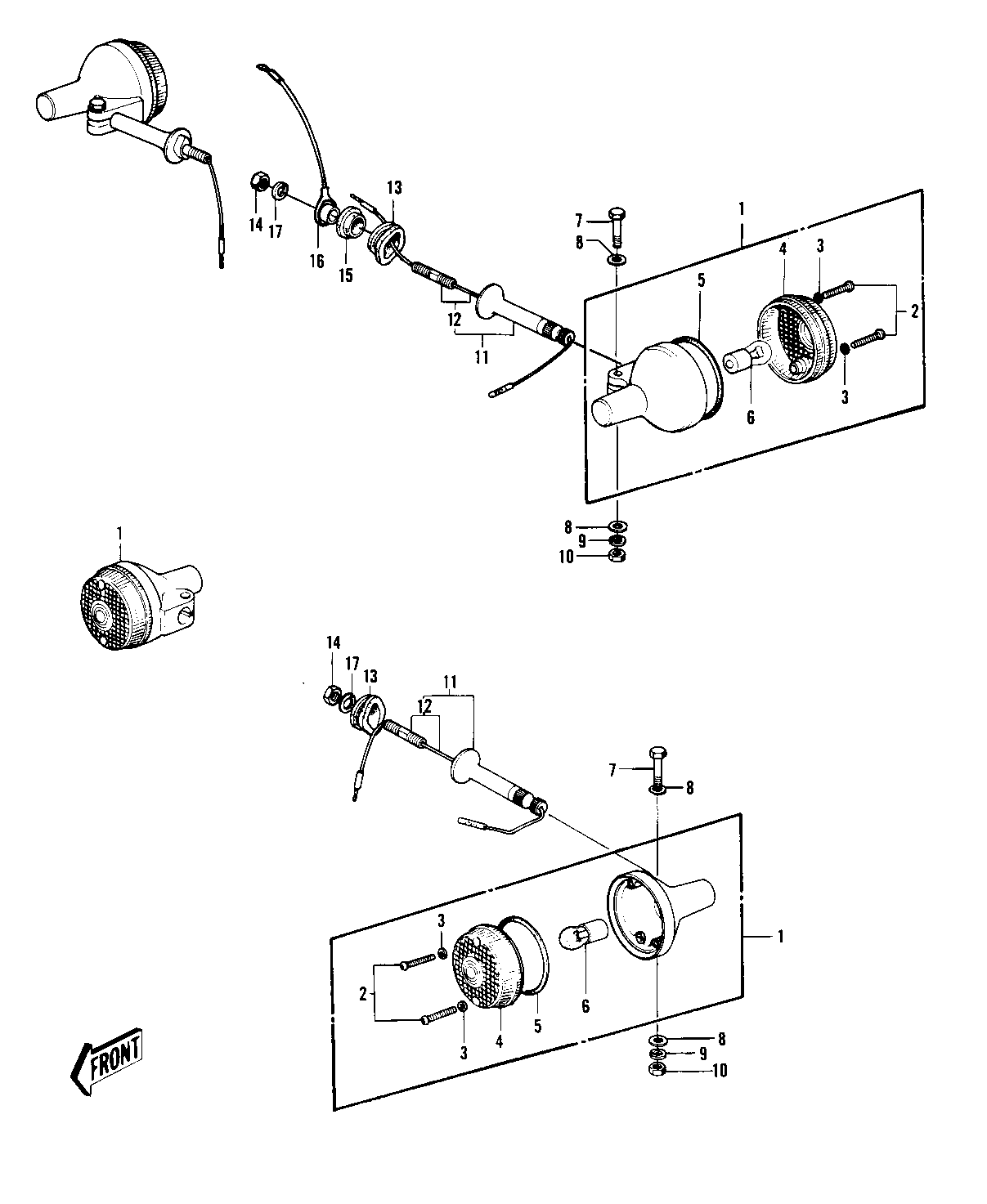

1975 H1-F - TURN SIGNALS ('73-'75 D/E/F & '76 A8)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP ASSY-TURN SIGNAL 1 23040-037 4
SCREW-PAN HEAD,4X20 2 220E0420A 8
WASHER-PLAIN,4MM 3 23058-002 8
LENS,TURN SIGNAL LAMP 4 23048-1001 4
GASKET-SIG LAMP LENS 5 23050-003 4
BULB 12V 32CP 6 92069-055 4
BOLT-UPSET 7 112G0630 4
WASHER-PLAIN,6MM 8 411D0600 8
WASHER SPRING 6MM 9 461F0600 4
NUT,6MM 10 311N0600 4
BRACKET-TURN SIG LAMP 11 23078-001 4
BOLT SET-SIG LAMP BKT 12 23073-001 4
DAMPER RUBBER 13 92075-128 4
NUT 10MM 14 315B1000 4
DAMPER RUBBER,SIG LM 15 92075-158 2
COLLAR 16 23076-003 2
WASHER SPRING 10MM 17 461F1000 2
