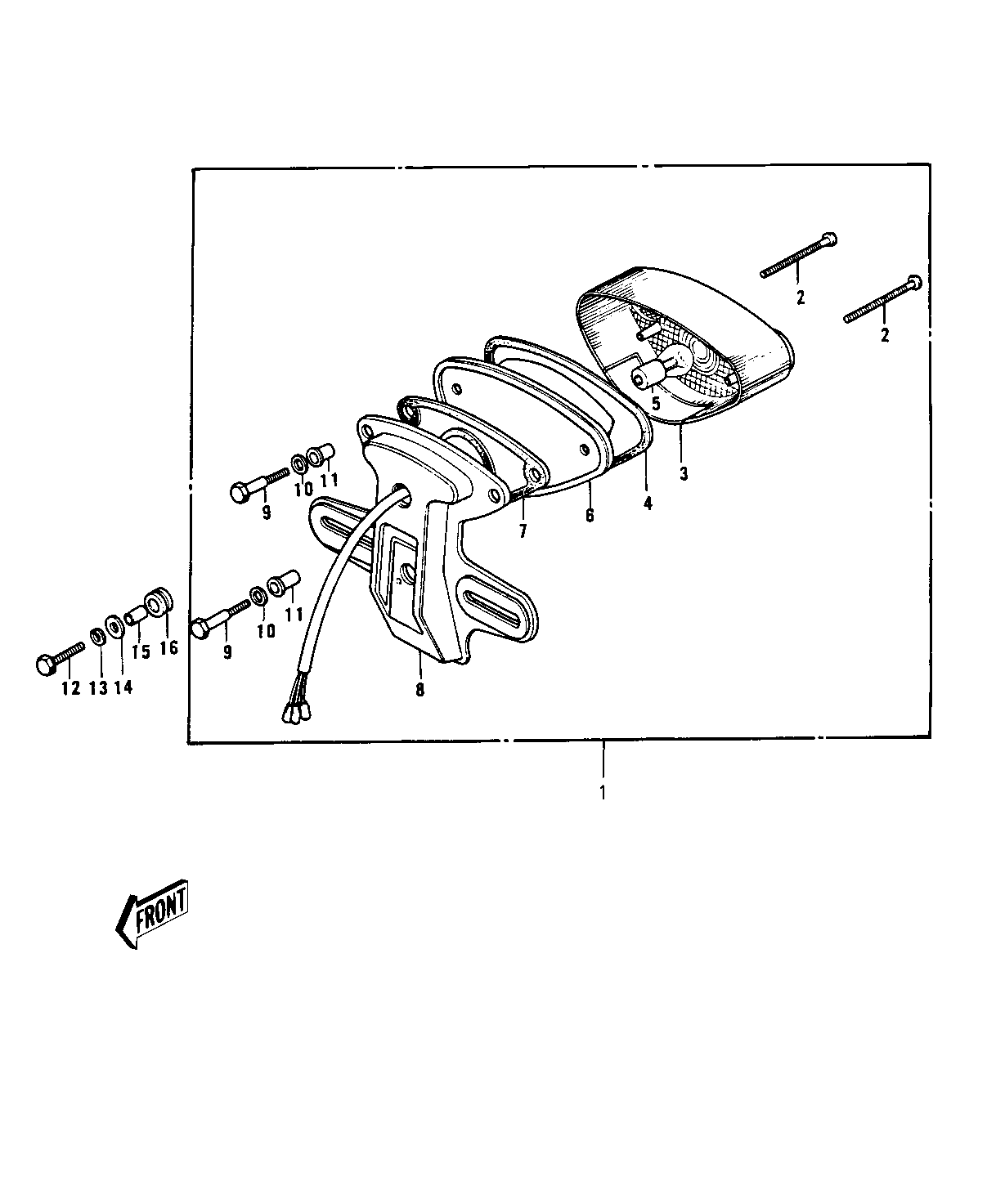

1975 H1-F - TAILLIGHT ('73-'75 D/E/F & '76 A8)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LAMP ASY,TAIL,BLACK | 1 | 23024-027-21 | 1 | ||
| SCREW | 2 | 220R0455 | 4 | ||
| LENS-TAIL LAMP | 3 | 23026-022 | 1 | ||
| GASKET-TAIL LAMP LENS | 4 | 23028-016 | 1 | ||
| BULB,12V 32/3CP | 5 | 92069-059 | 1 | ||
| CASE-TAIL LAMP | 6 | 23027-029 | 1 | ||
| GASKET-TAIL LAMP CASE | 7 | 23028-015 | 1 | ||
| BKT,LICENSE PLT,BLACK | 8 | 23036-020-21 | 1 | ||
| BOLT | 9 | 92001-105 | 2 | ||
| WASHER,8.5X20X1.6 | 10 | 92022-1561 | 2 | ||
| DAMPER RUBBER | 11 | 92075-091 | 2 | ||
| BOLT 6X22 | 12 | 112B0622 | 3 | ||
| WASHER SPRING 6MM | 13 | 461F0600 | 3 | ||
| WASHER 6.5X20X1.6T | 14 | 92022-125 | 3 | ||
| COLLAR 6.8X10X10.5 | 15 | 92027-120 | 3 | ||
| DAMPER RUBBER | 16 | 92075-112 | 3 |
| LAMP ASY,TAIL,BLACK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| LENS-TAIL LAMP | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-TAIL LAMP LENS | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 32/3CP | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-TAIL LAMP | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-TAIL LAMP CASE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BKT,LICENSE PLT,BLACK | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X20X1.6 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT 6X22 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR 6.8X10X10.5 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
