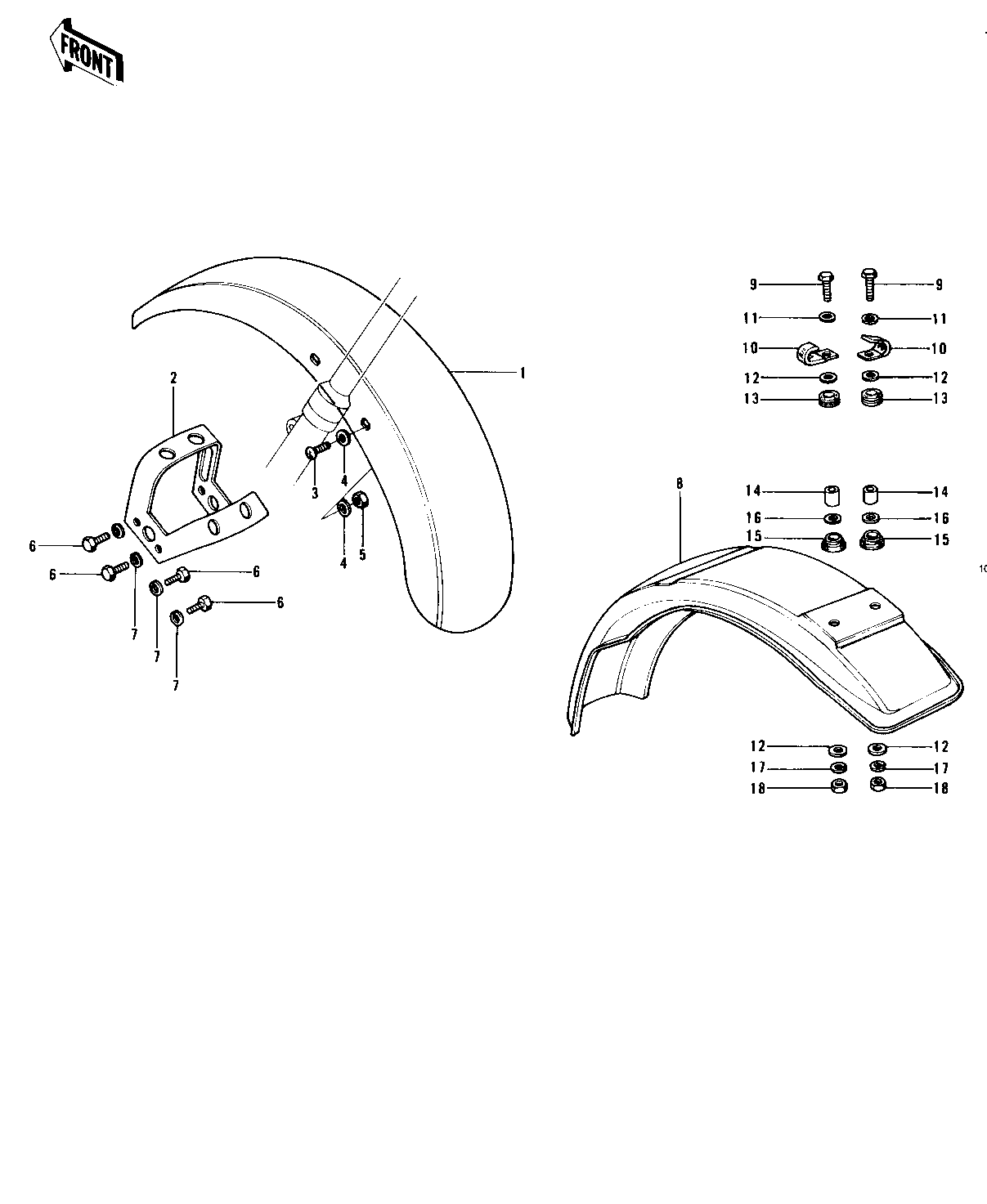

1975 H1-F - FENDERS ('73-'75 D/E/F & '76 A8)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-FR | 1 | 35004-076 | 1 | H1-D | |
| FENDER-FR | 1 | 35004-085 | 1 | H1-E/F,KH500-A8 | |
| BRACE-FRONT FENDER | 2 | 35009-025 | 1 | H1-D | |
| BRACE,FRONT FENDER | 2 | 35009-029 | 1 | H1-E/F,KH500-A8 | |
| SCREW PAN HEAD 6X14 | 3 | 220E0614 | 4 | ||
| WASHER PLAIN 6MM | 4 | 411B0600 | 8 | ||
| NUT | 5 | 92019-008 | 4 | ||
| BOLT-SMALL-UPSET,8X16 | 6 | 115G0816 | 4 | ||
| WASHER SPRING 8MM | 7 | 461F0800 | 4 | ||
| FENDER-RR | 8 | 35022-076 | 1 | ||
| BOLT-HEX HEAD,6X32 | 9 | 110N0632 | 2 | ||
| CLAMP,HARNESS | 10 | 92037-113 | 2 | H1-E/F,KH500-A8 | |
| WASHER PLAIN 6MM | 11 | 411B0600 | 2 | H1-E/F,KH500-A8 | |
| WASHER,PLAIN,7MM | 12 | 92022-228 | 2 | ||
| DAMPER RUBBER,RR FEND | 13 | 92075-121 | 2 | ||
| COLLAR,REAR FENDER | 14 | 92027-162 | 2 | ||
| DAMPER RUBBER,RR FEND | 15 | 92075-133 | 2 | ||
| WASHER,PLAIN,7MM | 16 | 92022-227 | 2 | ||
| WASHER SPRING 6MM | 17 | 461F0600 | 2 | ||
| NUT 6MM | 18 | 311B0600 | 2 |
| FENDER-FR | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-D |
| FENDER-FR | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-E/F,KH500-A8 |
| BRACE-FRONT FENDER | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-D |
| BRACE,FRONT FENDER | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-E/F,KH500-A8 |
| SCREW PAN HEAD 6X14 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET,8X16 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| FENDER-RR | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-HEX HEAD,6X32 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HARNESS | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | H1-E/F,KH500-A8 |
| WASHER PLAIN 6MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | H1-E/F,KH500-A8 |
| WASHER,PLAIN,7MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,RR FEND | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR FENDER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,RR FEND | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,7MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
