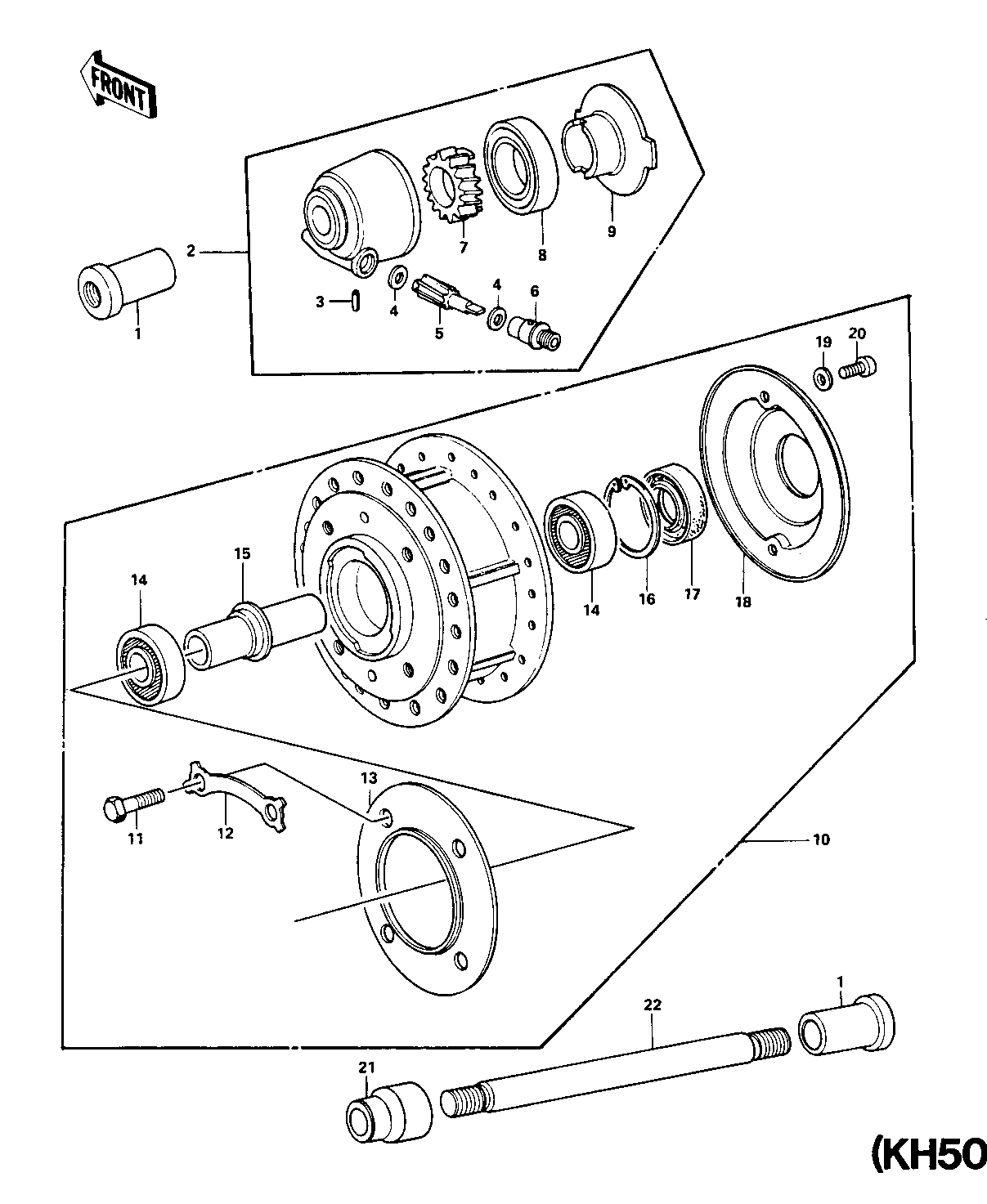

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COLLAR,FRONT AXLE | 1 | 41069-033 | 2 | ||
| GEAR BOX ASSY | 2 | 41078-008 | 1 | ||
| PIN,SPRING | 3 | 41082-001 | 1 | ||
| WASHER THRST SPD PINI | 4 | 41063-001 | 2 | ||
| PINION,SPEEDOMETER | 5 | 41060-017 | 1 | ||
| BUSH,SPEEDMETER CABLE | 6 | 41062-005 | 1 | ||
| GEAR,SPEEDOMETER | 7 | 41059-026 | 1 | ||
| OIL SEAL,BJN30427-C3 | 8 | 92049-1057 | 1 | ||
| RECEIVER,GEAR | 9 | 41064-013 | 1 | ||
| DRUM-ASSY,FR BRK | 10 | 41034-041 | 1 | ||
| BOLT | 11 | 92001-158 | 4 | ||
| WASHER,LOCK | 12 | 92088-023 | 2 | ||
| DUST COVER | 13 | 41042-014 | 1 | ||
| BEARING BALL #6203 | 14 | 601B6203 | 2 | ||
| COLLAR,BRG | 15 | 41039-028 | 1 | ||
| RING, SNAP,43.5M/M | 16 | 92033-1040 | 1 | ||
| OIL SEAL | 17 | 654A254008 | 1 | ||
| DUST COVER | 18 | 41042-016 | 1 | ||
| WASHER PLAIN 5MM | 19 | 410B0500 | 2 | ||
| SCREW PAN HEAD 5X12 | 20 | 220B0512 | 2 | ||
| COLLAR,FRONT AXLE | 21 | 41069-032 | 1 | ||
| AXLE,FRONT | 22 | 41068-049 | 1 |
