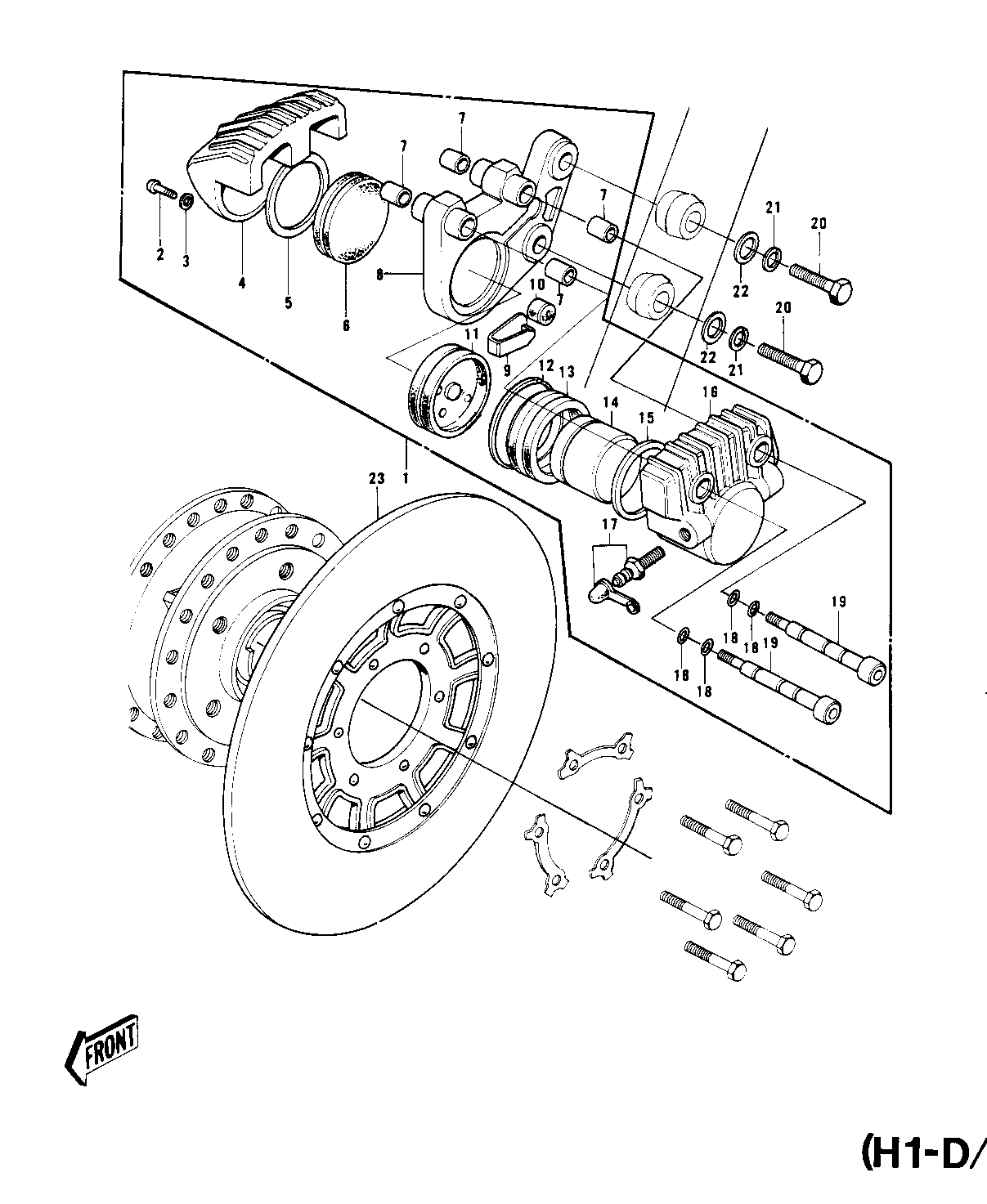

1975 H1-F - FRONT BRAKE (H1-D/E/F)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CALIPER ASSY 1 43041-001 1
SCREW PAN HEAD 6X12 2 220B0612 1
WASHER SPRING 6MM 3 461F0600 1
CALIPER B 4 43043-001 1
RING-PAD B 5 43071-001 1
PAD B 6 43051-001 1
DUST SEAL-SHAFT 7 43052-001 4
HOLDER-CALIPER 8 43044-001 1
STOPPER-PAD A 9 43046-001 1
BUSHING-RUBBER 10 43047-001 1
PAD A 11 43082-001 1
BAND-DUST SEAL 12 43058-001 1
DUST SEAL-PISTON 13 43054-001 1
PISTON-CALIPER 14 43048-001 1
RING-PISTON 15 43049-001 1
CALIPER A 16 43042-001 1
BLEEDER SET 17 43085-001 1
"0" RING,SHAFT 18 43053-001 4
SHAFT 19 43045-001 2
BOLT-HEX HEAD,10X43 20 43070-001 2
WASHER SPRING 10MM 21 461F1000 2
WASHER PLAIN 10MM 22 411B1000 2
DISC PLATE-FRONT BRK 23 41080-001 1
REPAIR SET-CALIPER 23 43073-002 1
