Parts Diagrams |

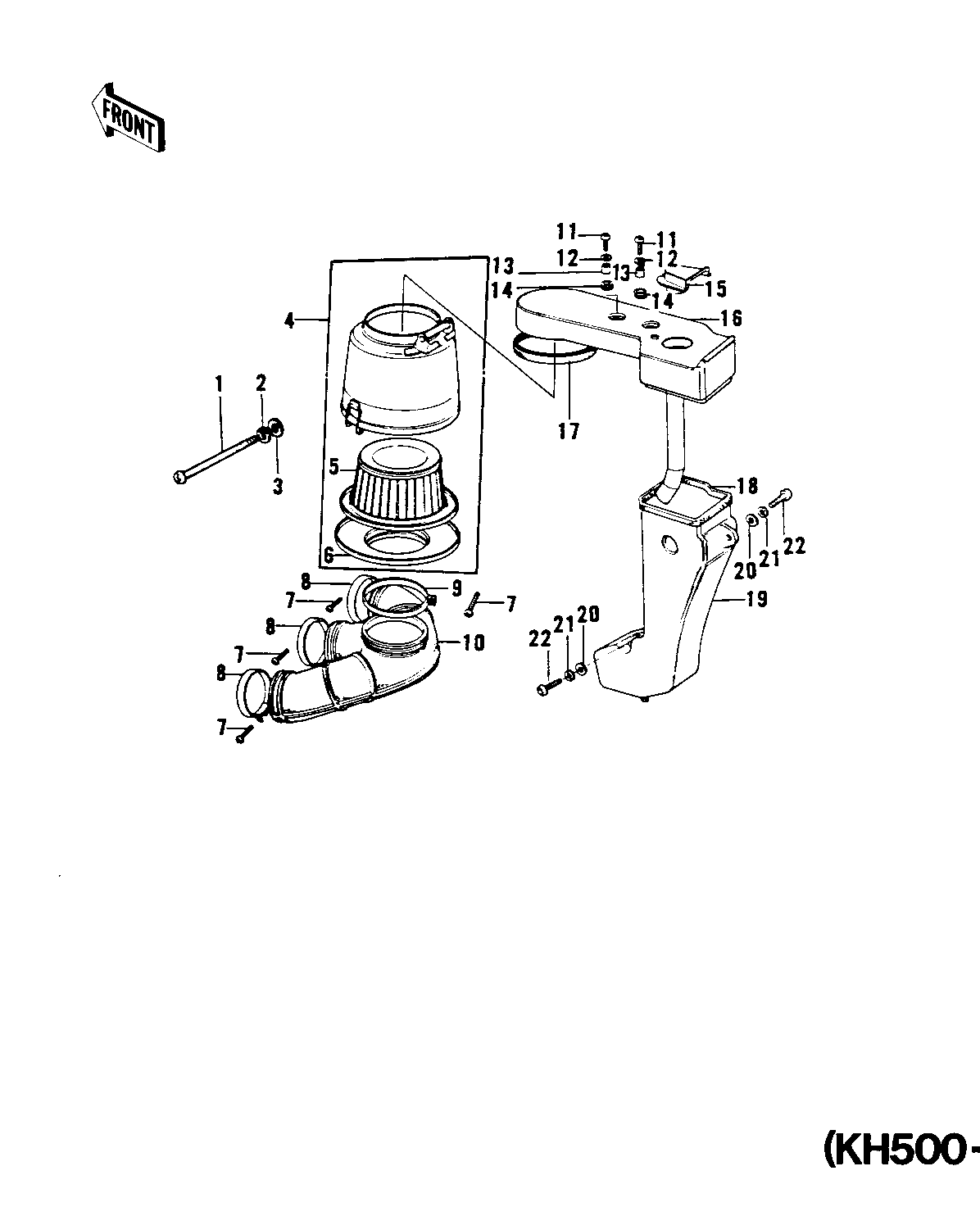

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW PAN HEAD 6X110 | 1 | 220B06110 | 1 | ||
| WASHER SPRING 6MM | 2 | 461F0600 | 1 | ||
| WASHER PLAIN 6MM | 3 | 410B0600 | 1 | ||
| AIR CLEANER ASSY | 4 | 11010-097 | 1 | ||
| ELEMENT,AIR CLNR | 5 | 11013-057 | 1 | ||
| CAP AIR CLEANER | 6 | 11012-011 | 1 | ||
| SCREW-PAN-CROS,6X35,B | 7 | 220C0635 | 4 | ||
| CLAMP | 8 | 92037-1326 | 3 | ||
| CLAMP | 9 | 92037-1326 | 3 | ||
| PIPE ASSY-INLET | 10 | 11015-033 | 1 | ||
| SCREW PAN HEAD 6X45 | 11 | 220B0645 | 2 | ||
| WASHER 6.5X20X1.6T | 12 | 92022-125 | 2 | ||
| COLLAR-SILENCER | 13 | 92027-149 | 2 | ||
| DAMPER RUBBER | 14 | 92075-118 | 2 | ||
| CAP,AIR CLEANER | 15 | 11012-062 | 1 | ||
| SILENCER,AIR CLEANER | 16 | 11012-061 | 1 | ||
| GASKET,SILENCER | 17 | 11017-009 | 1 | ||
| GASKET,CLEANER BODY | 18 | 11017-013 | 1 | ||
| BODY,AIR CLEANER | 19 | 11011-056 | 2 | ||
| WASHER PLAIN | 20 | 92022-024 | 2 | ||
| WASHER SPRING 6MM | 21 | 461F0600 | 2 | ||
| BOLT-UPSET,6X16 | 22 | 112G0616 | 2 |
| SCREW PAN HEAD 6X110 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AIR CLEANER ASSY | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP AIR CLEANER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X35,B | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PIPE ASSY-INLET | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X45 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR-SILENCER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR CLEANER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SILENCER,AIR CLEANER | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,SILENCER | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CLEANER BODY | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY,AIR CLEANER | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X16 | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
