Parts Diagrams |

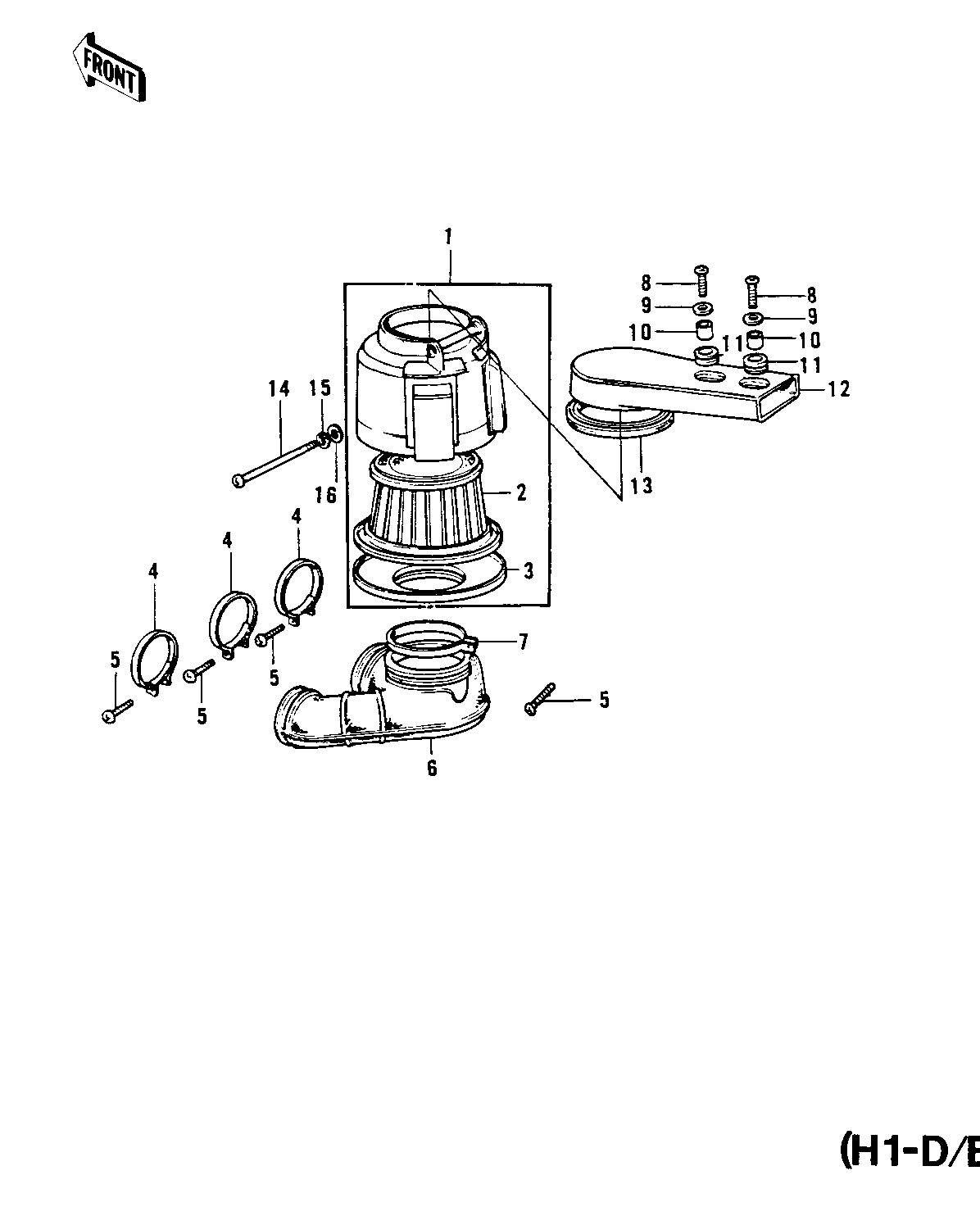

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AIR CLEANER ASY,BLACK | 1 | 11010-065-10 | 1 | H1-D/E | |
| AIR CLEANER ASY,BLACK | 1 | 11010-091-21 | 1 | H1-F | |
| ELEMENT,AIR CLNR | 2 | 11013-019 | 1 | ||
| CAP AIR CLEANER | 3 | 11012-011 | 1 | ||
| CLAMP | 4 | 92037-1326 | 3 | ||
| SCREW PAN HEAD 6X35 | 5 | 220B0635 | 4 | H1-D | |
| SCREW-PAN-CROS,6X35,B | 5 | 220C0635 | 4 | H1-E/F | |
| PIPE ASSY-INLET | 6 | 11015-033 | 1 | ||
| CLAMP,AIR CLEANER | 7 | 92037-128 | 1 | ||
| SCREW PAN HEAD 6X45 | 8 | 220B0645 | 2 | ||
| WASHER 6.5X20X1.6T | 9 | 92022-125 | 2 | ||
| COLLAR-SILENCER | 10 | 92027-149 | 2 | ||
| DAMPER RUBBER | 11 | 92075-118 | 2 | ||
| SILENCER | 12 | 11016-006 | 1 | ||
| GASKET,SILENCER | 13 | 11017-009 | 1 | ||
| SCREW PAN HEAD 6X110 | 14 | 220B06110 | 1 | ||
| WASHER SPRING 6MM | 15 | 461F0600 | 1 | ||
| WASHER PLAIN 6MM | 16 | 411B0600 | 1 |
| AIR CLEANER ASY,BLACK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-D/E |
| AIR CLEANER ASY,BLACK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-F |
| ELEMENT,AIR CLNR | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP AIR CLEANER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X35 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | H1-D |
| SCREW-PAN-CROS,6X35,B | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | H1-E/F |
| PIPE ASSY-INLET | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,AIR CLEANER | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X45 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR-SILENCER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SILENCER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,SILENCER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X110 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
