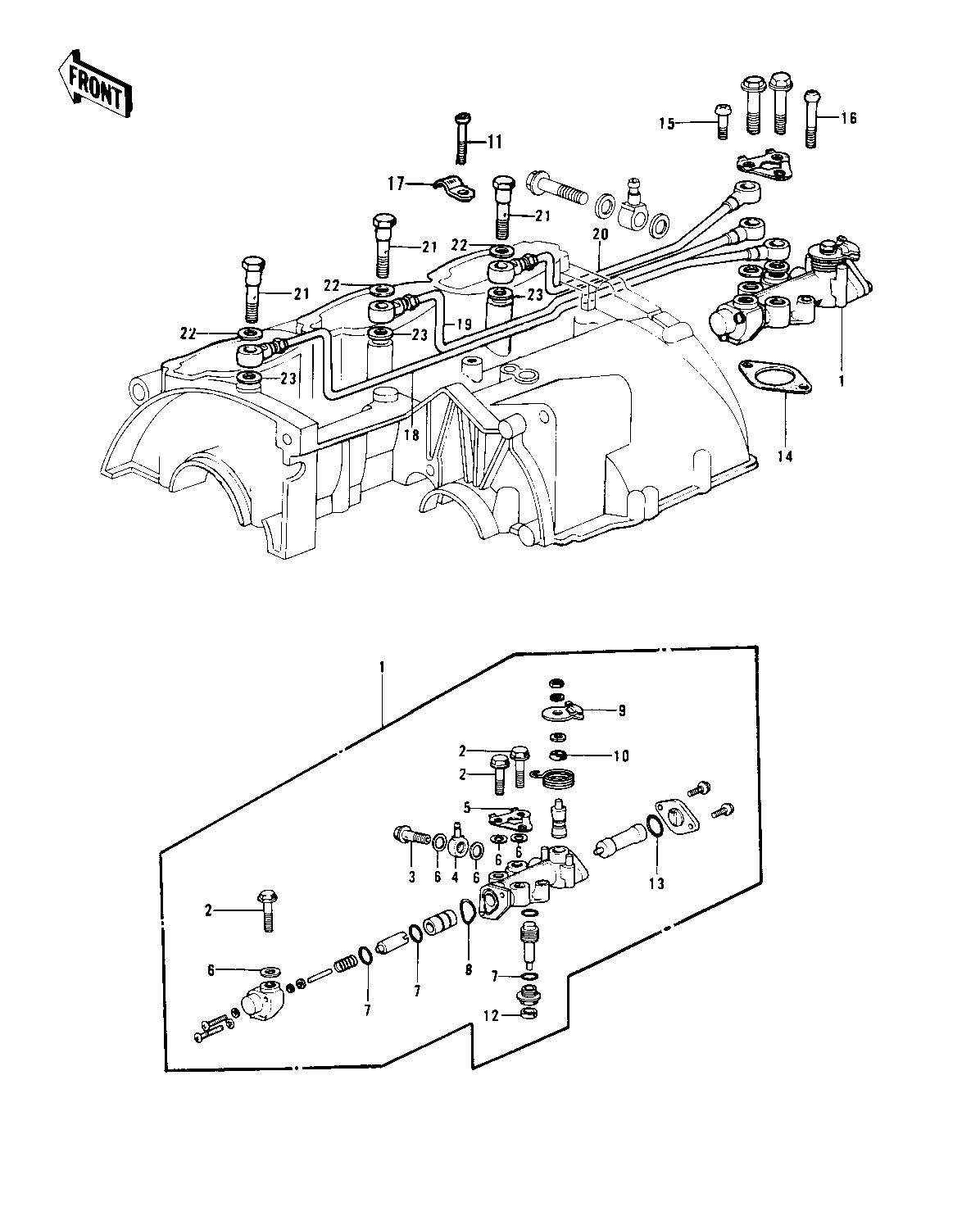

1975 H1-F - OIL PUMP ('73-'75 D/E/F & '76 A8)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| OIL PUMP ASSY | 1 | 16082-040 | 1 | ||
| BOLT BANJO | 2 | 92060-008 | 3 | ||
| BOLT BANJO | 3 | 92060-009 | 1 | ||
| CONNECTOR BANJO | 4 | 92061-015 | 1 | ||
| WASHER,OIL PUMP LOCK | 5 | 92024-058 | 1 | ||
| WASHER OIL PUMP BANJO | 6 | 92022-077 | 5 | ||
| "0" RING,OIL PUMP SHT | 7 | 16090-002 | 3 | ||
| "0" RING,UPPER CAP | 8 | 16088-002 | 1 | ||
| LEVER-OIL PUMP CABLE | 9 | 16096-003 | 1 | ||
| SEAL-OIL,CAMSHAFT,"X" | 10 | 92049-1294 | 1 | ||
| SCREW PAN HEAD 6X10 | 11 | 220B0610 | 1 | ||
| OIL SEAL OIL PUMP SHT | 12 | 16091-001 | 1 | ||
| "0" RING,LOWER CAP | 13 | 16090-003 | 1 | ||
| GASKET,OIL PUMP | 14 | 11060-1160 | 1 | ||
| SCREW-PAN-CROS | 15 | 220B0514 | 1 | ||
| SCREW PAN CROSS,5X28 | 16 | 220B0528 | 1 | ||
| HOLDER OIL PIPE | 17 | 16068-004 | 1 | ||
| PIPE OIL | 18 | 16134-007 | 1 | ||
| PIPE OIL | 19 | 16134-008 | 1 | ||
| PIPE OIL | 20 | 16134-009 | 1 | ||
| BOLT-BANJO,CR | 21 | 92060-010-79 | 3 | ||
| GASKET CHECK VALVE | 22 | 92065-058 | 3 | ||
| GASKET CHECK VALVE | 23 | 92065-023 | 3 |
