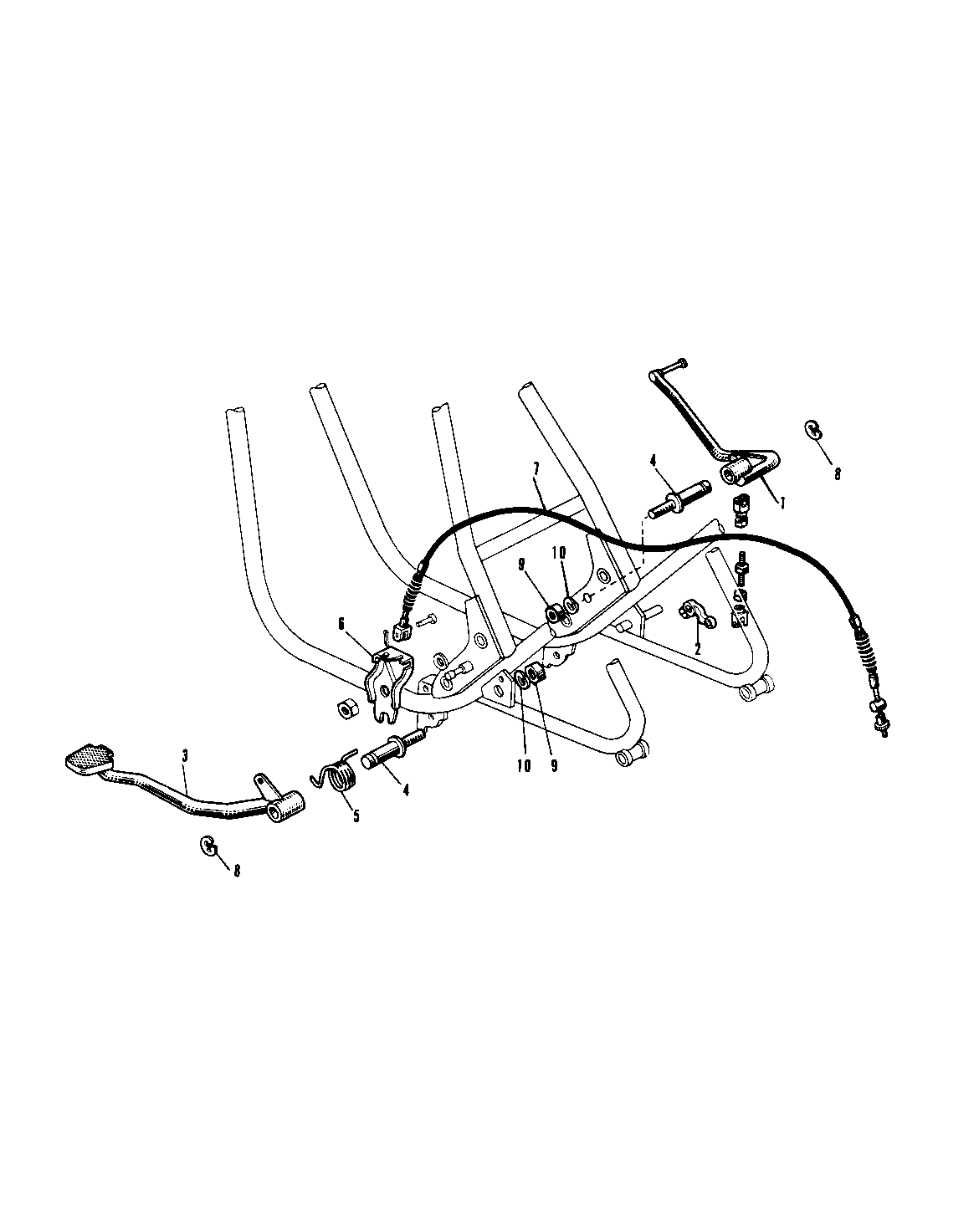

1975 H1-F - OPTIONAL PARTS ('69-'72 H1/A/B/C)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PEDAL GR CHG OPT | 1 | 13156-028 | 1 | ||
| LEVER-CHNG PEDAL (OPT | 2 | 13158-005 | 1 | ||
| PEDAL-BRAKE (OPTION) | 3 | 43001-028 | 1 | ||
| SHAFT-BRK PEDAL (OPT) | 4 | 43004-006 | 2 | ||
| SPRING BRAKE PEDAL | 5 | 43005-012 | 1 | ||
| BRACKET CABLE | 6 | 32067-009 | 1 | ||
| RR BRAKE CABLE (OPT) | 7 | 54022-012 | 1 | ||
| CIRCLIP 12MM | 8 | 482K0200 | 2 | ||
| NUT-HEX-FINE,12MM | 9 | 315B1200 | 2 | ||
| WASHER SPRING 12MM | 10 | 461F1200 | 2 |
| PEDAL GR CHG OPT | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-CHNG PEDAL (OPT | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PEDAL-BRAKE (OPTION) | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-BRK PEDAL (OPT) | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING BRAKE PEDAL | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET CABLE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RR BRAKE CABLE (OPT) | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 12MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX-FINE,12MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 12MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
