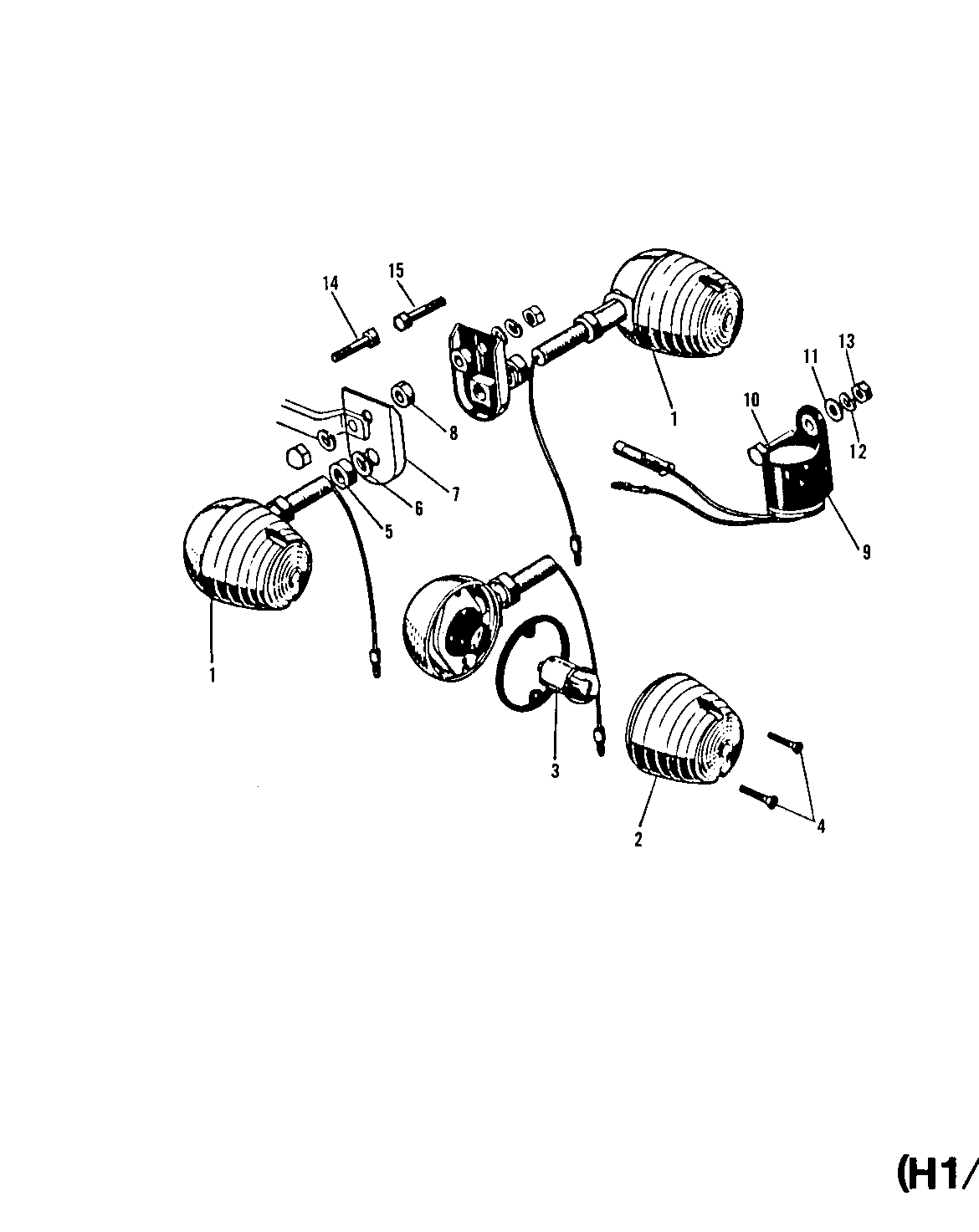

1975 H1-F - TURN SIGNALS (H1/A OPTIONAL)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LAMP FRNT TURN SIGNAL | 1 | 23040-020 | 4 | ||
| LENS TURN SIGNAL LAMP | 2 | 23048-011 | 4 | ||
| BULB 12V 8W | 3 | 92069-043 | 4 | ||
| SCREW OVL CNTSNK 3X15 | 4 | 222B0315A | 8 | ||
| NUT 10MM | 5 | 315B1000 | 4 | ||
| WASHER SPRING 10MM | 6 | 461F1000 | 4 | ||
| BRACKET TURN SIG LAMP | 7 | 23051-011 | 2 | ||
| COLLAR FUEL TANK FIT | 8 | 92027-015 | 2 | ||
| RELAY TURN SIGNAL | 9 | 27002-008 | 1 | ||
| BOLT-UPSET,6X16 | 10 | 112G0616 | 1 | ||
| WASHER PLAIN 6MM | 11 | 411B0600 | 1 | ||
| WASHER SPRING 6MM | 12 | 461F0600 | 1 | ||
| NUT 6MM | 13 | 311B0600 | 1 | ||
| BOLT,FLANGED,8X60 | 14 | 92001-1581 | 1 | ||
| BOLT,8X55 | 15 | 92001-1386 | 1 |
| LAMP FRNT TURN SIGNAL | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| LENS TURN SIGNAL LAMP | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BULB 12V 8W | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW OVL CNTSNK 3X15 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT 10MM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 10MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BRACKET TURN SIG LAMP | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR FUEL TANK FIT | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RELAY TURN SIGNAL | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X16 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X60 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X55 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
