Parts Diagrams |

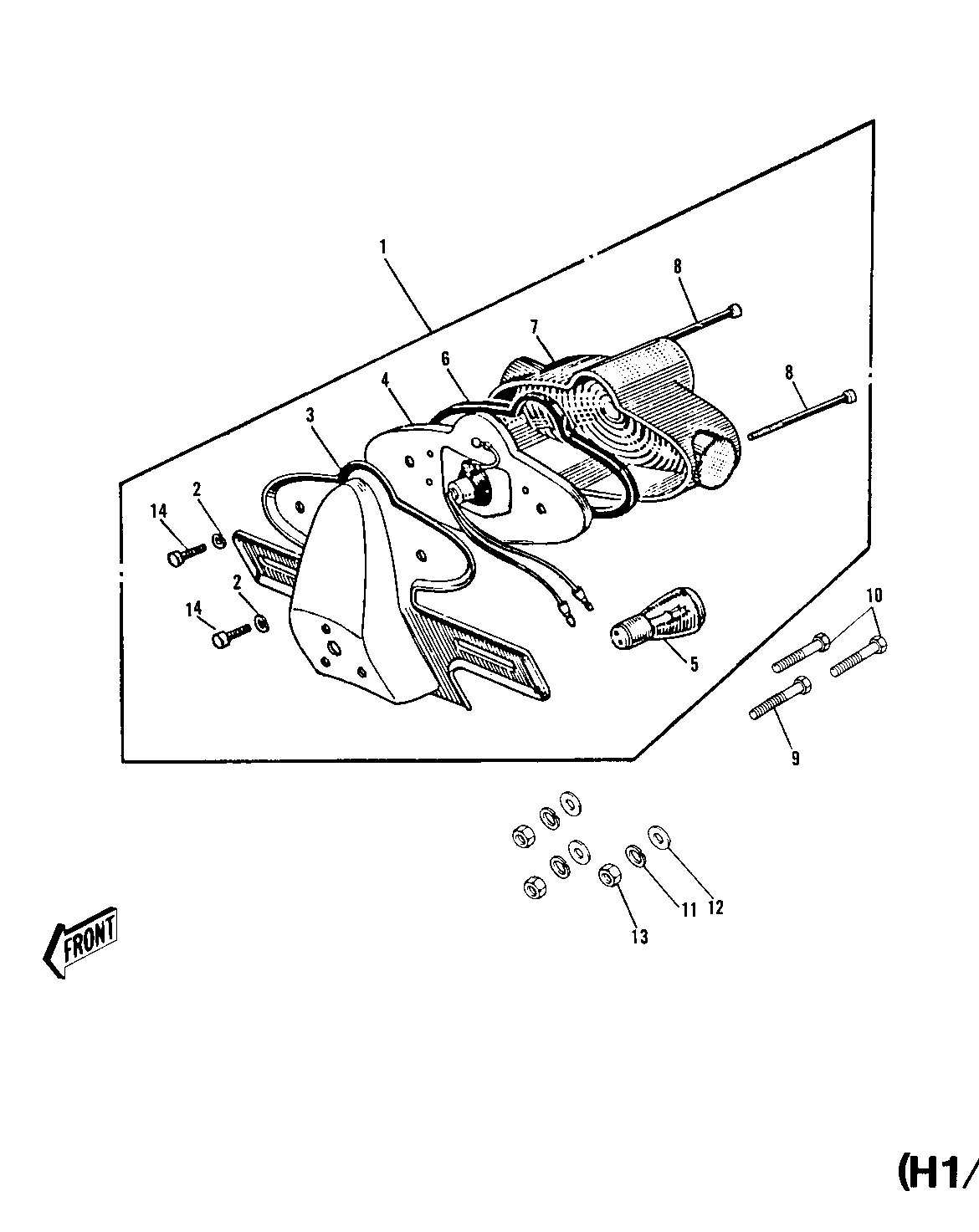

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LAMP ASSY TAIL BLACK | 1 | 23025-029-10 | 1 | ||
| LAMP ASSY-TAIL,BLACK | 1 | 23024-020-21 | 1 | ||
| WASHER SPRING 5MM | 2 | 461F0500 | 2 | ||
| BKT LICENSE PLT | 3 | 23036-002 | 1 | H1 | |
| BKT LICENSE PLT BLACK | 3 | 23036-007-10 | 1 | H1-A | |
| SOCKET TAIL LAMP | 4 | 23027-009 | 1 | ||
| BULB,12V 32/3CP | 5 | 92069-059 | 1 | ||
| GASKET TAIL LAMP | 6 | 23028-008 | 1 | ||
| LENS TAIL LAMP | 7 | 23026-010 | 1 | ||
| SCREW | 8 | 220R0455 | 4 | ||
| BOLT-UPSET,6X40 | 9 | 112G0640 | 1 | ||
| BOLT-UPSET | 10 | 112G0630 | 2 | ||
| WASHER SPRING 6MM | 11 | 461F0600 | 3 | ||
| WASHER PLAIN 6MM | 12 | 411B0600 | 3 | ||
| NUT 6MM | 13 | 311B0600 | 3 | ||
| BOLT HEX HEAD | 14 | 110N0512A | 2 |
| LAMP ASSY TAIL BLACK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP ASSY-TAIL,BLACK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BKT LICENSE PLT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1 |
| BKT LICENSE PLT BLACK | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-A |
| SOCKET TAIL LAMP | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 32/3CP | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET TAIL LAMP | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS TAIL LAMP | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X40 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
