Parts Diagrams |

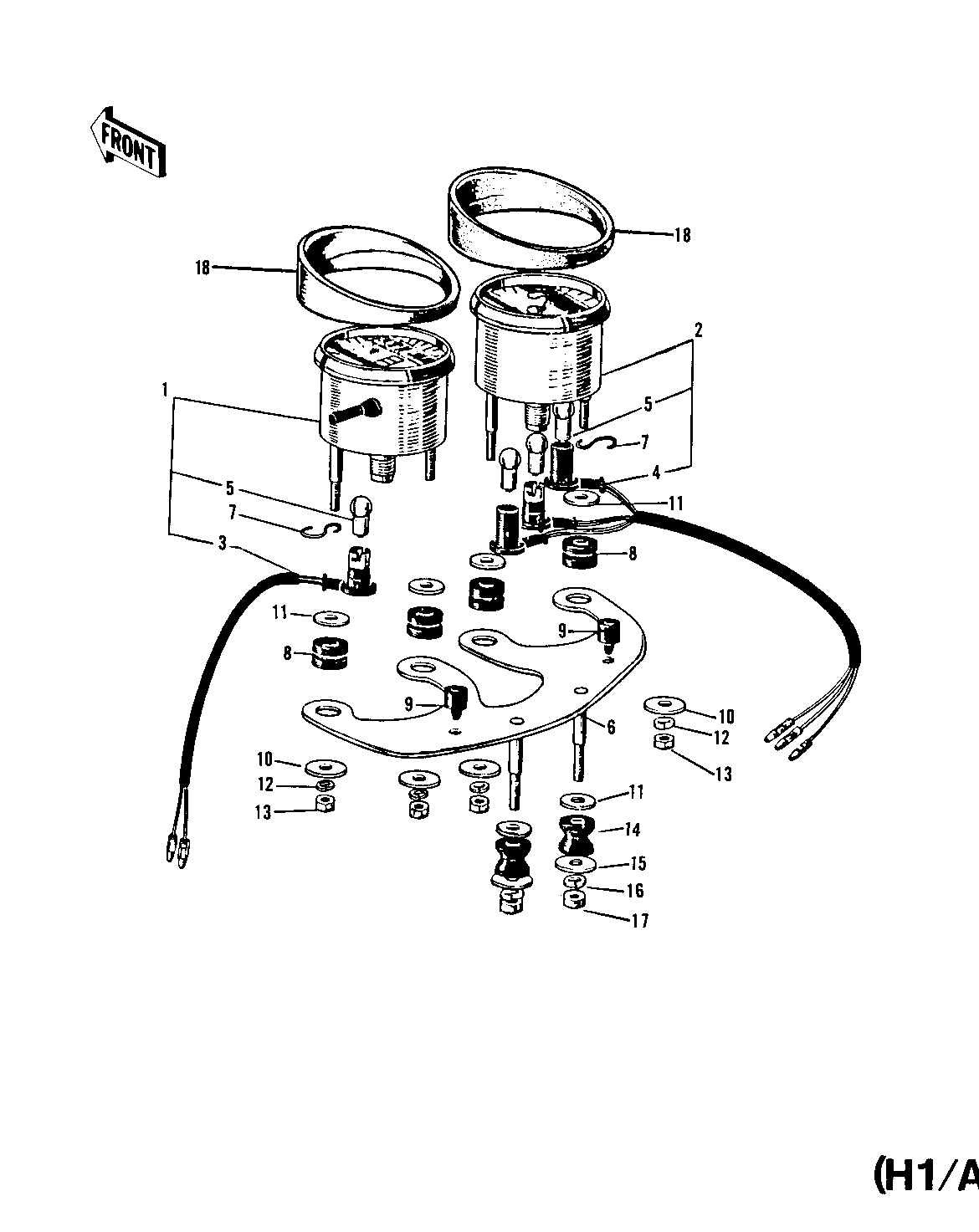

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPEEDOMETER ASSY MPH | 1 | 25005-027 | 1 | ||
| TACHOMETER ASSY | 2 | 25015-006 | 1 | ||
| SOCKET SPEEDOMETER | 3 | 25011-003 | 1 | ||
| SOCKET TACHOMETER | 4 | 25011-011 | 1 | ||
| BULB 12V 3W | 5 | 92069-018 | 4 | ||
| BRACKET SPEEDOMETER | 6 | 25008-009 | 1 | ||
| CLAMP CABLE | 7 | 25022-002 | 2 | ||
| DAMPER RUBB SPEEDMETR | 8 | 92075-034 | 4 | ||
| DAMPER RUBB SPEEDMETR | 9 | 92075-035 | 2 | ||
| WASHER PL 5.5X20X1.2 | 10 | 92022-104 | 4 | ||
| WASHER PLAIN 8MM | 11 | 411B0800 | 6 | ||
| WASHER SPRING 5MM | 12 | 461F0500 | 4 | ||
| NUT,5MM | 13 | 311B0500 | 4 | ||
| DAMPER RUBB SPEEDMETR | 14 | 92075-024 | 2 | ||
| WASHER 6.5X20X1.6T | 15 | 92022-125 | 2 | ||
| WASHER SPRING 6MM | 16 | 461F0600 | 2 | ||
| NUT 6MM | 17 | 311B0600 | 2 | ||
| COVER-SPEEDOMETER | 18 | 25012-003 | 2 | H1-C |
| SPEEDOMETER ASSY MPH | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TACHOMETER ASSY | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET SPEEDOMETER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET TACHOMETER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB 12V 3W | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BRACKET SPEEDOMETER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP CABLE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBB SPEEDMETR | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBB SPEEDMETR | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PL 5.5X20X1.2 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBB SPEEDMETR | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER-SPEEDOMETER | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | H1-C |
