Parts Diagrams |

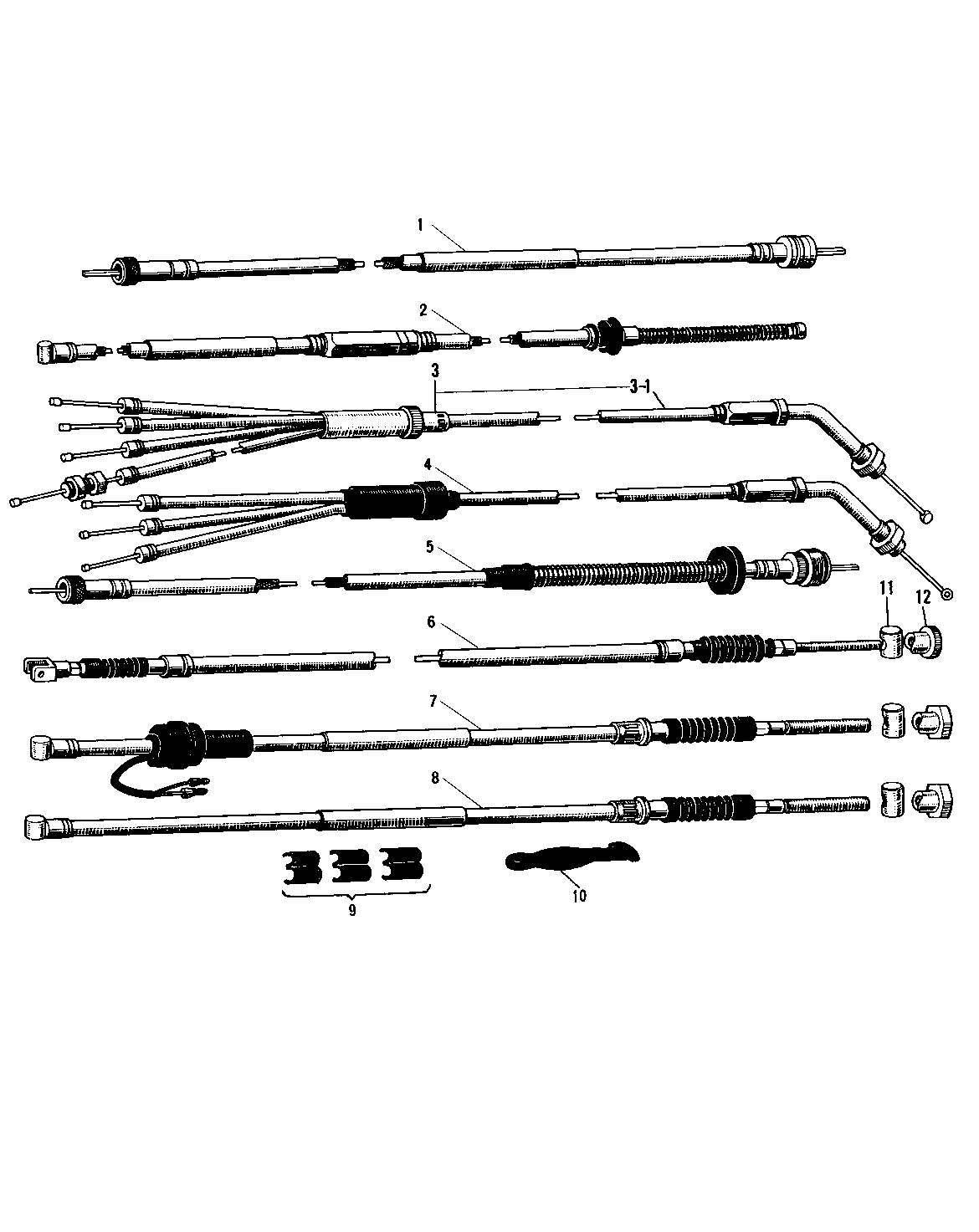

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CABLE,SPEEDOMETER | 1 | 54001-026 | 1 | H1/A/C | |
| CABLE,SPEEDOMETER | 1 | 54001-036 | 1 | H1-B | |
| CABLE CLUTCH | 2 | 54011-030 | 1 | ||
| CABLE COMBINATION | 3 | 54012-054 | 1 | ||
| CABLE COMBINATION | . | 54012-055 | 1 | NOTE: INDICATES CABLES AS OPTI | |
| CABLE COMBINATION | . | 54012-055 | 1 | NOTE: INDICATES CABLES AS OPTI | |
| CABLE,TROTTLE UPPER | 3-1 | 54012-054-SP | 1 | ||
| CABLE STARTER | 4 | 54017-031 | 1 | ||
| CABLE STARTER | . | 54017-032 | 1 | NOTE: INDICATES CABLES AS OPTI | |
| CABLE STARTER | . | 54017-032 | 1 | NOTE: INDICATES CABLES AS OPTI | |
| CABLE TACHOMETER | 5 | 54018-007 | 1 | ||
| CABLE REAR BRAKE | 6 | 54022-011 | 1 | ||
| CABLE FRONT BRAKE | 7 | 54005-040 | 1 | H1/A/C | |
| CLAMP-CABLE | 9 | 92037-069 | 3 | ||
| BAND RUBBER | 10 | 92072-013 | 1 | ||
| PIN BRAKE ROD | 11 | 92043-053 | 1 | ||
| NUT-BRAKE CABLE ADJST | 12 | 92015-041 | 1 |
| CABLE,SPEEDOMETER | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1/A/C |
| CABLE,SPEEDOMETER | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1-B |
| CABLE CLUTCH | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE COMBINATION | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE COMBINATION | |
| REF # | . |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | NOTE: INDICATES CABLES AS OPTI |
| CABLE COMBINATION | |
| REF # | . |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | NOTE: INDICATES CABLES AS OPTI |
| CABLE,TROTTLE UPPER | |
| REF # | 3-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE STARTER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE STARTER | |
| REF # | . |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | NOTE: INDICATES CABLES AS OPTI |
| CABLE STARTER | |
| REF # | . |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | NOTE: INDICATES CABLES AS OPTI |
| CABLE TACHOMETER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE REAR BRAKE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE FRONT BRAKE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | H1/A/C |
| CLAMP-CABLE | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BAND RUBBER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN BRAKE ROD | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-BRAKE CABLE ADJST | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
