Parts Diagrams |

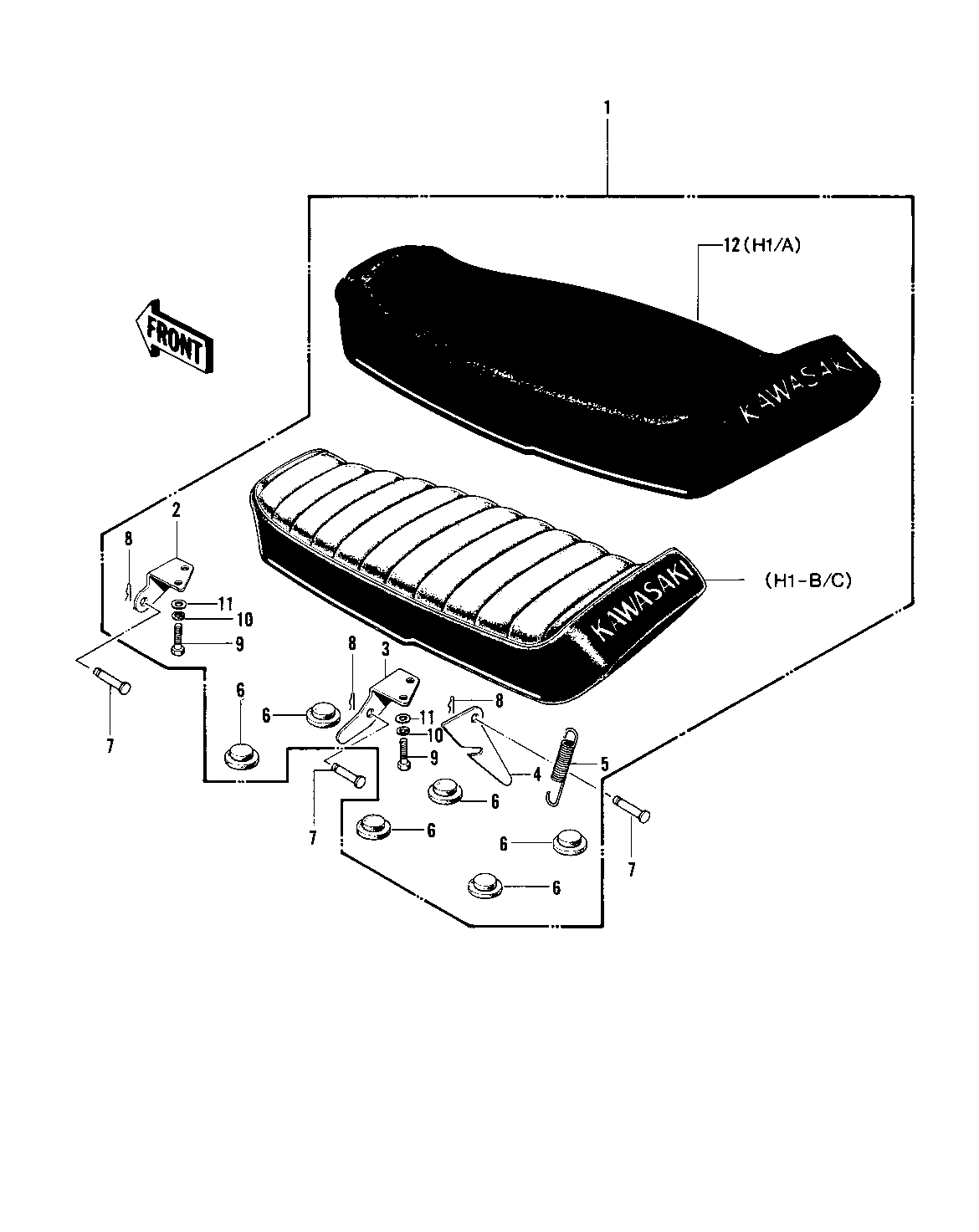

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SEAT-DUAL | 1 | 53001-060 | 1 | H1 | |
| SEAT ASSY-DUAL | 1 | 53001-066 | 1 | H1-A | |
| SEAT ASSY-DUAL | 1 | 53001-072 | 1 | H1-B/C | |
| HINGE-FRONT,BLACK | 2 | 53009-012-10 | 1 | ||
| HINGE-REAR,BLACK | 3 | 53009-013-10 | 1 | ||
| HOOK | 4 | 53008-006 | 1 | ||
| SPRING | 5 | 53012-002 | 1 | ||
| DAMPER RUBB DUAL SEAT | 6 | 92075-023 | 6 | ||
| PIN DUAL SEAT PIVOT | 7 | 53011-001 | 3 | ||
| PIN COTTER 2.0X15 | 8 | 550D2015 | 3 | ||
| PIN,SNAP | 8 | 554A0800 | 3 | ||
| BOLT-UPSET 6X14 | 9 | 112B0614 | 4 | ||
| WASHER SPRING 6MM | 10 | 461F0600 | 4 | ||
| WASHER PLAIN 6MM | 11 | 411B0600 | 4 | ||
| COVER-DUAL SEAT | 12 | 53003-002 | 1 | H1-A |
