Parts Diagrams |

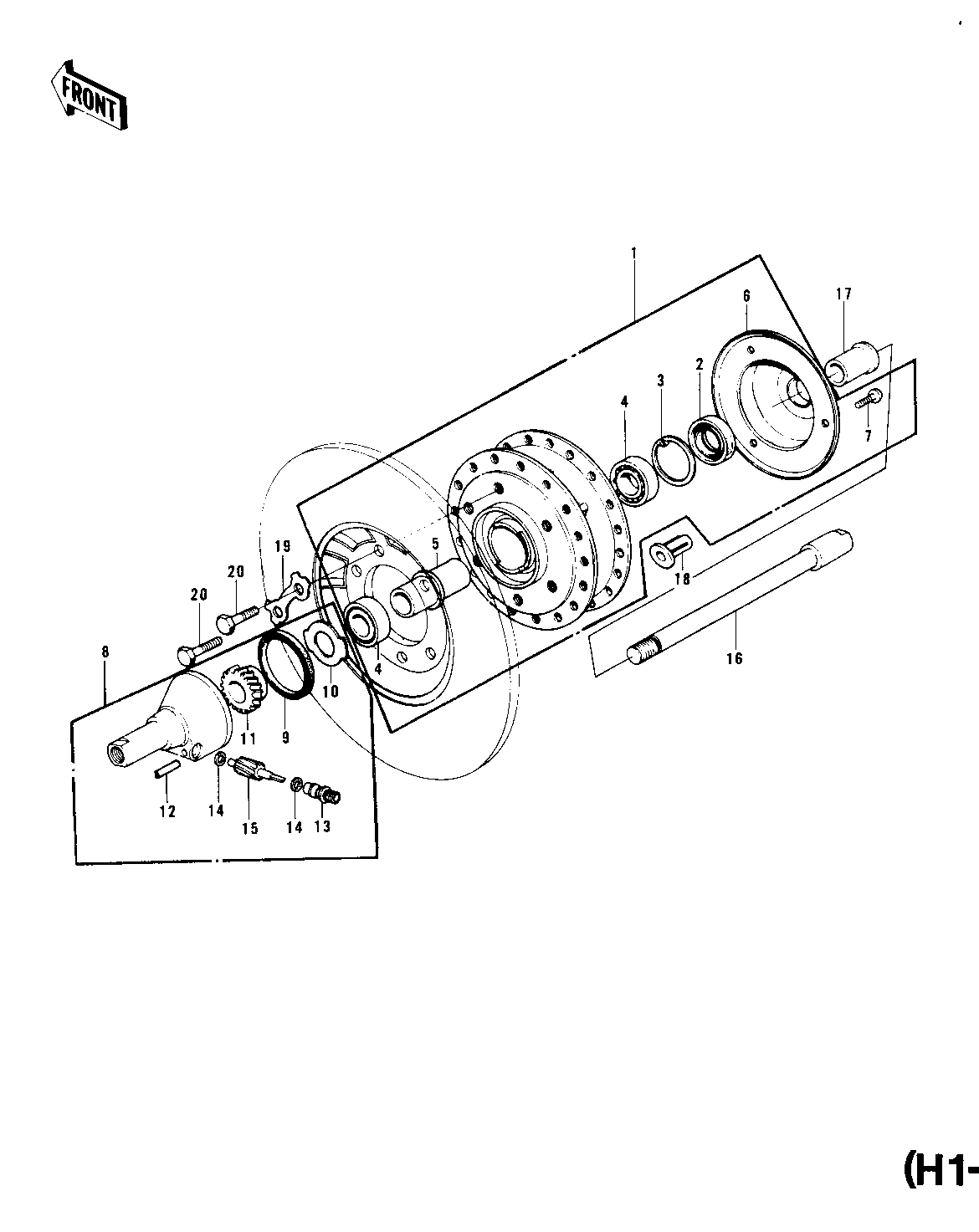

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,FR BRK,BLK | 1 | 41034-021-21 | 1 | ||
| OIL SEAL-COUPLING | 2 | 92052-003 | 1 | ||
| RING, SNAP,43.5M/M | 3 | 92033-1040 | 1 | ||
| BEARING BALL #6203 | 4 | 601B6203 | 2 | ||
| COLLAR-FRONT DRUM | 5 | 41039-019 | 1 | ||
| COVER-BRAKE DRUM DUST | 6 | 41042-009 | 1 | ||
| SCREW OVL CNTSNK 5X12 | 7 | 222E0512A | 3 | ||
| CASE ASSY-SPEED GEAR | 8 | 41078-001 | 1 | ||
| OIL SEAL,VC54656 | 9 | 92050-046 | 1 | ||
| RECEIVER-SPEEDO GEAR | 10 | 41064-007 | 1 | ||
| GEAR-SPEEDOMETER | 11 | 41059-016 | 1 | ||
| PIN,SPRING | 12 | 41082-001 | 1 | ||
| BUSH SPEEDMETER CABLE | 13 | 41062-001 | 1 | ||
| WASHER THRST SPD PINI | 14 | 41063-001 | 2 | ||
| PINION-SPEEDOMETER | 15 | 41060-012 | 1 | ||
| AXLE-FRONT HUB | 16 | 41068-036 | 1 | ||
| COLLAR-FRONT AXLE | 17 | 41069-018 | 1 | ||
| CAP-FRONT DRUM HOLE | 18 | 92102-006 | 6 | ||
| WASHER-LOCK,8MM | 19 | 92088-014 | 3 | ||
| BOLT-HEX HEAD,8X28 | 20 | 92001-104 | 6 |
| DRUM-ASSY,FR BRK,BLK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL-COUPLING | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING, SNAP,43.5M/M | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6203 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR-FRONT DRUM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-BRAKE DRUM DUST | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW OVL CNTSNK 5X12 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CASE ASSY-SPEED GEAR | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,VC54656 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RECEIVER-SPEEDO GEAR | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPEEDOMETER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,SPRING | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSH SPEEDMETER CABLE | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER THRST SPD PINI | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PINION-SPEEDOMETER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE-FRONT HUB | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR-FRONT AXLE | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-FRONT DRUM HOLE | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER-LOCK,8MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-HEX HEAD,8X28 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
