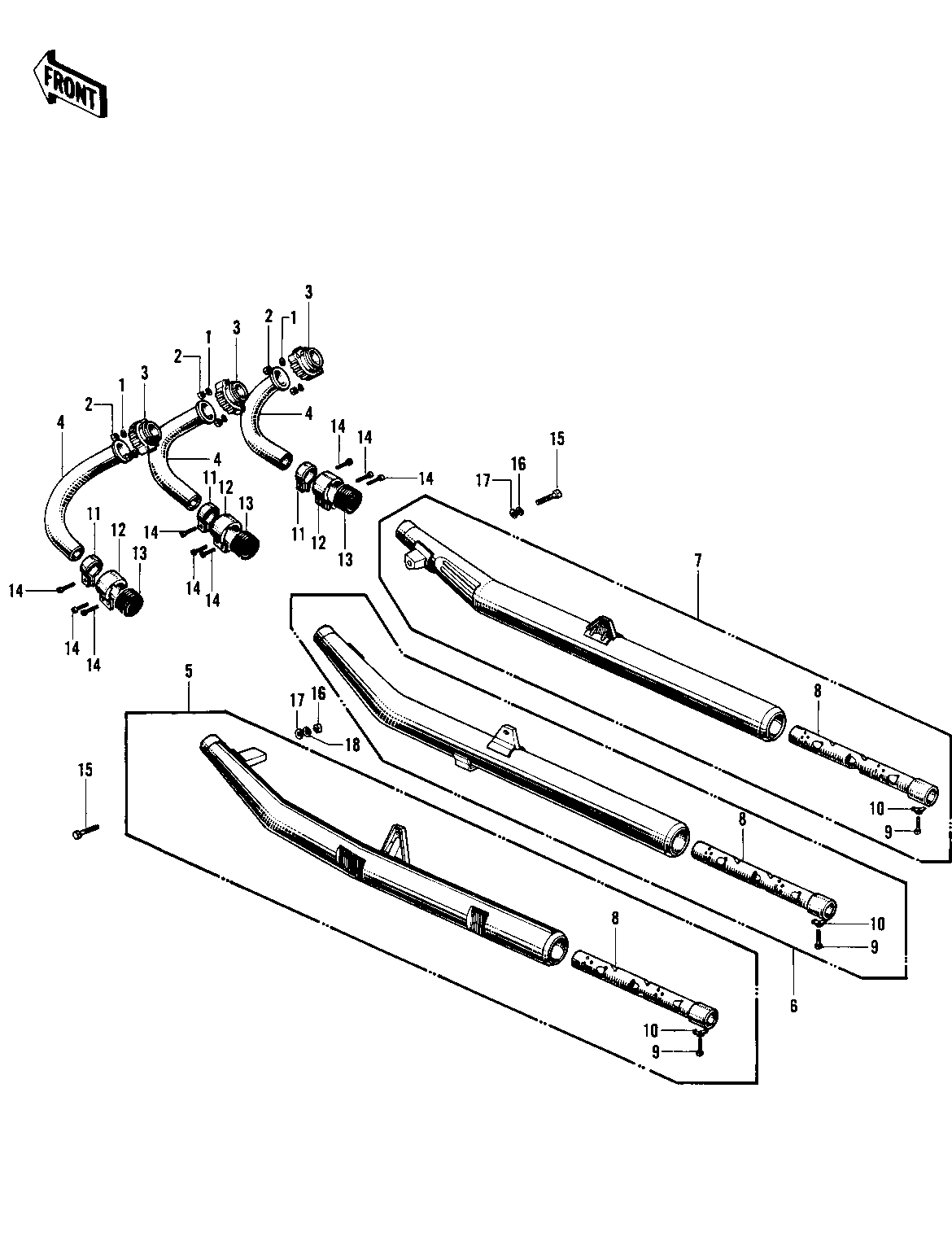

1975 H1-F - MUFFLERS ('69-'72 H1/A/B/C)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER SPRING 6MM 1 461F0600 6
NUT 6MM 2 311B0600 6
HOLDER EXHAUST PIPE 3 18069-024 3
PIPE EXHAUST 4 18049-050 3
MUFFLER ASSY,L.H. 5 18001-063 1 H1/A/C
MUFFLER ASSY,L.H. 5 18001-063 1 H1-B
MUFFLER ASSY 6 18001-023 1 H1-A/C
MUFFLER ASSY,CENTER 6 18001-064 1 H1-B
MUFFLER ASSY 7 18001-024 1 H1/A/C
MUFFLER ASSY,R.H. 7 18001-065 1 H1-B
BAFFLE TUBE 8 18033-027 3 H1/A/C
BAFFLE TUBE 8 18033-051 3 H1-B
BOLT-UPSET,6X12 9 112G0612 3
WASHER LOCK 6MM 10 92024-016 3
HOLDER MUFFLER CONECT 11 18044-007 3
HOLDER MUFFLER CONECT 12 18044-006 3
CONNECTOR MUFFLER 13 18043-010 3
SCREW PAN HEAD 6X25 14 220B0625 9
BOLT,8X20 15 115G0820 2
WASHER SPRING 8MM 16 461F0800 2
WASHER PLAIN 8MM 17 411B0800 2
NUT,8MM 18 311B0800 1
