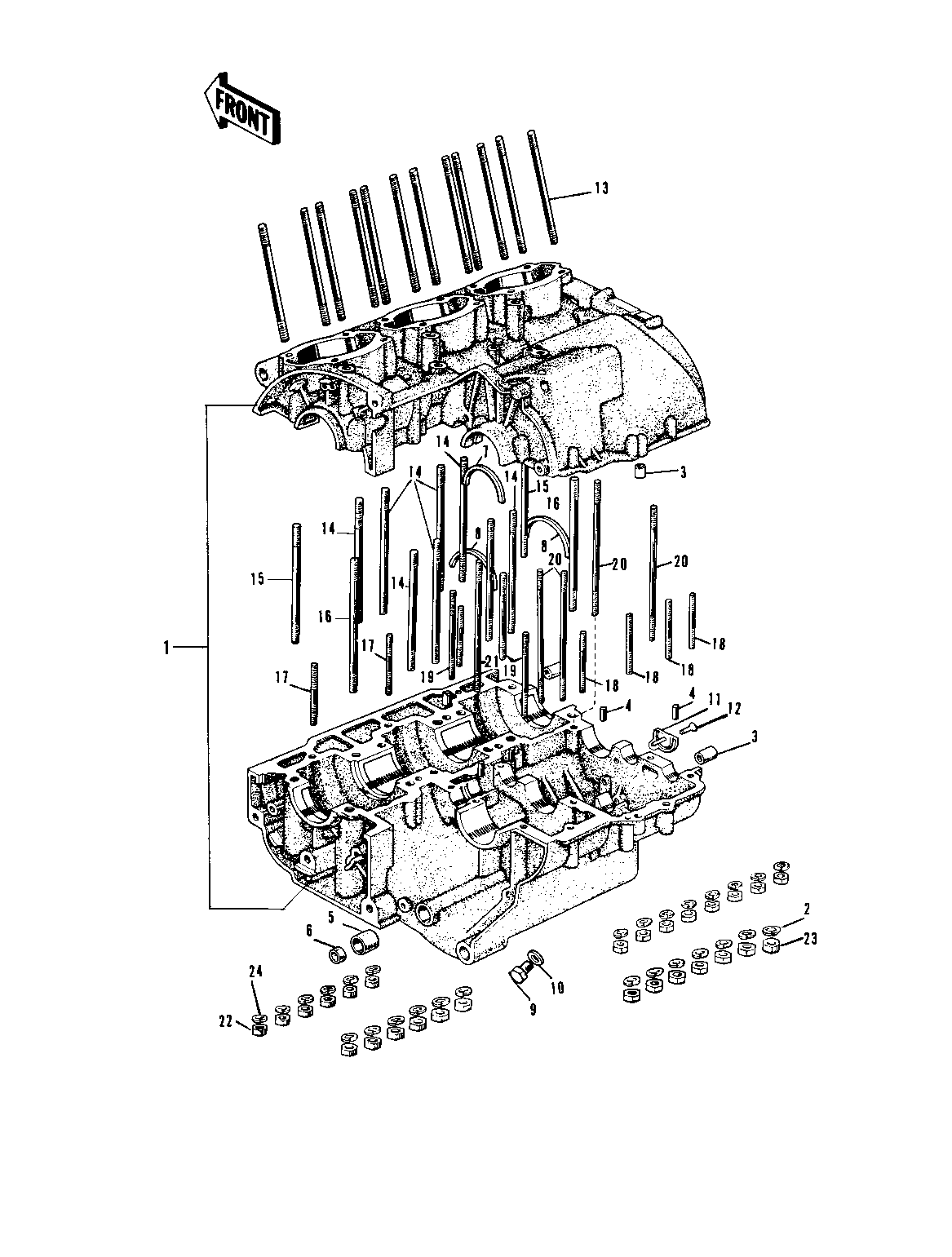

1975 H1-F - CRANKCASE ('69-'72 H1/A/B/C)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKCASE SET | 1 | 14001-030 | 1 | INCLUDES REF. #'S 3-5 | |
| WASHER SPRING 6MM | 2 | 461F0600 | 15 | ||
| PIN,DOWEL,10X8.2X14 | 3 | 92043-1037 | 4 | ||
| PIN DOWEL 6MM | 4 | 92042-016 | 4 | ||
| BUSH CHANGE PEDAL SHT | 5 | 92028-071 | 1 | ||
| OIL SEAL SB12205 | 6 | 92049-004 | 1 | ||
| RING,POSITION | 7 | 14013-1004 | 1 | ||
| RING BEARING SETTING | 8 | 14013-004 | 2 | ||
| PLUG OIL DRAIN | 9 | 92067-001 | 1 | ||
| GASKET CHECK VALVE | 10 | 92065-058 | 1 | ||
| RECEIVER OIL | 11 | 14015-001 | 1 | ||
| SCREW CNTSNK HD 6X16 | 12 | 221B0616 | 1 | ||
| STUD 8X75 | 13 | 172G0875 | 12 | ||
| STUD 10X60 | 14 | 172G1060 | 8 | ||
| STUD 10X75 | 15 | 172G1075 | 2 | ||
| STUD 10X90 | 16 | 172G1090 | 2 | ||
| STUD 6X20 | 17 | 172G0620 | 1 | H1/A | |
| STUD 6X22 | 17 | 172G0622 | 3 | H1-B/C | |
| STUD 6X35 | 18 | 172G0635 | 4 | ||
| STUD 6X50 | 19 | 172G0650 | 3 | ||
| STUD 6X75 | 20 | 172G0675 | 4 | ||
| STUD 6X85 | 21 | 172G0685 | 1 | ||
| NUT,10MM | 22 | 317B1000 | 12 | ||
| NUT 6MM | 23 | 311B0600 | 15 | ||
| WASHER SPRING 10MM | 24 | 461F1000 | 12 |
