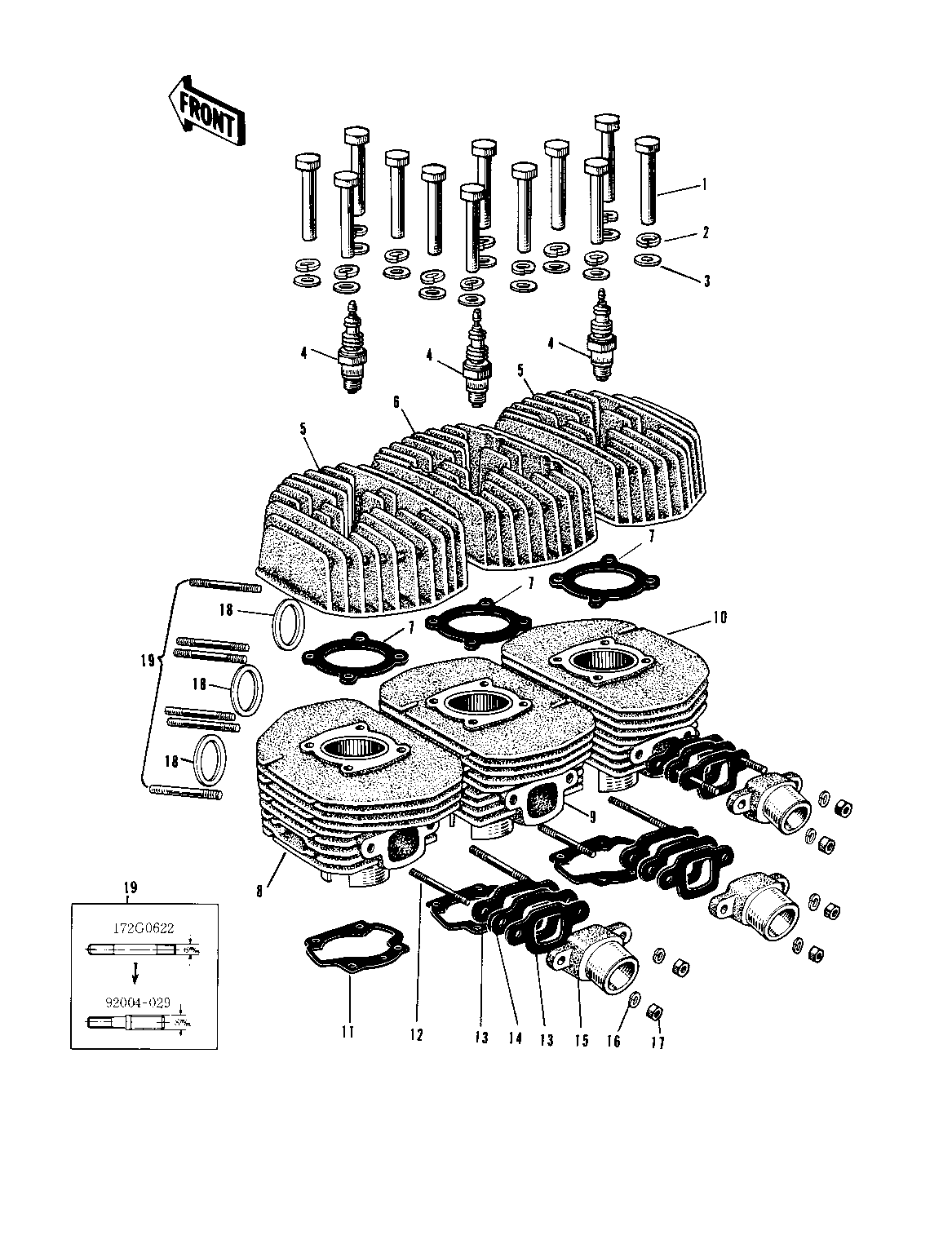

1975 H1-F - CYLINDER HEADS/CYLINDERS ('69-'72 H1/A/B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT 8MM | 1 | 92015-020 | 12 | ||
| WASHER SPRING 12MM | 2 | 461F1200 | 12 | ||
| WASHER PLAIN 12MM | 3 | 92022-072 | 12 | ||
| UNAVAILABLE IN PRICE BOOK | 4 | 92070-016 | 3 | H1 A/C | |
| SPARK PLUG B9HS1 | 4 | B9HS1 | 3 | H1 B | |
| CYLINDER HEAD,L.H&R.H | 5 | 11001-064-80 | 2 | ||
| CYLINDER HEAD,L.H&R.H | 5 | 11001-098-2H | 2 | ||
| CYLINDER HEAD,CENTER | 6 | 11001-065 | 1 | ||
| CYLINDER HEAD,CENTER | 6 | 11001-099-2H | 1 | ||
| GASKET-CYLINDER HEAD | 7 | 11004-048 | 3 | ||
| CYLINDER | 8 | 11005-050 | 1 | ||
| CYLINDER | 9 | 11005-051 | 1 | ||
| CYLINDER | 10 | 11005-052 | 1 | ||
| GASKET CYLINDER BASE | 11 | 11009-019 | 3 | ||
| STUD 8X20 | 12 | 172G0820 | 6 | ||
| GASKET AIR INLET | 13 | 16062-011 | 6 | ||
| INSULATOR HEAT | 14 | 16061-010 | 3 | ||
| INLET PIPE | 15 | 16060-009 | 3 | ||
| WASHER SPRING 8MM | 16 | 461F0800 | 6 | ||
| NUT,8MM | 17 | 311B0800 | 6 | ||
| GASKET EXHAUST PIPE | 18 | 18067-008 | 3 | ||
| STUD 6X22 | 19 | 172G0622 | 6 | ||
| STUD | 19 | 92004-029 | (6 | SELECTIVE USE |
