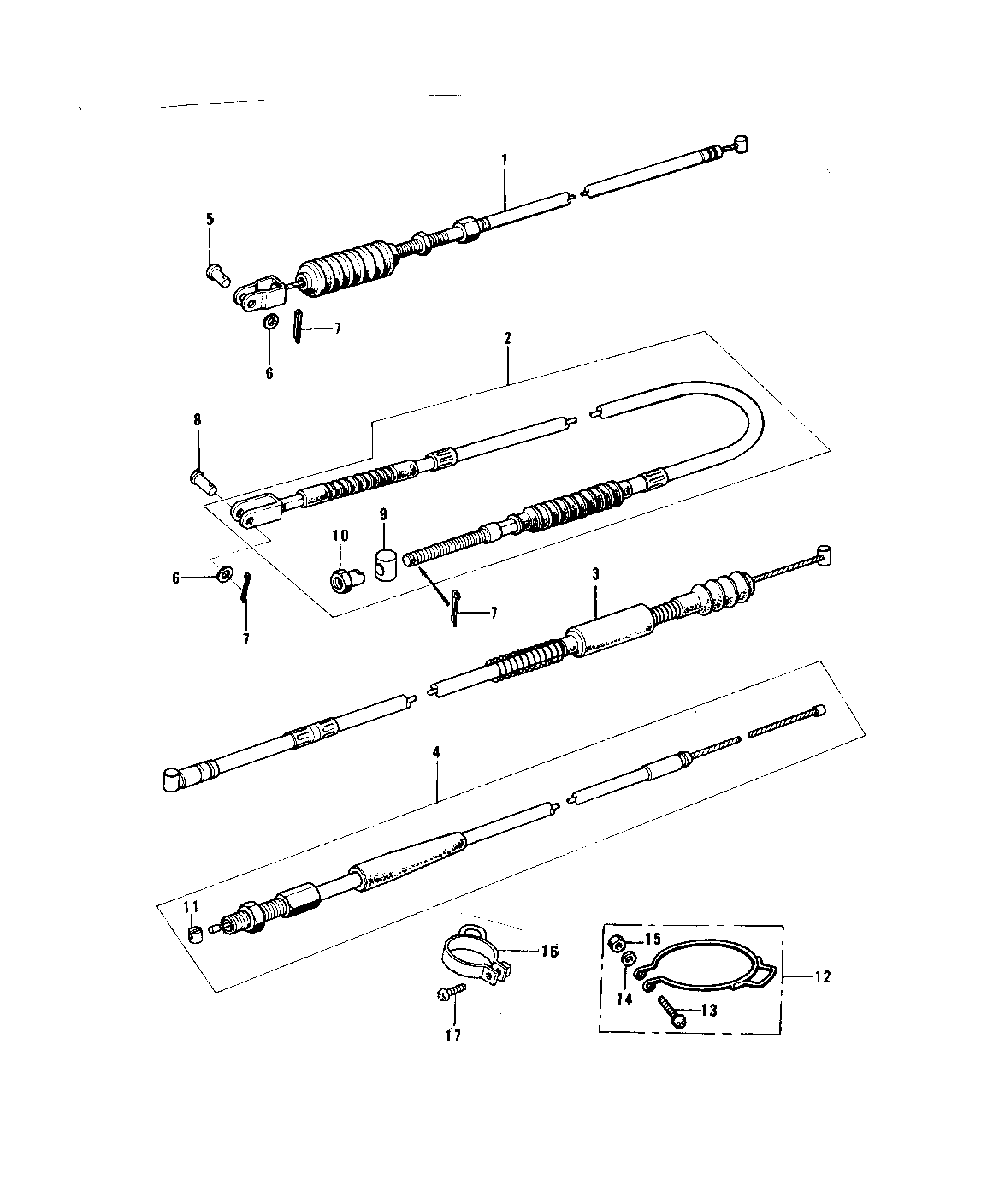

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CABLE,FRONT BRAKE | 1 | 54005-076 | 1 | ||
| CABLE,REAR BRAKE | 2 | 54022-023 | 1 | ||
| CABLE,CLUTCH | 3 | 54011-066 | 1 | ||
| CABLE,THROTTLE | 4 | 54012-106 | 1 | ||
| PIN-BRAKE ROD FITTIN | 5 | 92043-064 | 1 | ||
| WASHER PLAIN 6MM | 6 | 410B0600 | 2 | ||
| PIN COTTER 1.6X15 | 7 | 550D1615 | 3 | ||
| PIN R BRK CABLE JOIN | 8 | 92043-034 | 1 | ||
| PIN-BRAKE ROD | 9 | 92043-065 | 1 | ||
| NUT-BRAKE ROD ADJUST | 10 | 92015-042 | 1 | ||
| PIECE,THROTTLE CABLE | 11 | 54013-001 | 1 | ||
| GUIDE,CABLE | 12 | 54030-010 | 1 | ||
| SCREW PAN HEAD 5X22 | 13 | 220B0522 | 1 | ||
| WASHER PLAIN 5MM | 14 | 411B0500 | 1 | ||
| NUT,5MM | 15 | 311B0500 | 1 | ||
| CLAMP,FRONT BRK CABL | 16 | 92037-196 | 1 | ||
| SCREW PAN HEAD 6X20 | 17 | 220B0620 | 1 |
