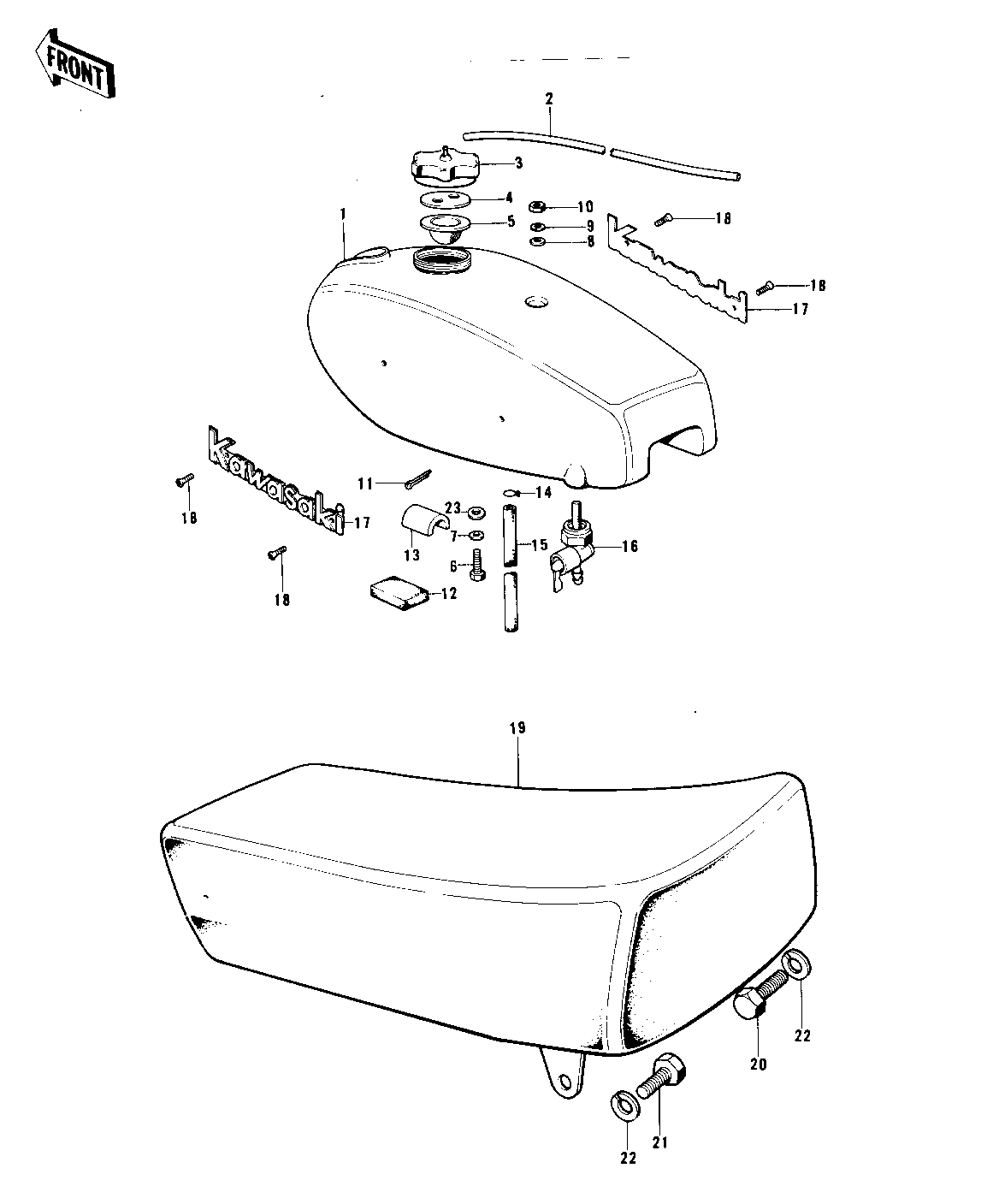

1974 KX450 - FUEL TANK/SEAT ('74 KX 450)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK-FUEL, | 1 | 51001-097 | 1 | ||
| TUBE-VINYL,5X280 | 2 | 700Q05280 | 1 | ||
| CAP,FUEL TANK | 3 | 51049-1002 | 1 | ||
| WASHER,FUEL TANK CAP | 4 | 51058-004 | 1 | ||
| GASKET,FUEL TANK CAP | 5 | 51059-012 | 1 | ||
| BOLT,FUEL TANK FITT | 6 | 92003-149 | 1 | ||
| DAMPER RUBBER | 7 | 92075-203 | 1 | ||
| DAMPER RUBBER,RR FEN | 8 | 92075-121 | 1 | ||
| WASHER-PL-10.5X26X2. | 9 | 92022-044 | 1 | ||
| NUT,10MM | 10 | 92019-016 | 1 | ||
| PIN,COTTER,2.5X40 | 11 | 550D2540 | 1 | ||
| MAT BATTERY | 12 | 32103-006 | 1 | ||
| MAT FUEL TANK | 13 | 51067-002 | 1 | ||
| CLAMP-PIPE | 14 | 92037-072 | 2 | ||
| HOSE,FUEL | 15 | 92059-144 | 1 | ||
| FUEL COCK ASSY | 16 | 51023-033 | 1 | ||
| EMBLEM,FUEL TANK | 17 | 56013-055 | 2 | ||
| SCREW CNTSNK HD 3X6 | 18 | 221B0306A | 4 | ||
| SEAT ASSY | 19 | 53001-085 | 1 | ||
| BOLT,HEX HEAD,10MM | 20 | 92003-166 | 1 | ||
| BOLT-UPSET,10X20 | 21 | 112B1020 | 1 | ||
| WASHER SPRING 10MM | 22 | 461F1000 | 2 | ||
| WASHER,PLAIN,10MM | 23 | 92022-301 | 1 |
