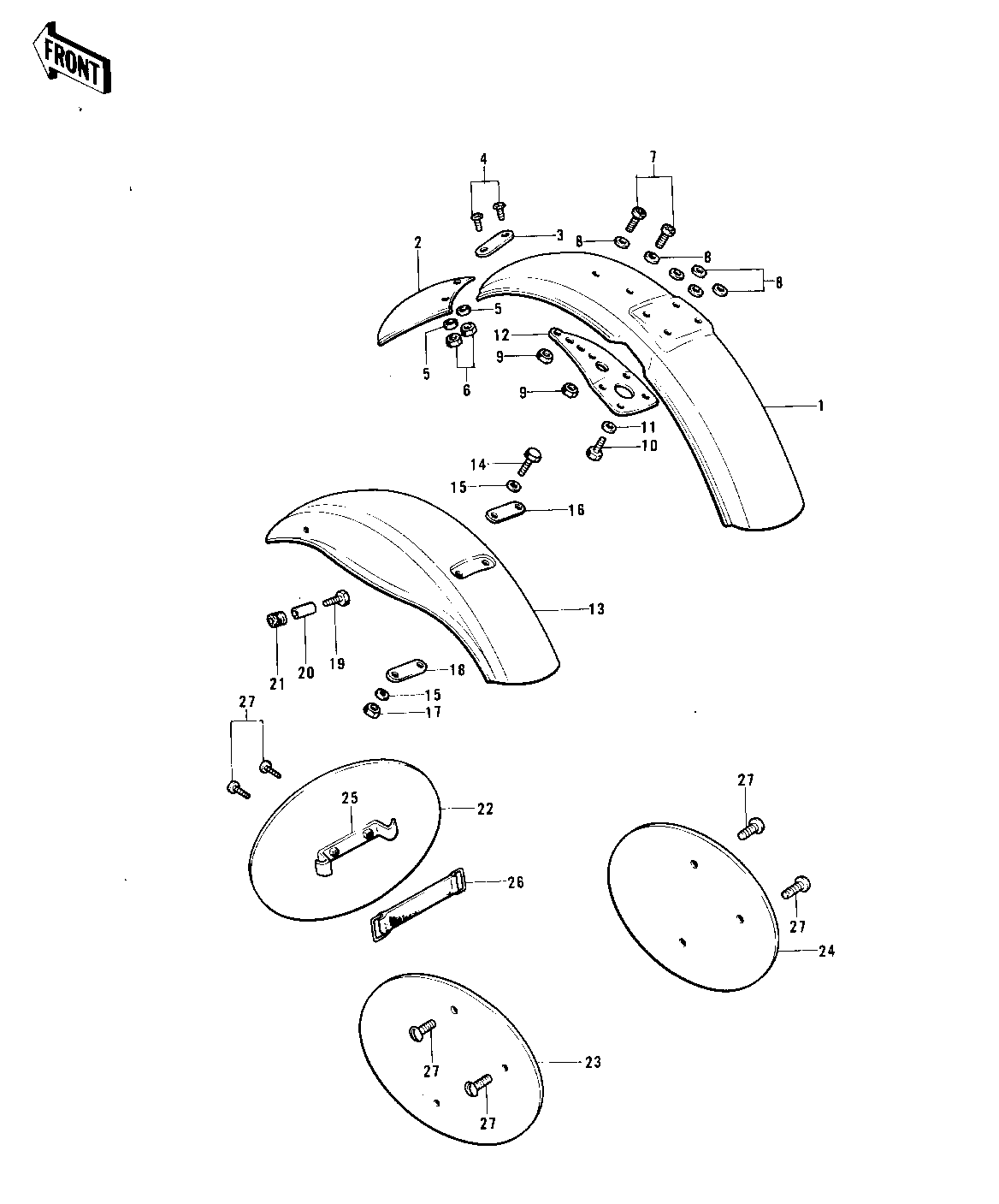

1974 KX450 - FENDERS/NUMBER PLATES ('74 KX 450)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-FR | 1 | 35004-096 | 1 | ||
| FLAP,FRONT FENDER | 2 | 35019-005 | 1 | ||
| PLATE,FENDER FLAP | 3 | 35020-012 | 1 | ||
| BOLT,5X12 | 4 | 92001-134 | 2 | ||
| WASHER SPRING 5MM | 5 | 461F0500 | 2 | ||
| NUT,5MM | 6 | 311B0500 | 2 | ||
| SCREW PAN HEAD 6X14 | 7 | 220E0614 | 2 | ||
| WASHER 6.5X20X1.6T | 8 | 92022-125 | 6 | ||
| NUT,6MM | 9 | 92019-019 | 2 | ||
| BOLT-UPSET,6X16 | 10 | 112G0616 | 4 | ||
| WASHER SPRING 6MM | 11 | 461F0600 | 4 | ||
| BRACKET,FRONT FENDER | 12 | 35013-013 | 1 | ||
| FENDER-RR | 13 | 35022-110 | 1 | ||
| BOLT-UPSET,6X16 | 14 | 112G0616 | 2 | ||
| WASHER PLAIN 6MM | 15 | 411B0600 | 4 | ||
| DAMPER-RUBBER | 16 | 92075-072 | 1 | ||
| NUT,6MM | 17 | 92019-019 | 4 | ||
| BRACKET,REAR FENDER | 18 | 35026-008 | 1 | ||
| BOLT 6X22 | 19 | 112B0622 | 2 | ||
| COLLAR | 20 | 92027-194 | 2 | ||
| DAMPER RUBBER | 21 | 92075-208 | 2 | ||
| PLATE,FRONT NUMBER | 22 | 58029-026 | 1 | ||
| PLATE,NUMBER | 23 | 58029-019 | 1 | ||
| PLATE,REAR NUMBER,R. | 24 | 58029-032 | 1 | ||
| BRACKET,NUMBER PLATE | 25 | 58030-008 | 1 | ||
| BAND BATTERY | 26 | 92072-006 | 1 | ||
| SCREW,6X10 | 27 | 92009-1286 | 7 |
