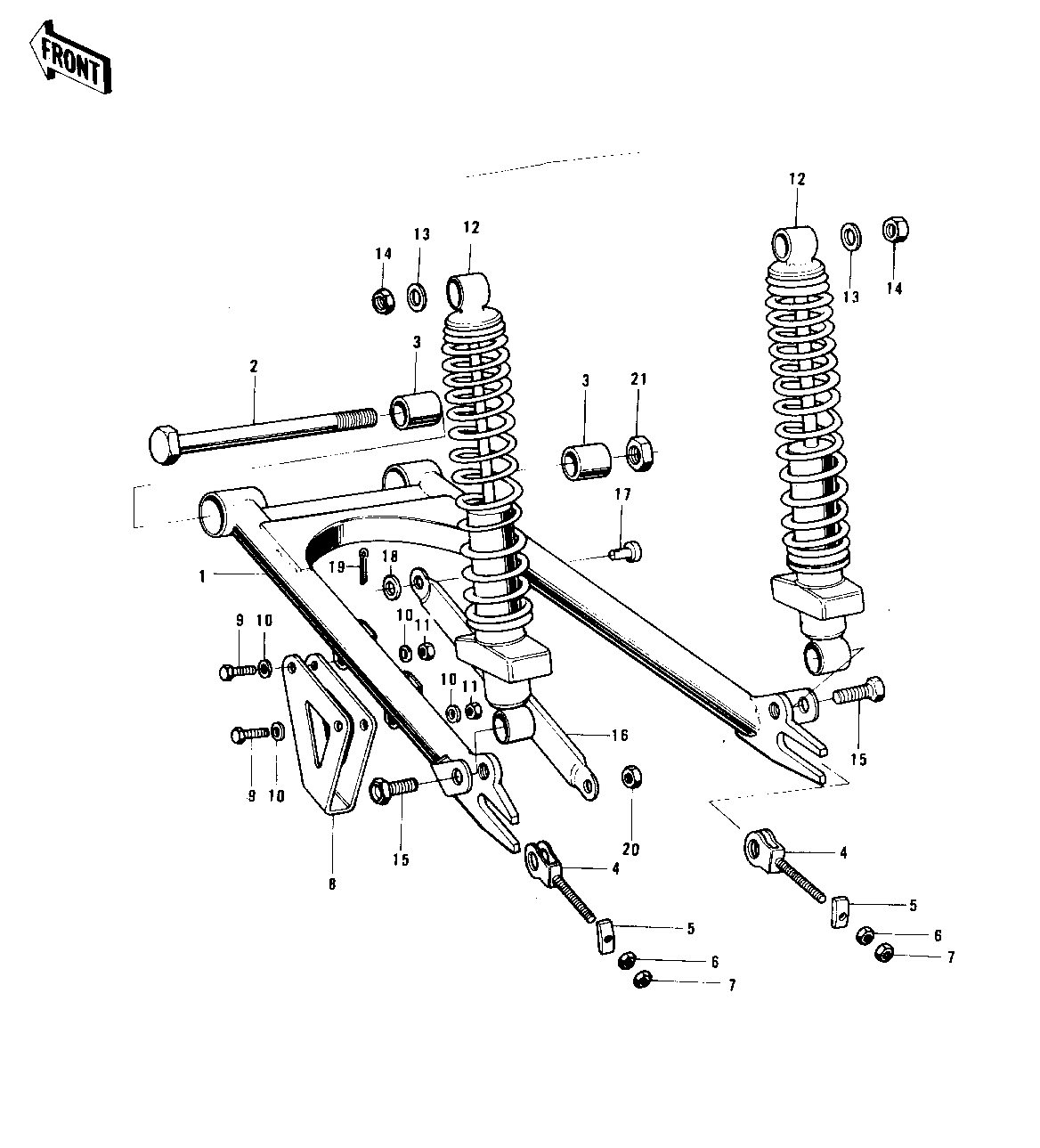

1974 KX450 - SWING ARM/SHOCK ABSORBERS ('74 KX 450)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ARM,SWINGING | 1 | 33001-069 | 1 | ||
| SHAFT,SWING ARM PIVO | 2 | 33032-042 | 1 | ||
| BUSHING,SWING ARM | 3 | 33033-012 | 2 | ||
| ADJUSTER,CHAIN | 4 | 33040-055 | 2 | ||
| PLATE-CHAIN ADJUSTER | 5 | 33041-002 | 2 | ||
| NUT 8MM | 6 | 311G0800 | 2 | ||
| NUT,8MM | 7 | 92019-018 | 2 | ||
| GUARD,CHAIN | 8 | 55020-015 | 1 | ||
| BOLT,HEX HEAD,6X50 | 9 | 110G0650 | 2 | ||
| WASHER 6.5X20X1.6T | 10 | 92022-125 | 4 | ||
| NUT,6MM | 11 | 92019-019 | 2 | ||
| SHOCK ABSBR RR | 12 | 45014-087 | 2 | ||
| WASHER-PL-10.5X26X2. | 13 | 92022-044 | 2 | ||
| NUT,10MM | 14 | 92019-016 | 2 | ||
| BOLT,HEX HEAD,12X35 | 15 | 92001-133 | 2 | ||
| TORQUE LINK,RR BRAKE | 16 | 43007-040 | 1 | ||
| PIN,TORQUE LINK | 17 | 92043-105 | 1 | ||
| WASHER,PLAIN | 18 | 92022-239 | 1 | ||
| PIN COTTER 2.0X20 | 19 | 550D2020 | 1 | ||
| NUT,10MM | 20 | 92019-016 | 1 | ||
| NUT,12MM | 21 | 92019-017 | 1 |
