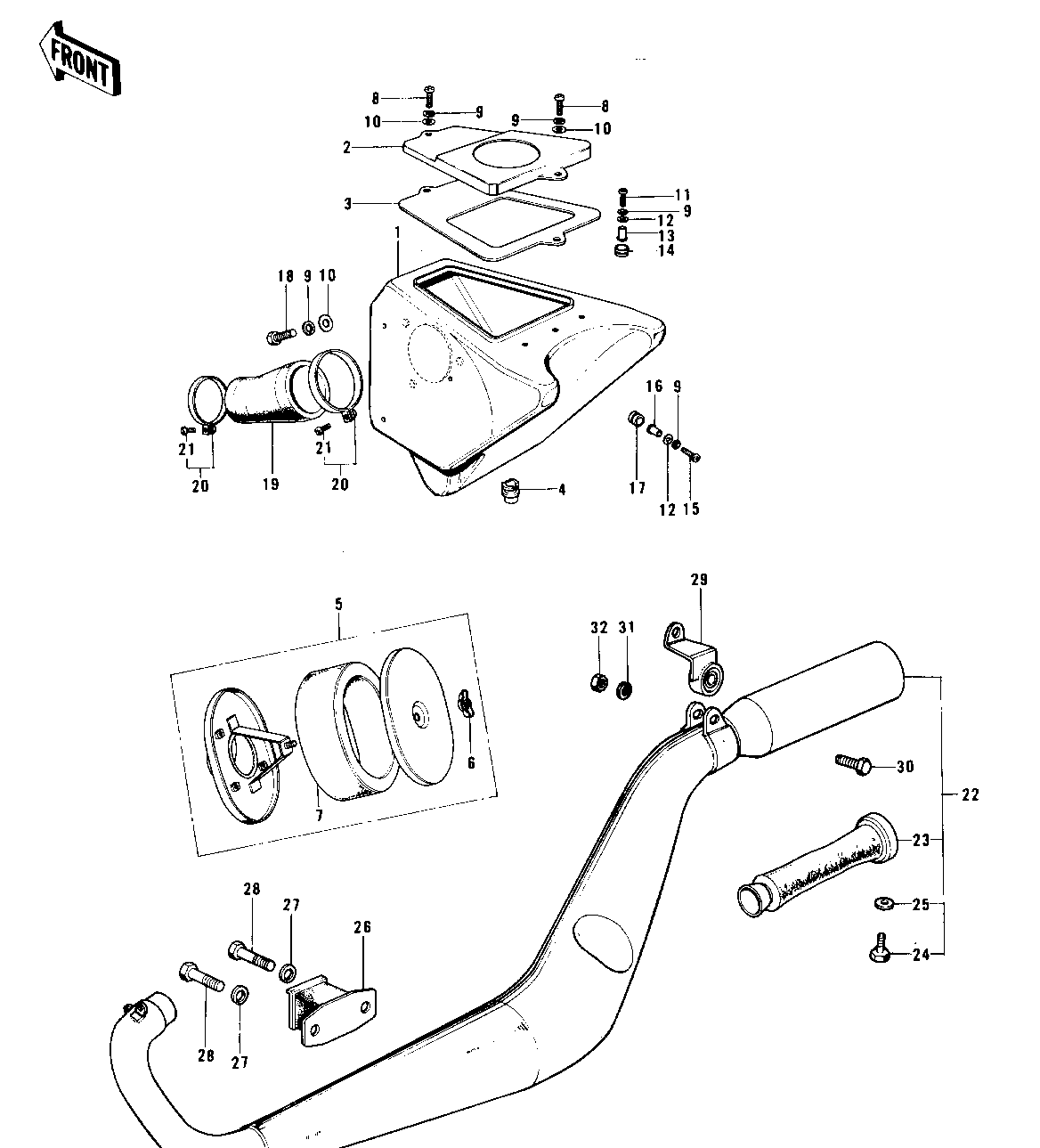

1974 KX450 - AIR CLEANER/MUFFLER ('74 KX 450)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BODY,AIR CLEANER 1 11011-040 1
CAP,AIR CLEANER BODY 2 11012-047 1
GASKET,CLEANER BODY 3 11017-011 1
PLUG,AIR CLEANER BOD 4 92067-020 1
AIR CLEANER ASSY 5 11010-070 1
NUT,6MM 6 92019-019 1
ELEMENT,AIR,CLNR 7 11013-041 1
SCREW PAN HEAD 6X30 8 220B0630 2
WASHER SPRING 6MM 9 461F0600 8
WASHER PLAIN 6MM 10 411B0600 3
SCREW PAN HEAD 6X25 11 220B0625 4
WASHER 6.5X20X1.6T 12 92022-125 6
COLLAR 13 92027-195 2
DAMPER RUBBER 14 92075-207 2
SCREW PAN HEAD 6X35 15 220B0635 2
COLLAR 16 92027-194 4
DAMPER RUBBER 17 92075-208 4
SCREW PAN HEAD 6X12 18 220B0612 3
CONNECTOR 19 11026-008 1
CLAMP,AIR CLEANER 20 92037-115 2
SCREW PAN HEAD 6X35 21 220B0635 2
MUFFLER ASSY 22 18002-131 1
BAFFLE TUBE 23 18033-074 1
BOLT-UPSET,6X12 24 112G0612 1
WASHER LOCK 6MM 25 92024-016 1
DAMPER RUBBER,MUFFLE 26 92075-244 1
WASHER SPRING 8MM 27 461F0800 2
BOLT SMALL 28 114G0812 2
BRACKET,MUFFLER 29 18024-021 1
BOLT,FLANGED,8X35 30 92001-1577 1
WASHER PLAIN 8MM 31 410B0800 1
NUT,8MM 32 311B0800 1
