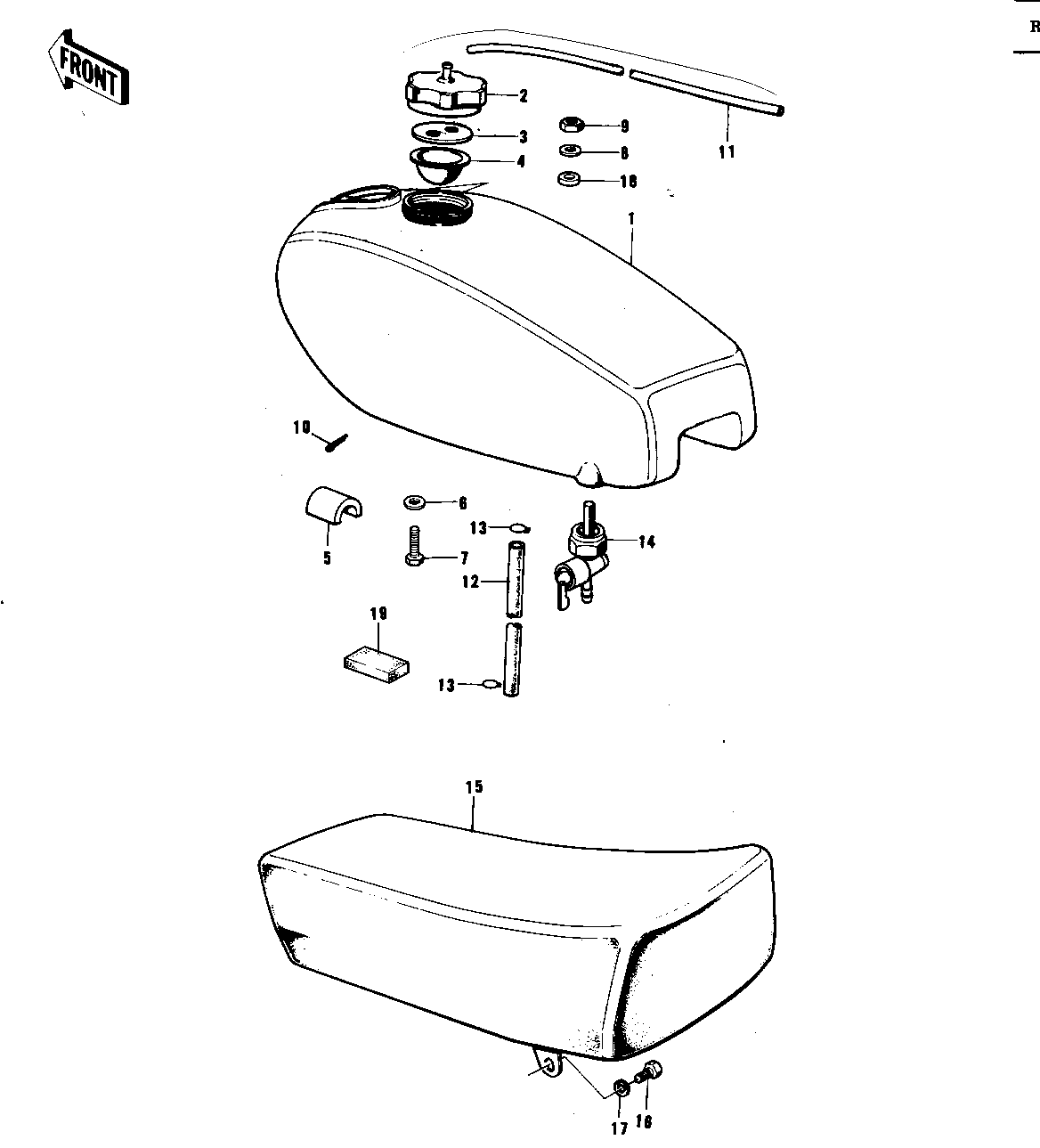

1973 F12MX - FUEL TANK/SEAT ('73 KX 450)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 51001-086 | 1 | ||
| CAP,FUEL TANK | 2 | 51049-021 | 1 | ||
| WASHER | 3 | 51058-003 | 1 | ||
| GASKET,FUEL TANK CAP | 4 | 51059-010 | 1 | ||
| MAT FUEL TANK | 5 | 51067-002 | 2 | ||
| DAMPER RUBBER | 6 | 92075-203 | 1 | ||
| BOLT,FUEL TANK FITT | 7 | 92003-149 | 1 | ||
| WASHER-PL-10.5X26X2. | 8 | 92022-044 | 1 | ||
| NUT,10MM | 9 | 92019-016 | 1 | ||
| PIN-COTTER,2.5X35 | 10 | 550D2535 | 1 | ||
| TUBE-VINYL,5X400 | 11 | 700Q05400 | 1 | ||
| TUBE,FUEL TANK | 12 | 51047-011 | 1 | ||
| CLAMP-PIPE | 13 | 92037-072 | 2 | ||
| FUEL COCK ASSY | 14 | 51023-033 | 1 | ||
| SEAT ASSY | 15 | 53001-085 | 1 | ||
| BOLT-UPSET,10X20 | 16 | 112B1020 | 2 | ||
| WASHER SPRING 10MM | 17 | 461F1000 | 2 | ||
| DAMPER RUBBER,RR FEN | 18 | 92075-121 | 1 | ||
| MAT BATTERY | 19 | 32103-006 | 1 |
