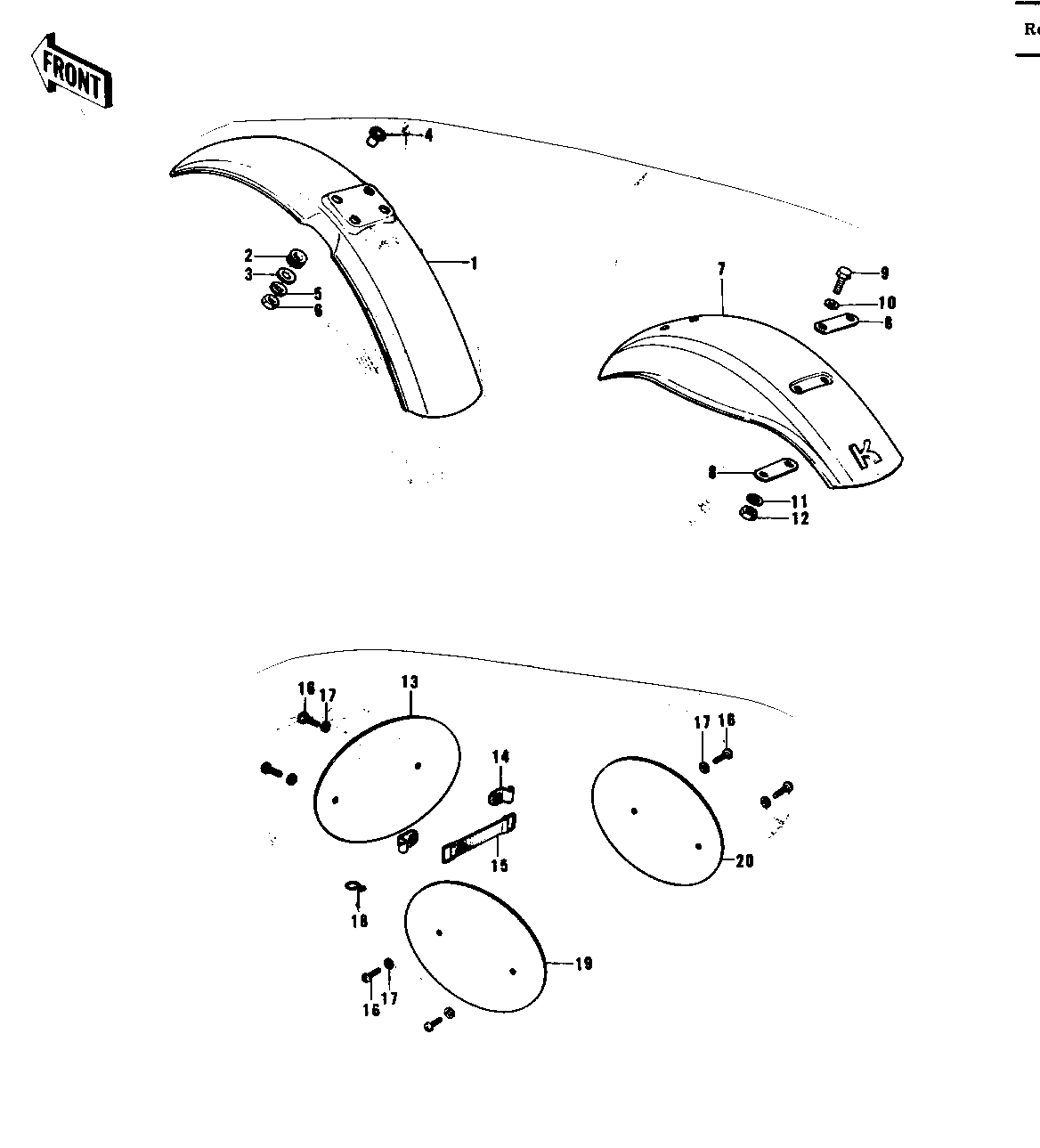

1973 F12MX - FENDERS/NUMBER PLATES ('73 F12MX 450)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 35002-026 | 1 | ||
| DAMPER RUBBER | 2 | 92075-051 | 4 | ||
| WASHER 6.5X20X1.6T | 3 | 92022-125 | 4 | ||
| COLLAR | 4 | 92027-153 | 4 | ||
| WASHER SPRING 6MM | 5 | 461F0600 | 4 | ||
| BOLT-UPSET,6X20 | 6 | 112G0620 | 4 | ||
| BOLT-UPSET,6X20 | 6 | 112G0620 | AL | ||
| UNAVAILABLE IN PRICE BOOK | 7 | 35022-091 | 1 | ||
| BRACKET,REAR FENDER | 8 | 35026-008 | 2 | ||
| BOLT-UPSET,6X16 | 9 | 112G0616 | 2 | ||
| WASHER PLAIN 6MM | 10 | 411B0600 | 2 | ||
| WASHER 6.5X20X1.6T | 11 | 92022-125 | 2 | ||
| NUT,6MM | 12 | 92019-019 | 2 | ||
| PLATE,FRONT NUMBER | 13 | 58029-017 | 1 | ||
| BRACKET | 14 | 58030-007 | 2 | ||
| BAND BATTERY | 15 | 92072-006 | 1 | ||
| SCREW PAN HEAD 6X12 | 16 | 220B0612 | 6 | ||
| WASHER PLAIN | 17 | 92022-024 | 6 | ||
| CLAMP,CABLE | 18 | 92037-092 | 1 | ||
| PLATE,NUMBER | 19 | 58029-019 | 1 | ||
| PLATE,NUMBER | 20 | 58029-020 | 1 |
