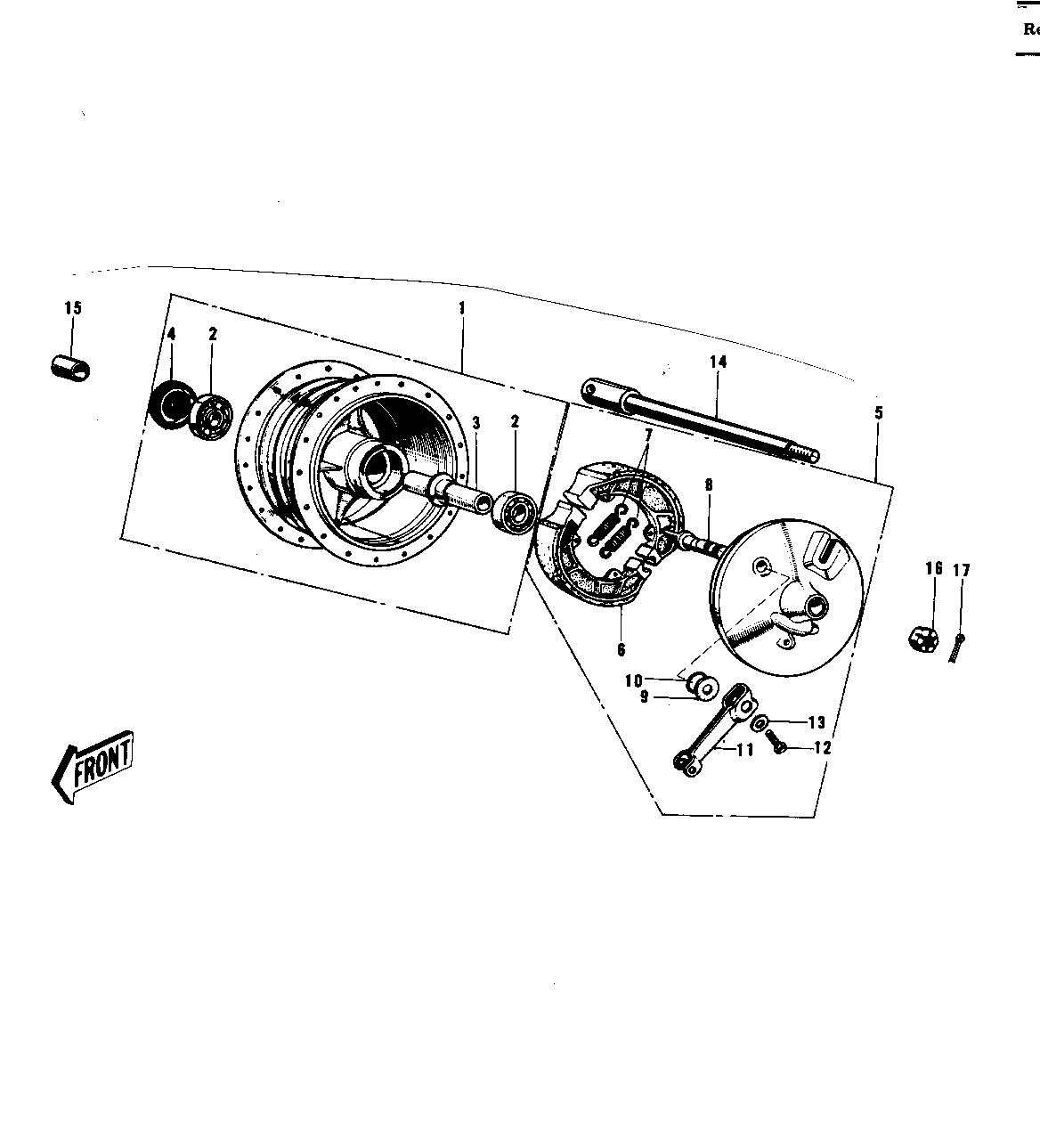

1973 F12MX - FRONT HUB/BRAKE ('73 F12MX 450)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 41034-030 | 1 | ||
| BEARING,BALL, #6201 | 2 | 92045-029 | 2 | ||
| COLLAR | 3 | 41039-023 | 1 | ||
| OIL SEAL,TB18376 | 4 | 654A18376 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 5 | 41035-043 | 1 | ||
| SHOE,BRAKE | 6 | 41048-1007 | 2 | ||
| SPRING,BRAKE SHOE | 7 | 92081-1766 | 2 | ||
| CAM SHAFT,BRAKE | 8 | 41050-014 | 1 | ||
| WASHER | 9 | 92022-257 | 1 | ||
| "O" RING,12MM | 10 | 670B2012 | 1 | ||
| LEVER,FRT BRK CAM | 11 | 41053-018 | 1 | ||
| BOLT-UPSET | 12 | 112G0630 | 1 | ||
| WASHER PLAIN 6MM | 13 | 410B0600 | 1 | ||
| AXLE,FRONT | 14 | 41068-041 | 1 | ||
| COLLAR,FRONT AXLE | 15 | 41069-023 | 1 | ||
| NUT CASTLE 12MM | 16 | 321B1200 | 1 | ||
| PIN COTTER 3.0X25 | 17 | 550D3025 | 1 |
