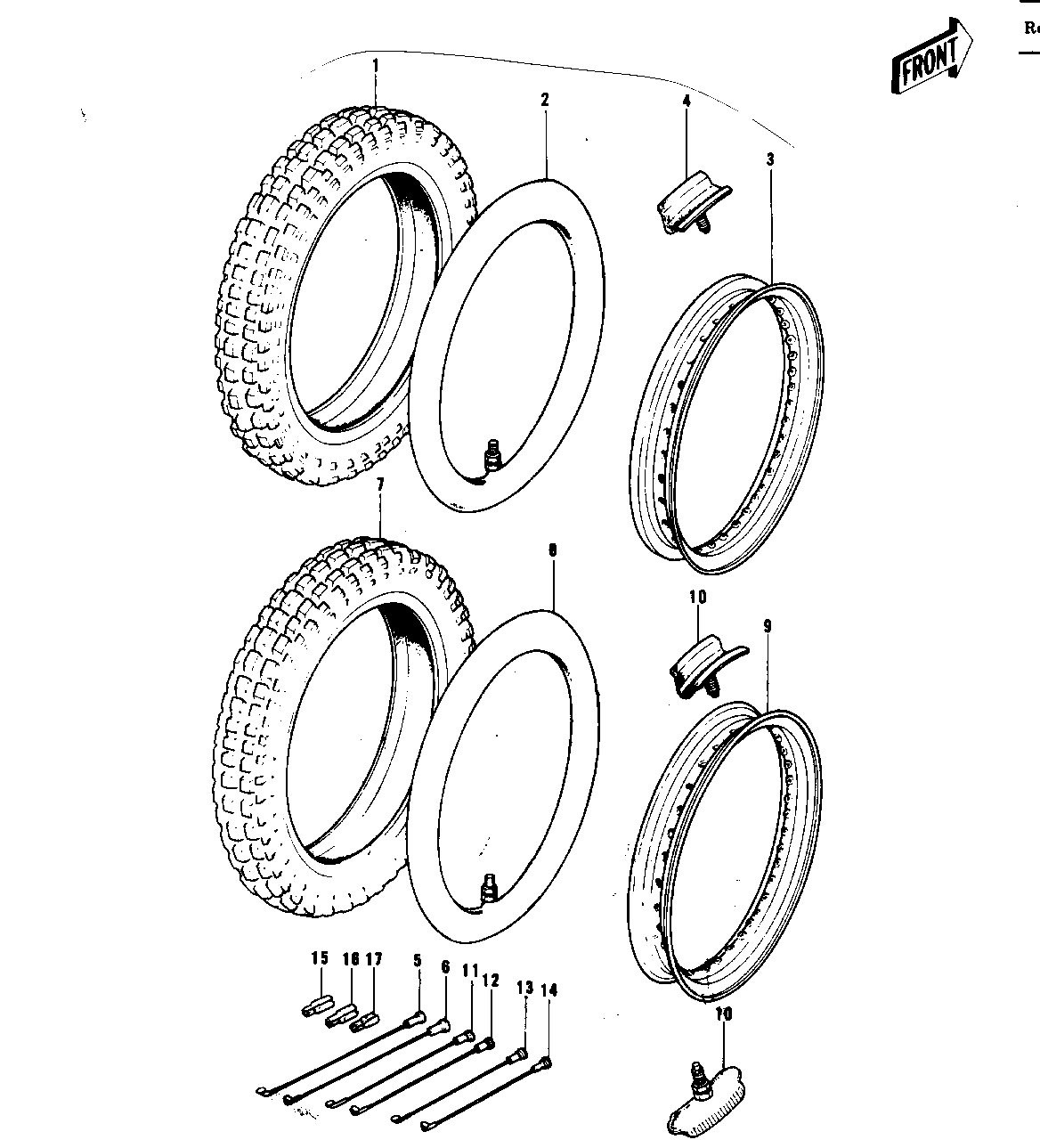

1973 F12MX - WHEELS/TIRES ('73 F12MX 450)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 41017-010 | 1 | ||
| TUBE,2.75/3.70-21 | 2 | 41022-1021 | 1 | ||
| *** N.L.A.*** (Canada) | 3 | 41025-071 | 1 | ||
| PROTECTOR BEAD | 4 | 41024-004 | 1 | ||
| SPOKE-ASY,FR INNER | 5 | 41027-061 | 18 | 223 M/M X 99 | |
| SPOKE-ASY FR OUTER | 6 | 41028-061 | 18 | 227.5 M/M X 84 | |
| UNAVAILABLE IN PRICE BOOK | 7 | 41017-011 | 1 | ||
| TUBE 350/375/410-18 | 8 | 41022-031 | 1 | ||
| RIM,ALLOY 2.15B X 18 | 9 | 41025-072 | 1 | ||
| PROTECTOR-BEAD 1.85B | 10 | 41024-007 | 2 | ||
| SPOKE-ASY,RR INNER | 11 | 41027-062 | 9 | 191 M/M X 110 | |
| SPOKE-ASY,RR INNER | 12 | 41027-067 | 9 | 192.5 M/M X 110 | |
| SPOKE-ASY RR OUTER | 13 | 41028-062 | 9 | 188.5 M/M X 84 | |
| SPOKE-ASY RR OUTER | 14 | 41028-067 | 9 | 190 M/M X 84 | |
| WEIGHT,BALANCE,10G | 15 | 41075-1007 | AR | ||
| WEIGHT,BALANCE,20G | 16 | 41075-1008 | AR | ||
| WEIGHT,BALANCE,30G | 17 | 41075-1009 | AR |
