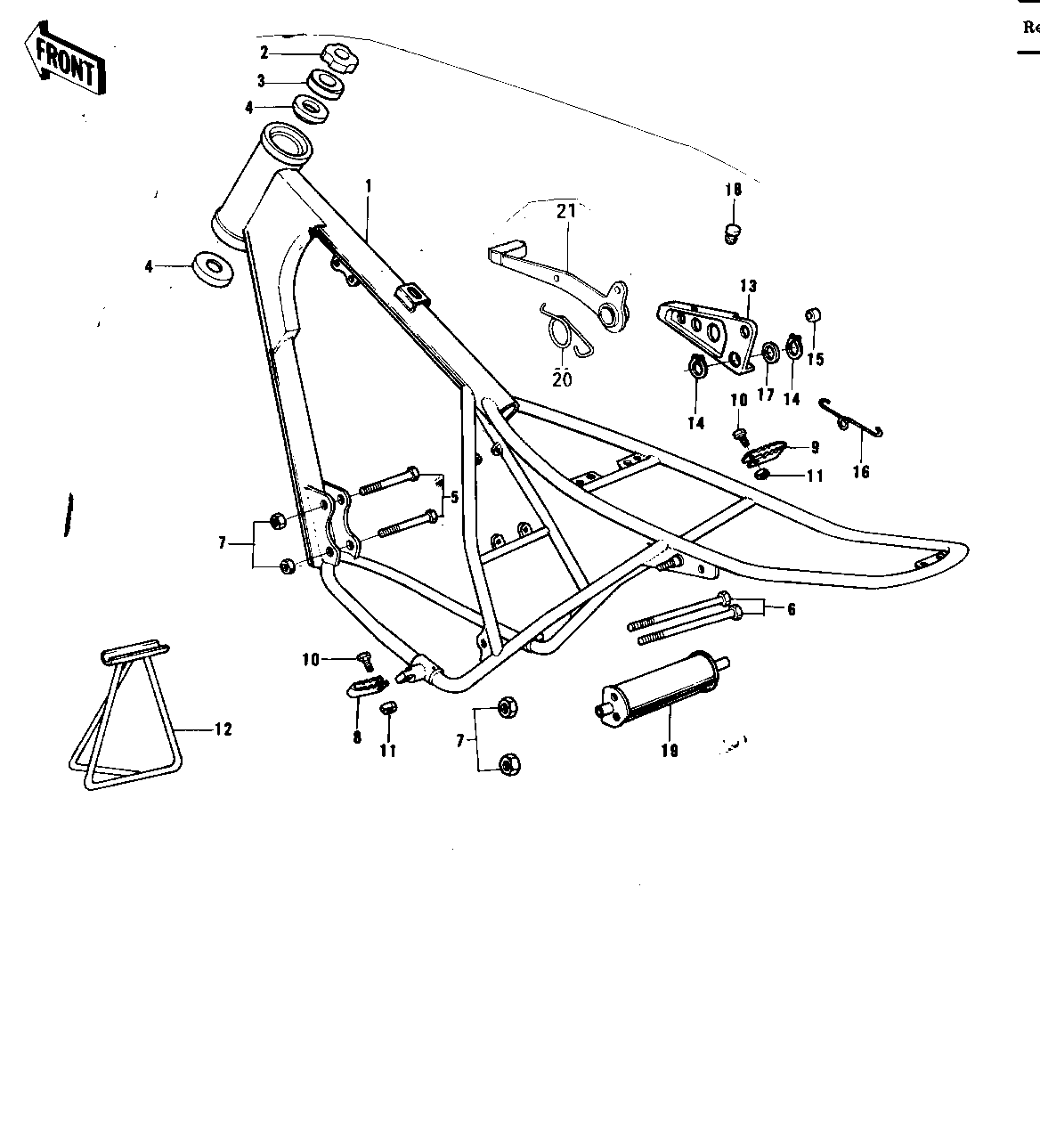

1973 F12MX - FRAME/FRAME FITTINGS ('73 F12MX 450)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 32002-068 | 1 | ||
| NUT | 2 | 92015-1546 | 1 | ||
| CAP,STEERING STEM | 3 | 46098-014 | 1 | ||
| BEARING,STREERIN STE | 4 | 92047-016 | 2 | ||
| BOLT,HEX HEAD,10X65 | 5 | 92001-1255 | 2 | ||
| BOLT | 6 | 92003-133 | 2 | ||
| NUT,10MM | 7 | 92019-016 | 4 | ||
| BAR,L.H FOOTREST | 8 | 34028-013 | 1 | ||
| BAR,R.H FOOTREST | 9 | 34028-014 | 1 | ||
| BOLT,HEX HEAD,8X30 | 10 | 92003-137 | 2 | ||
| NUT,LOCK,8MM | 11 | 92015-1124 | 2 | ||
| STAND,PORTABLE | 12 | 34033-013 | 1 | ||
| PEDAL-BRAKE | 13 | 43001-051 | 1 | ||
| CIRCLIP,22MM | 14 | 480J2200 | 2 | ||
| COLLAR,BRAKE PEDAL | 15 | 92027-197 | 1 | ||
| SPRING,BRK PEDAL RTN | 16 | 43005-024 | 1 | ||
| WASHER,PLAIN,30MM | 17 | 92022-264 | 2 | ||
| DAMPER RUBBER | 18 | 92075-225 | 1 | ||
| PLATE,ENGINE BASE | 19 | 32117-003 | 1 | ||
| SPRING,BRAKE PEDAL | 20 | 43005-027 | 1 | ||
| PEDAL,BRAKE | 21 | 43001-061 | 1 |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,STEERING STEM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,STREERIN STE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,10X65 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BAR,L.H FOOTREST | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAR,R.H FOOTREST | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,8X30 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,8MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STAND,PORTABLE | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PEDAL-BRAKE | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,22MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,BRAKE PEDAL | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRK PEDAL RTN | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,30MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,ENGINE BASE | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE PEDAL | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PEDAL,BRAKE | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
