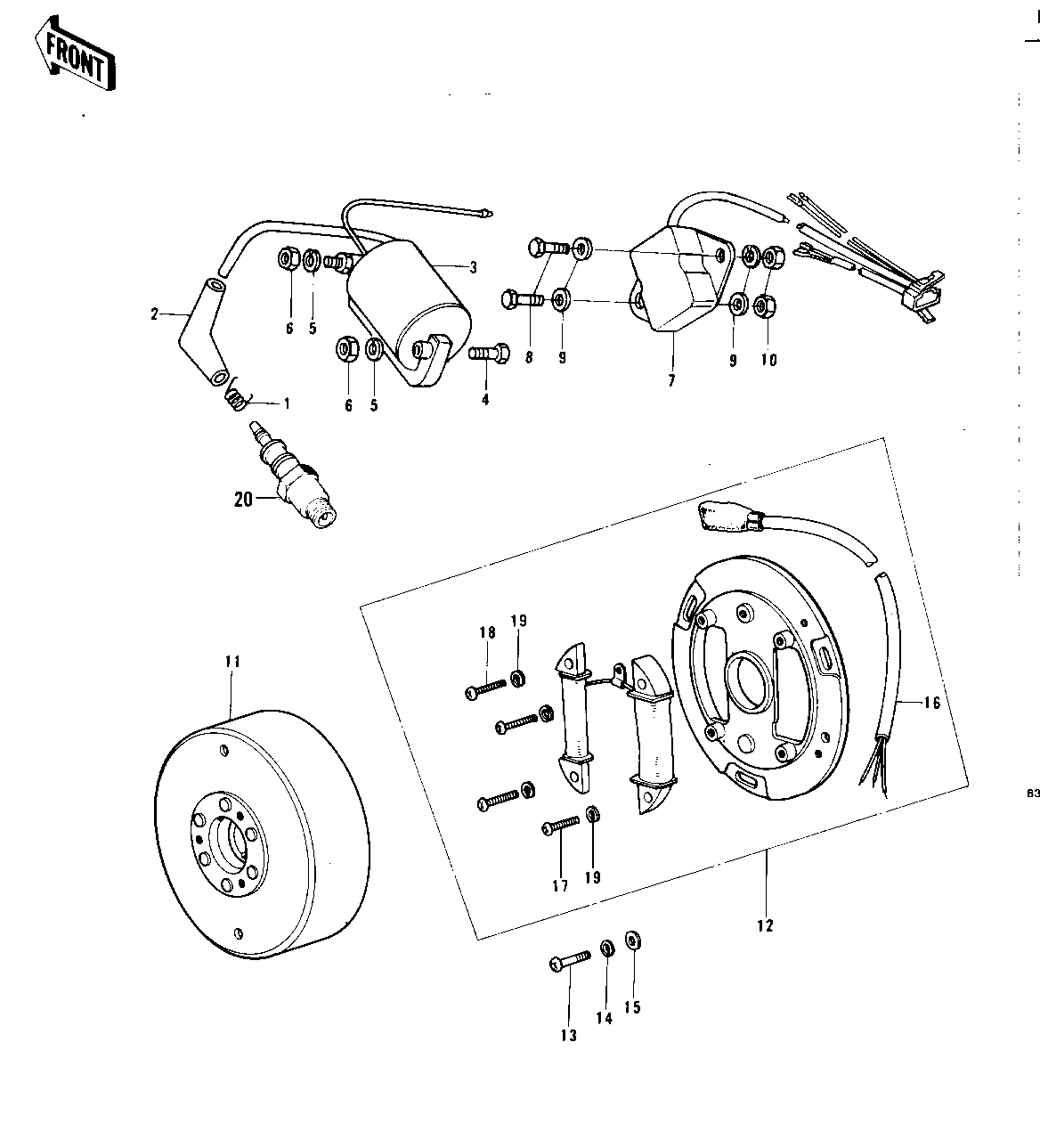

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPRING-SPARK PLUG CA | 1 | 92101-001 | 1 | ||
| CAP SPARK PLUG | 2 | 21130-009 | 1 | ||
| COIL,IGNITION | 3 | 21121-067 | 1 | ||
| BOLT, HEX HEAD 5X22 | 4 | 110B0522A | 2 | ||
| WASHER PLAIN 5MM | 5 | 411B0500 | 2 | ||
| NUT,5MM | 6 | 311B0500 | 2 | ||
| IGNITION UNIT | 7 | 21119-013 | 1 | ||
| IGNITION UNIT | 7 | 21119-013 | 1 | ||
| BOLT-UPSET | 8 | 112G0618 | 2 | ||
| WASHER SPRING 6MM | 9 | 461F0600 | 2 | ||
| NUT 6MM | 10 | 311B0600 | 2 | ||
| FLYWHEEL | 11 | 21050-014 | 1 | ||
| STATOR ASST | 12 | 21003-019 | 1 | ||
| SCREW PAN HEAD 5X20 | 13 | 220B0520 | 3 | ||
| WASHER SPRING 5MM | 14 | 461F0500 | 3 | ||
| WASHER PLAIN 5MM | 15 | 411B0500 | 3 | ||
| WIRING HARNESS,MAGNT | 16 | 21029-026 | 1 | ||
| SCREW-PAN HEAD,4X20 | 17 | 220E0420A | 2 | ||
| SCREW PAN HEAD 4X16 | 18 | 220B0416 | 2 | ||
| WASHER SPRING 4MM | 19 | 461F0400 | 4 | ||
| SPARK PLUG B9HS1 | 20 | B9HS1 | 1 | 1.0MM GAP | |
| SPARK PLUG B9HS1 | 20 | B9HS1 | AL | ||
| SPK PLG B8HV | 20 | B8HV | AL |
| SPRING-SPARK PLUG CA | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP SPARK PLUG | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL,IGNITION | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT, HEX HEAD 5X22 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 5MM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| IGNITION UNIT | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| IGNITION UNIT | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FLYWHEEL | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STATOR ASST | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X20 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 5MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS,MAGNT | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN HEAD,4X20 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 4X16 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 4MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPARK PLUG B9HS1 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | 1.0MM GAP |
| SPARK PLUG B9HS1 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | AL |
| DESTINATION | |
| REMARKS | |
| SPK PLG B8HV | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | AL |
| DESTINATION | |
| REMARKS | |
