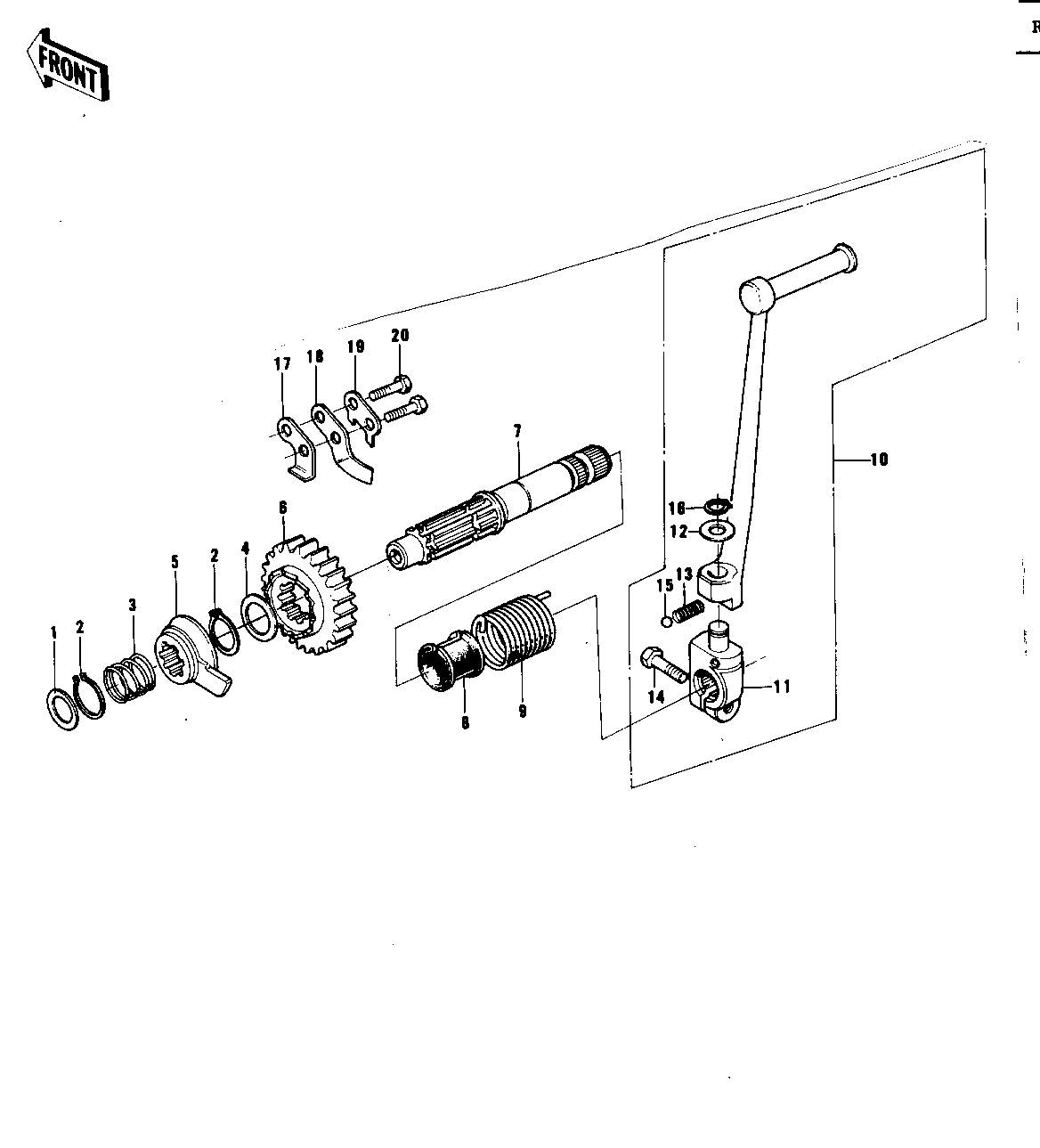

1973 F12MX - KICKSTARTER MECHANISM ('73 F12MX 450)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER | 1 | 92022-252 | 1 | I.D=20.5 | |
| CIRCLIP | 2 | 92033-026 | 2 | ||
| SPRING | 3 | 92081-097 | 1 | ||
| WASHER-PLAIN 25MM | 4 | 92022-159 | 1 | ||
| RATCHET | 5 | 13078-007 | 1 | ||
| GEAR,KICKSTARTER | 6 | 13068-029 | 1 | ||
| SHAFT,KICKSTARTER | 7 | 13066-031 | 1 | ||
| GUIDE,KICKSTARTER | 8 | 13070-007 | 1 | ||
| SPRING-KICKSTARTER | 9 | 92082-003 | 1 | ||
| PEDAL ASSY | 10 | 13058-046 | 1 | ||
| BOSS-KICK PEDAL | 11 | 13061-014 | 1 | ||
| WASHER BRAKE PEDAL | 12 | 92022-085 | 1 | ||
| SPRING KICK PEDAL | 13 | 92081-020 | 1 | ||
| BOLT-HEX HEAD,10X25 | 14 | 114B1025 | 1 | ||
| BALL STEEL 1/4' | 15 | 600A0800 | 1 | ||
| CIRCLIP 10MM | 16 | 482J0100 | 1 | ||
| STOPPER,KICKSTARTER | 17 | 13072-014 | 1 | ||
| GUIDE,KICKSTARTER | 18 | 13206-1003 | 1 | ||
| WASHER,LOCK | 19 | 92031-008 | 1 | ||
| BOLT-UPSET,6X16 | 20 | 112G0616 | 2 | ||
| BOLT-UPSET,6X16 | 20 | 112G0616 | AL |
