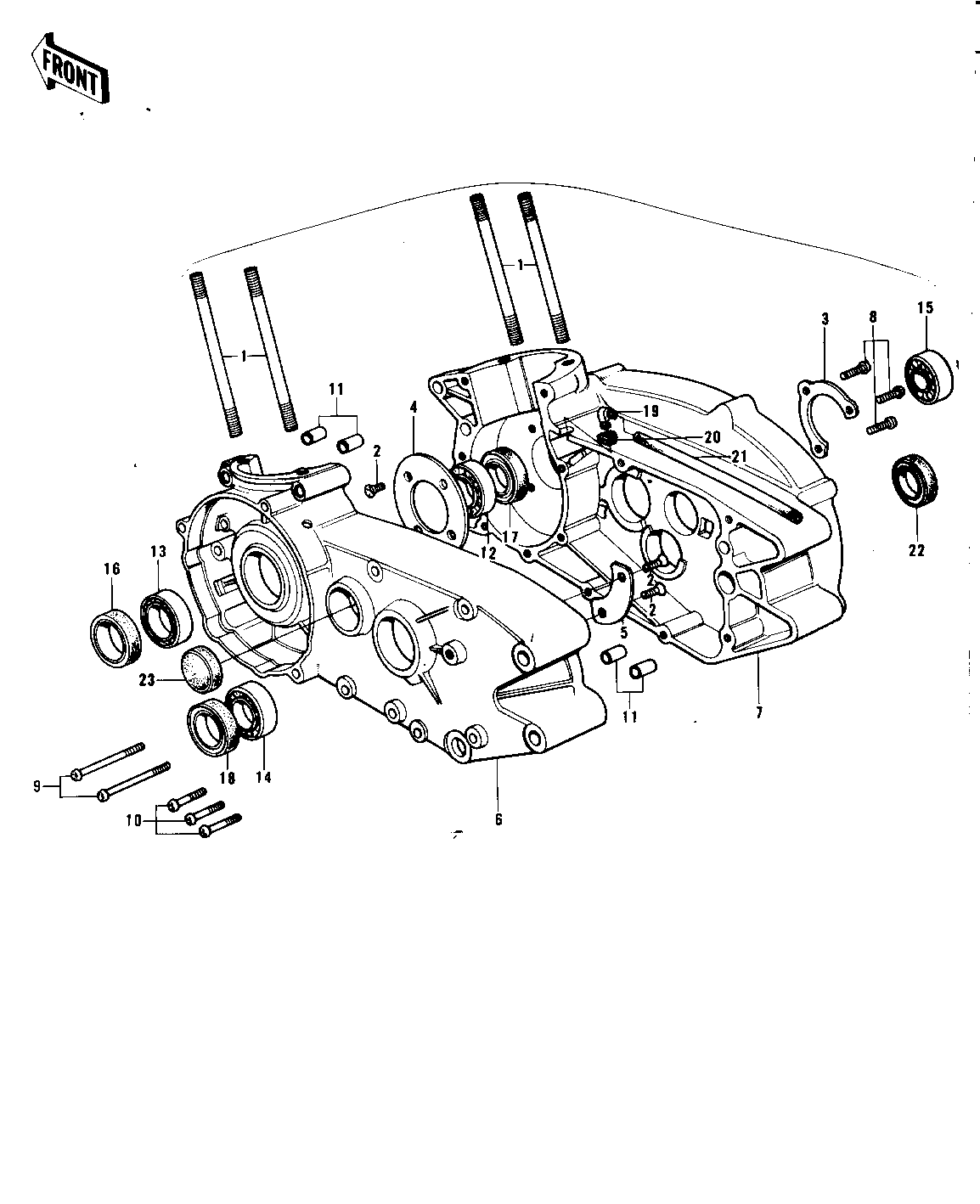

1973 F12MX - CRANKCASE ('73 F12MX 450)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STUD 10X90 | 1 | 172G1090 | 4 | ||
| SCREW CNTSNK HD 6X16 | 2 | 221B0616 | 6 | ||
| PLATE | 3 | 14014-025 | 1 | ||
| PLATE | 4 | 14014-026 | 1 | ||
| PLATE | 5 | 14014-027 | 1 | ||
| CRANKCASE,L.H | 6 | 14002-094 | 1 | ||
| CRANKCASE,R.H | 7 | 14003-067 | 1 | ||
| SCREW PAN HEAD 6X14 | 8 | 220B0614 | 3 | ||
| SCREW PAN HEAD 6X50 | 9 | 220B0650 | 5 | ||
| SCREW PAN HEAD 6X70 | 10 | 220B0670 | 7 | ||
| PIN,DOWEL,10X8.2X14 | 11 | 92043-1037 | 4 | ||
| BEARING-BALL | 12 | 92045-016 | 1 | ||
| BEARING,BALL,#6306 | 13 | 92045-037 | 1 | ||
| BEARING BALL #6205 | 14 | 601B6205 | 1 | ||
| BEARING BALL #6304 | 15 | 601B6304 | 1 | ||
| OIL SEAL,TB30508 | 16 | 92050-057 | 1 | ||
| OIL SEAL,TB35508 | 17 | 653B355008 | 1 | ||
| OIL SEAL TB3040 | 18 | 92050-033 | 1 | ||
| BREATHER ASSY | 19 | 14069-1001 | 1 | ||
| GROMMET | 20 | 92071-042 | 1 | ||
| PIPE-BREATHER | 21 | 92059-061 | 1 | ||
| BUSHING | 22 | 92028-131 | 1 | O.D=35M/M | |
| CAP,L.H.CRANKCASE | 23 | 92073-024 | 1 |
| STUD 10X90 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW CNTSNK HD 6X16 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKCASE,L.H | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKCASE,R.H | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X50 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X70 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,10X8.2X14 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL,#6306 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6205 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6304 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,TB30508 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,TB35508 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL TB3040 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREATHER ASSY | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-BREATHER | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | O.D=35M/M |
| CAP,L.H.CRANKCASE | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
