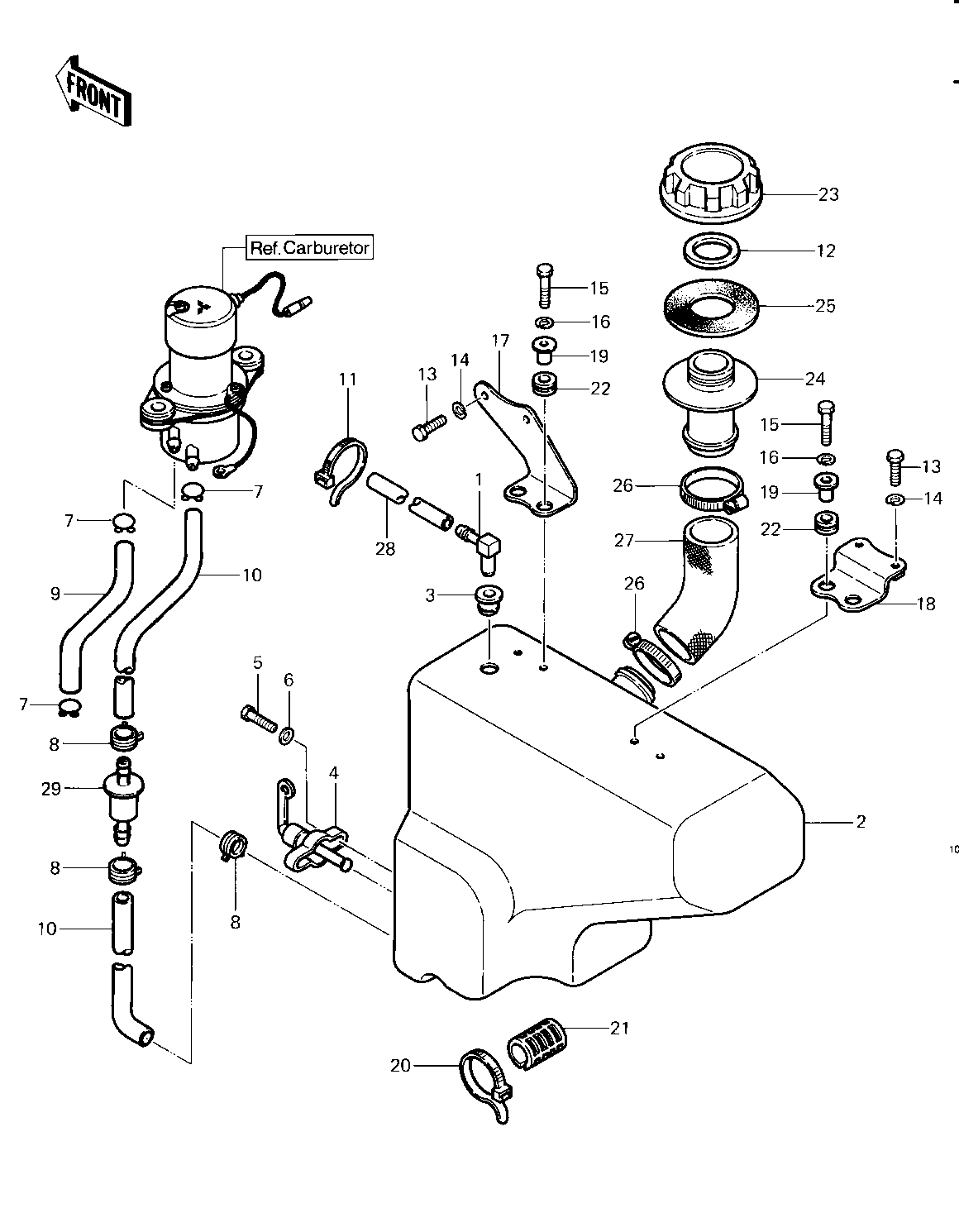

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BREATHER | 1 | 14069-003 | 1 | ||
| TANK-FUEL,GRAY | 2 | 51001-4005-8L | 1 | ||
| DAMPER,FUEL TANK | 3 | 92075-4029 | 1 | ||
| TAP-ASSY-FUEL | 4 | 51023-1115 | 1 | ||
| BOLT-HEX HEAD,6X16 | 5 | 92001-114 | 2 | ||
| WASHER-PLAIN | 6 | 92022-183 | 2 | ||
| CLAMP,TUBE | 7 | 92037-1682 | 3 | ||
| CLAMP | 8 | 92037-4009 | 3 | ||
| TUBE,5.3X10.5X450 | 9 | 92059-4030 | 1 | ||
| TUBE,5.3X10.5X85 | 10 | 92059-4029 | 2 | ||
| BAND | 11 | 92072-4004 | 5 | ||
| GASKET,FUEL TANK CAP | 12 | 11009-3020 | 1 | ||
| BOLT-UPSET 6X14 | 13 | 112B0614 | 4 | ||
| WASHER SPRING 6MM | 14 | 461F0600 | 4 | ||
| BOLT-UPSET,6X20 | 15 | 112G0620 | 4 | ||
| WASHER SPRING 6MM | 16 | 461F0600 | 4 | ||
| BRACKET-TANK | 17 | 32052-4006 | 1 | ||
| BRACKET-TANK | 18 | 32052-4007 | 1 | ||
| COLLAR | 19 | 92027-1045 | 4 | ||
| BAND | 20 | 92072-3505 | 2 | ||
| DAMPER RUBBER | 21 | 92075-084 | 2 | ||
| DAMPER RUBBER | 22 | 92075-277 | 4 | ||
| CAP,FUEL TANK | 23 | 51049-3001 | 1 | ||
| FILLER,FUEL TANK | 24 | 59231-3001 | 1 | ||
| WASHER-RUBBER | 25 | 92022-4024 | 1 | ||
| HOSE CLAMP | 26 | 92037-3009 | 2 | ||
| TUBE,TANK | 27 | 92059-4013 | 1 | ||
| TUBE-BREATHER | 28 | 92059-4027 | 1 | ||
| FILTER-FUEL | 29 | 49019-4001 | 1 |
