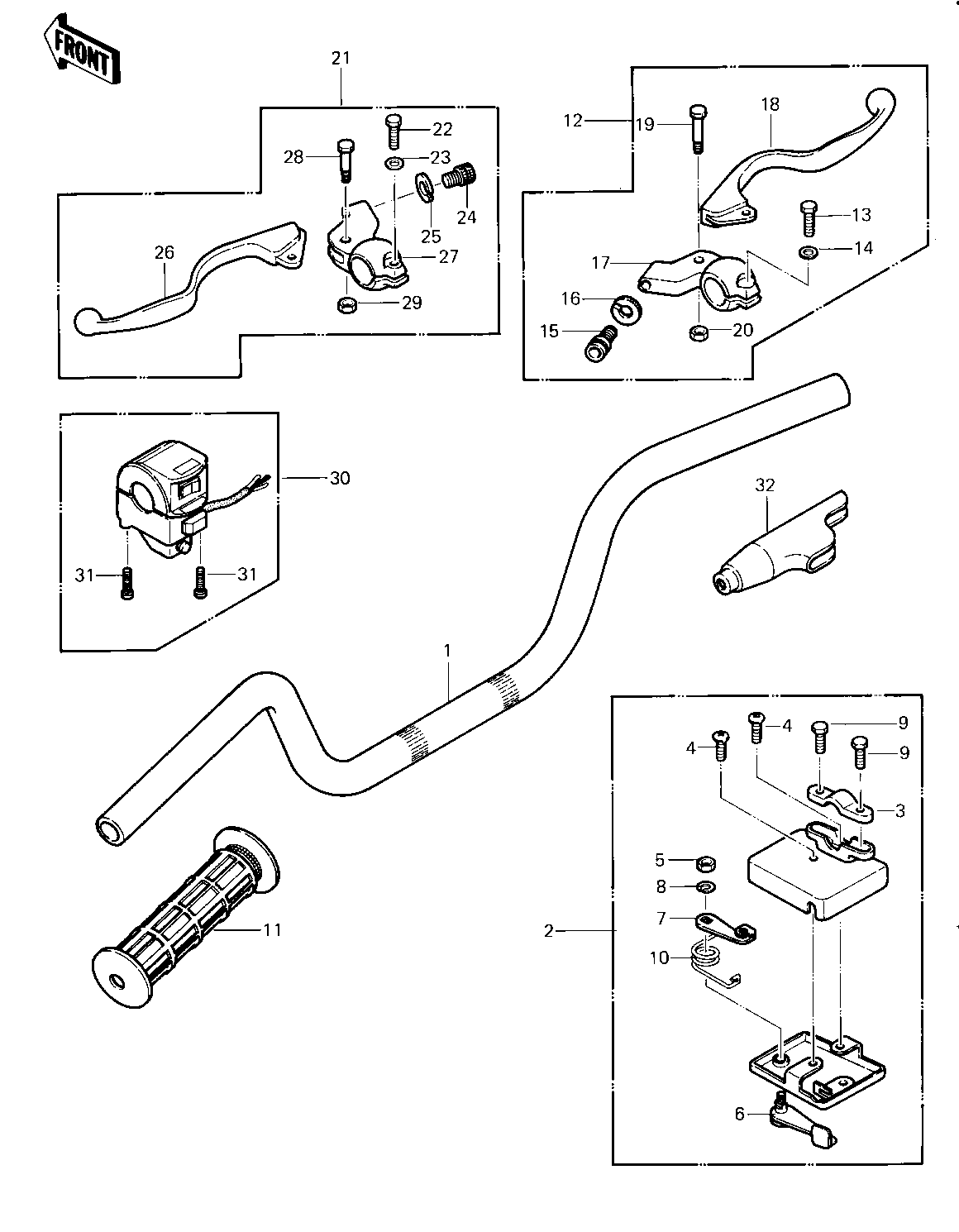

1983 KLT250 - HANDLEBAR ('83 A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLEBAR 1 46003-4004 1
LEVER-ASSY-THROTTLE 2 39074-4001 1
HOLDER,THROTTLE LEVER 3 13091-4002 1
SCREW PAN HEAD 6X10 4 220B0610 2
NUT 6MM 5 311B0600 1
LEVER THROTTLE OUTER 6 39075-4001 1
LEVER THROTTLE INNER 7 39075-4002 1
WASHER SPRING 6MM 8 461F0600 1
BOLT HEX HEAD 9 92001-4011 2
SPRING RETURN 10 92081-4007 1
GRIP,RH 11 46075-4003 2
LEVER ASSY,FRONT BRK 12 46076-1010 1
BOLT HEX HEAD 6X25 13 110N0625 1
WASHER PLAIN 6MM 14 410B0600 1
SCREW CABLE ADJUST 15 46055-003 1
NUT-LOCK 16 46056-005 1
HOLDER,FR LEVER,F.BLK 17 46060-011-21 1
LEVER,FRONT BRAKE 18 46092-1014 1
BOLT,HEX HEAD,5X22 19 92007-046 1
NUT-LOCK,5MM 20 92019-014 1
LEVER ASSY,CLUTCH 21 46076-1011 1
BOLT HEX HEAD 6X25 22 110N0625 1
WASHER PLAIN 6MM 23 410B0600 1
SCREW CABLE ADJUST 24 46055-003 1
NUT-LOCK 25 46056-005 1
LEVER,CLUTCH 26 46092-1015 1
HOLDER,CL LEVER,F.BLK 27 46094-015-21 1
BOLT,HEX HEAD,5X22 28 92007-046 1
NUT-LOCK,5MM 29 92019-014 1
HOUSING-ASSY-CONTROL, 30 46091-1393 1
SCREW-PAN-CROS 31 220B0535 4
BOOTS,LEVER HOLDER 32 49006-1017 2
