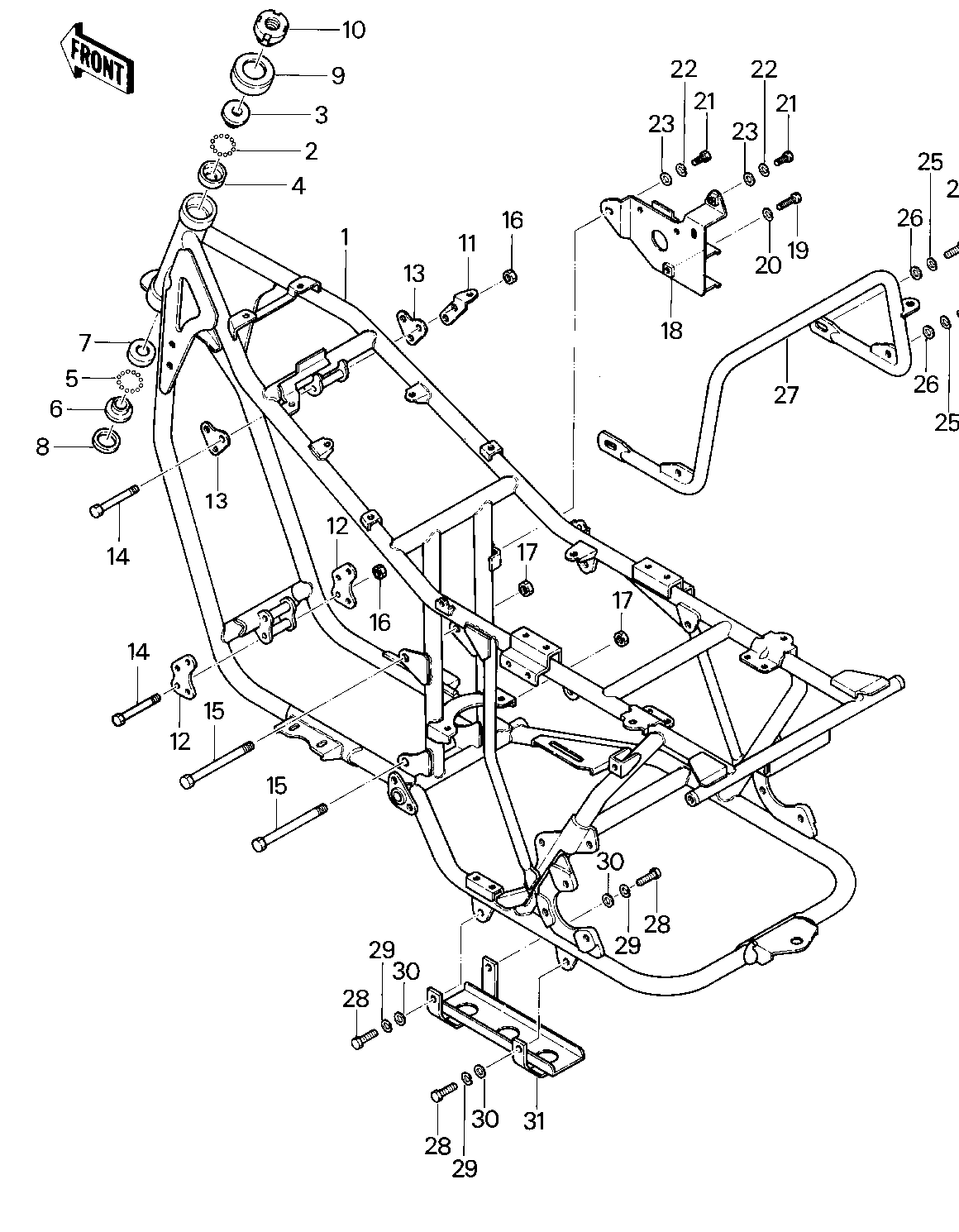

1983 KLT250 - FRAME/FRAME FITTINGS ('83 A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME | 1 | 32002-4013 | 1 | ||
| BALL STEEL 3/16' | 2 | 600A0600 | 23 | ||
| CONE,STRG STM BRG,UP | 3 | 92047-014 | 1 | ||
| RACE,STRG STM BEARING | 4 | 92048-009 | 1 | ||
| BALL STEEL 1/4' | 5 | 600A0800 | 19 | ||
| CONE STERNG BERG LOW | 6 | 92047-010 | 1 | ||
| RACE STEERING BEARING | 7 | 92048-005 | 1 | ||
| SEAL,STEERING STEM | 8 | 44010-027 | 1 | ||
| CAP,STEERING STEM | 9 | 46098-012 | 1 | ||
| NUT,STEERING STEM | 10 | 92015-4007 | 1 | ||
| BRACKET,IGNITION COIL | 11 | 11034-4196 | 1 | ||
| BRACKET-ENGINE | 12 | 32029-4022 | 2 | ||
| BRACKET-ENGINE | 13 | 32029-4023 | 2 | ||
| BOLT-FLANGE | 14 | 92001-1582 | 7 | ||
| BOLT, FLANGED, 10X110 | 15 | 92001-1602 | 2 | ||
| NUT,LOCK,8MM | 16 | 92015-1124 | 7 | ||
| NUT,LOCK,10MM | 17 | 92019-021 | 2 | ||
| BRACKET,ELECTRO BASE | 18 | 11034-4216 | 1 | ||
| BOLT-UPSET,6X16 | 19 | 112G0616 | 1 | ||
| WASHER SPRING 6MM | 20 | 461F0600 | 1 | ||
| BOLT-UPSET 6X14 | 21 | 112B0614 | 2 | ||
| WASHER SPRING 6MM | 22 | 461F0600 | 2 | ||
| WASHER PLAIN 6MM | 23 | 411B0600 | 2 | ||
| BOLT,8X20 | 24 | 115G0820 | 4 | ||
| WASHER SPRING 8MM | 25 | 461F0800 | 4 | ||
| WASHER PLAIN 8MM | 26 | 410B0800 | 4 | ||
| GUARD,REAR | 27 | 55020-4015 | 1 | ||
| BOLT,8X20 | 28 | 115G0820 | 3 | ||
| WASHER SPRING 8MM | 29 | 461F0800 | 3 | ||
| WASHER PLAIN 8MM | 30 | 410B0800 | 3 | ||
| GUARD | 31 | 55020-4016 | 1 |
