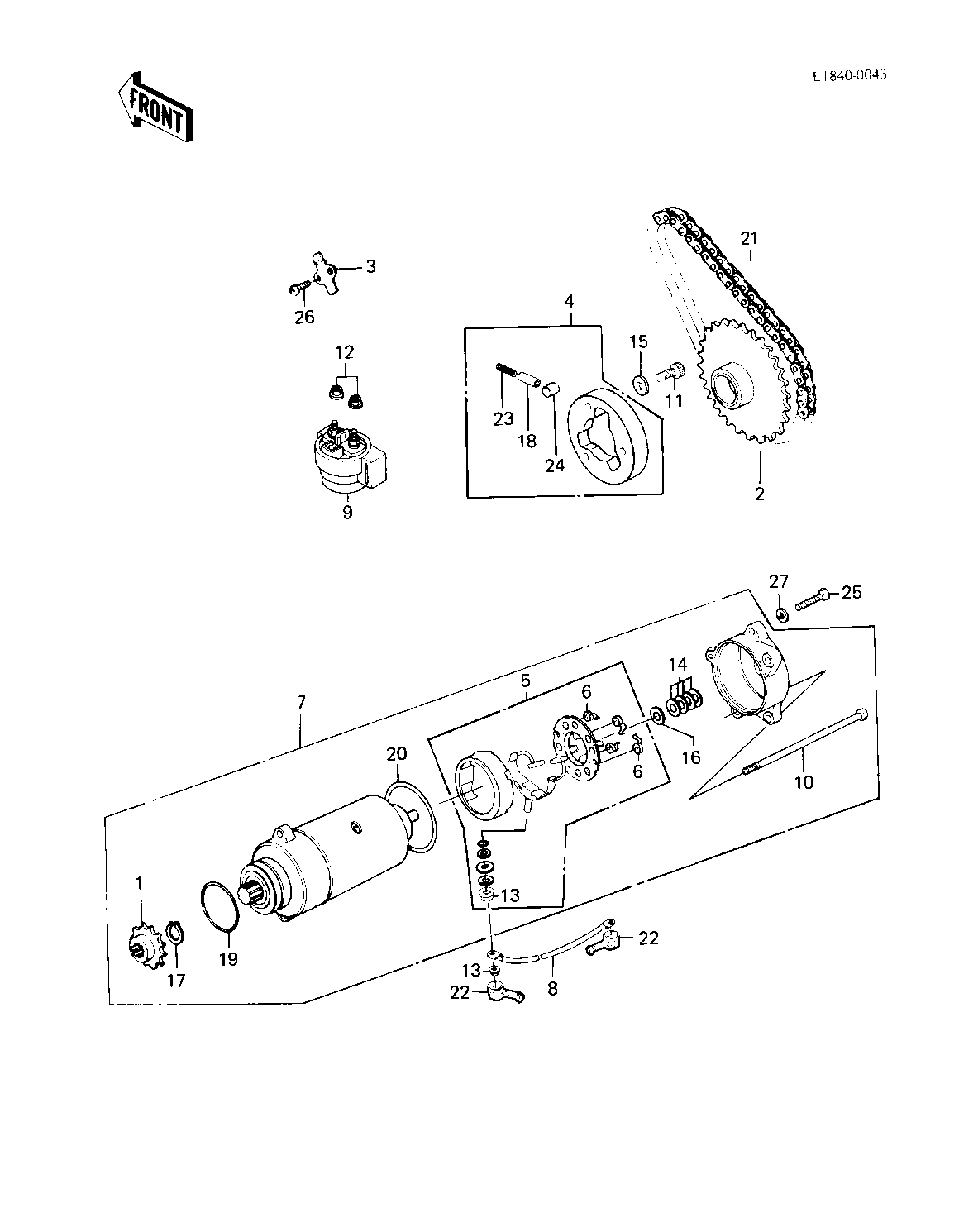

1983 KLT250 - STARTER MOTOR/STARTER CLUTCH ('83 A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPROCKET,STARTER MOTO | 1 | 12046-1004 | 1 | ||
| SPROCKET,STARTER | 2 | 12046-1023 | 1 | ||
| PLATE | 3 | 13169-1010 | 1 | ||
| CLUTCH ASSY,STARTING | 4 | 13193-1006 | 1 | ||
| BRUSH,CARBON | 5 | 21039-1053 | 1 | ||
| SPRING-BRUSH | 6 | 21040-1003 | 4 | ||
| STARTER-ELECTRIC | 7 | 21163-1036 | 1 | ||
| WIRE-LEAD,STARTER MOT | 8 | 26011-1201 | 1 | ||
| SWITCH,STARTER | 9 | 27010-1314 | 1 | ||
| SCREW,PAN HEAD,6X130 | 10 | 92001-1046 | 2 | ||
| BOLT | 11 | 120P0816 | 3 | ||
| NUT-6MM | 12 | 92015-1078 | 2 | ||
| NUT-6MM | 13 | 92015-1078 | 2 | ||
| WASHER,THRUST,0.2T | 14 | 21025-011 | AR | ||
| WASHER,PLAIN | 15 | 92022-1108 | 3 | ||
| WASHER,THRUST,0.8T | 16 | 92022-1132 | 1 | ||
| CIRCLIP,13M/M | 17 | 92033-037 | 1 | ||
| PIN | 18 | 92043-087 | 3 | ||
| "0" RING,42.8MM | 19 | 21027-005 | 1 | ||
| "0" RING,STARTER MOTR | 20 | 92055-1086 | 2 | ||
| CHAIN,DYNAMO | 21 | 92057-1009 | 1 | ||
| CAP,STARTING MOTOR | 22 | 21017-020 | 2 | ||
| SPRING | 23 | 92081-110 | 3 | ||
| PIN | 24 | 92122-001 | 3 | ||
| BOLT-UPSET | 25 | 112G0625 | 2 | ||
| SCREW PAN HEAD 6X14 | 26 | 220B0614 | 1 | ||
| WASHER PLAIN 6MM | 27 | 411B0600 | 2 |
