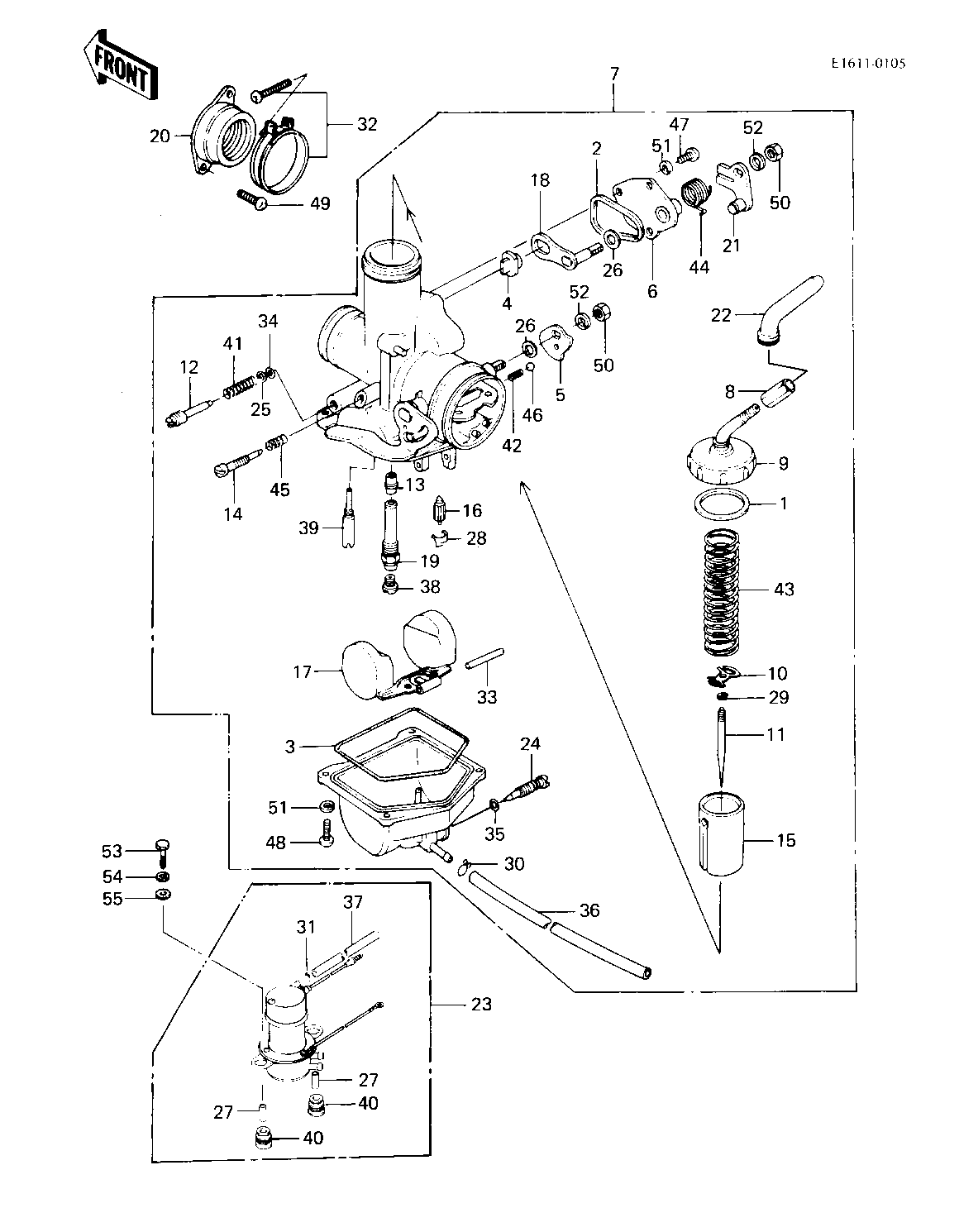

1983 KLT250 - CARBURETOR ('83 A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-MIXING CHAMBER 1 11009-1278 1
GASKET-FAST IDLE 2 11009-1279 1
"O" RING,FLOAT BALL 3 16019-024 1
GUIDE-THROTTLE 4 13070-1060 1
PLATE-CHOKE CAM 5 13169-1492 1
COVER-FAST IDLE 6 14025-1452 1
CARBURETOR 7 16001-1912 1
ADJUSTER,CABLE 8 16002-1002 1
CHAMBER-MIXING,TOP 9 16005-1014 1
SEAT-SPRING,THROTTLE 10 16007-1049 1
NEEDLE-JET 11 16009-1104 1
SCREW,PILOT ADJUST 12 16014-1029 1
NEEDLE JET 13 16017-1001 1
SCREW-THROTTLE STOP 14 16021-1037 1
VALVE-THROTTLE,#2 15 16025-1064 1
FLOAT VALVE 16 16030-1007 1
FLOAT 17 16031-1001 1
SHAFT-CARB,FAST IDLE 18 16041-1026 1
HOLDER-NEEDLE JET 19 16065-1053 1
HOLDER-CARBURETOR 20 16065-1064 1
ARM-IDLE PLATE 21 21083-1013 1
CAP,CABLE ADJUSTER 22 49006-1007 1
PUMP-FUEL 23 49040-1006 1
SCREW,DRAIN 24 92009-1095 1
WASHER,PLAIN 25 92022-1003 1
WASHER-CHOKE CAM 26 92022-1308 2
COLLAR,6X22 27 92027-1581 2
CLIP,FLOAT VALVE 28 16044-007 1
CIRCLIP,JET NEEDLE 29 92037-1039 1
CLAMP,TUBE,OVERFLOW 30 92037-1142 1
CLAMP,FUEL HOSE 31 92037-1395 2
CLAMP,CARBURETOR HLDR 32 92037-178 1
FLOAT PIN 33 92043-1002 1
O RING,PILOT ADJ 34 92055-1002 1
"O" RING,DRAIN SCREW 35 92055-1053 1
HOSE,FUEL OVERFLOW 36 92059-1046 1
TUBE,4.5X8.5X700 37 92059-1283 1
JET-MAIN #110 38 92063-1114 1 STD
MAIN JET,#105 38 92063-1009 (1
JET-MAIN #108 38 92063-1116 (1
JET-MAIN #112 38 92063-1117 (1
JET-MAIN #115 38 92063-1118 (1
JET-PILOT #42 39 92064-1048 1
DAMPER,FUEL PUMP 40 92075-1481 2
SPRING,PIROT ADJ SCRW 41 92081-1002 1
SPRING 42 92081-1249 1
SPRING-THROTTLE VALVE 43 92081-1435 1
SPRING-FAST IDLE 44 92081-1436 1
SPRING-THROTTLE STOP 45 92081-1437 1
BALL-CHOKE CAM 46 92140-1007 1
SCREW PAN HEAD 4X8 47 220B0408 3
SCREW-PAN-CROS 48 220B0414 4
SCREW PAN HEAD 6X14 49 220B0614 2
NUT,5MM 50 311B0500 2
WASHER SPRING 4MM 51 461F0400 7
WASHER SPRING 5MM 52 461F0500 2
BOLT 6X35 53 110R0635 2
WASHER SPRING 6MM 54 461F0600 2
WASHER,6.5X16X2 55 92022-1565 2
