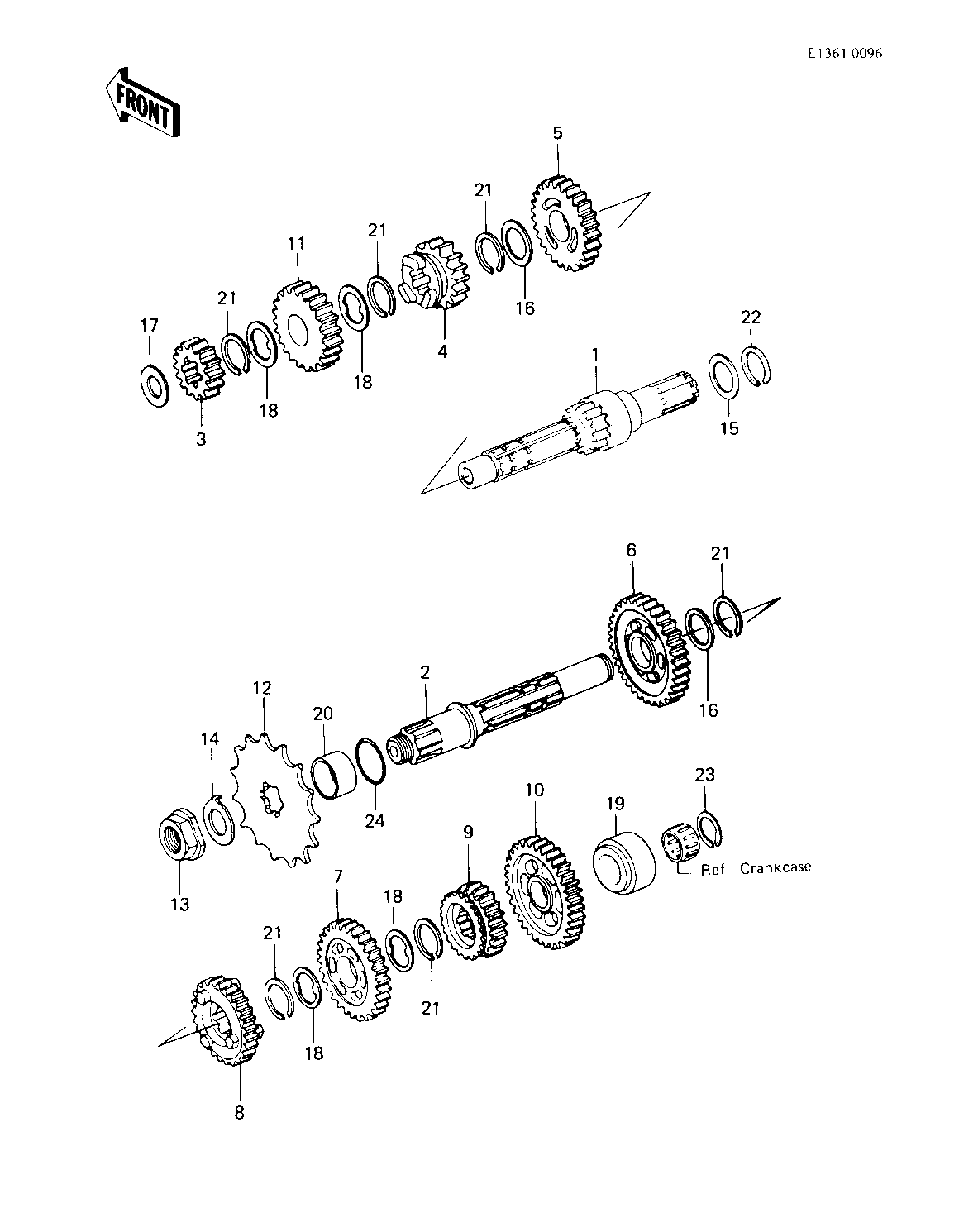

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION IN | 1 | 13127-1068 | 1 | ||
| SHAFT,OUTPUT | 2 | 13128-1007 | 1 | ||
| GEAR,INPUT,2ND,13T | 3 | 13129-1316 | 1 | ||
| GEAR,INPUT,3RD,18T | 4 | 13129-1317 | 1 | ||
| GEAR,INPUT,TOP,24T | 5 | 13129-1318 | 1 | ||
| GEAR,OUTPUT,2ND,27T | 6 | 13129-1320 | 1 | ||
| GEAR,OUTPUT,3RD,26T | 7 | 13129-1321 | 1 | ||
| GEAR,OUTPUT,4TH,21T | 8 | 13129-1322 | 1 | ||
| GEAR,OUTPUT,TOP,20T | 9 | 13129-1323 | 1 | ||
| GEAR-TRANSMISSION SPU | 10 | 13129-1422 | 1 | ||
| 4TH GEAR,DRIVE SHAFT | 11 | 13134-026 | 1 | ||
| SPROCKET-OUTPUT,13T | 12 | 13144-1038 | 1 | ||
| SPROCKET-OUTPUT,12T | 12 | 13144-1039 | (1 | ||
| NUT,LOCK,16M/M | 13 | 92015-1013 | 1 | ||
| WASHER,LOCK | 14 | 92022-1017 | 1 | ||
| WASHER THRUST | 15 | 92022-112 | 1 | ||
| WASHER-PLAIN | 16 | 92022-198 | 2 | ||
| WASHER,THRUST,15MM | 17 | 92022-279 | 1 | ||
| WASHER-LOCK | 18 | 92024-039 | 4 | ||
| SPACER,DRIVE SHAFT | 19 | 92026-1061 | 1 | ||
| COLLAR,ENGINE SPROCKT | 20 | 92027-287 | 1 | ||
| CIRCLIP,25MM | 21 | 92033-025 | 6 | ||
| CIRCLIP,18MM | 22 | 92033-029 | 1 | ||
| CIRCLIP,16MM | 23 | 92033-032 | 1 | ||
| "0" RING | 24 | 92055-022 | 1 |
| SHAFT-TRANSMISSION IN | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,OUTPUT | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT,2ND,13T | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT,3RD,18T | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT,TOP,24T | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT,2ND,27T | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT,3RD,26T | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT,4TH,21T | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT,TOP,20T | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-TRANSMISSION SPU | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 4TH GEAR,DRIVE SHAFT | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-OUTPUT,13T | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-OUTPUT,12T | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,16M/M | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER THRUST | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST,15MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-LOCK | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPACER,DRIVE SHAFT | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,ENGINE SPROCKT | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,25MM | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,18MM | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,16MM | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
