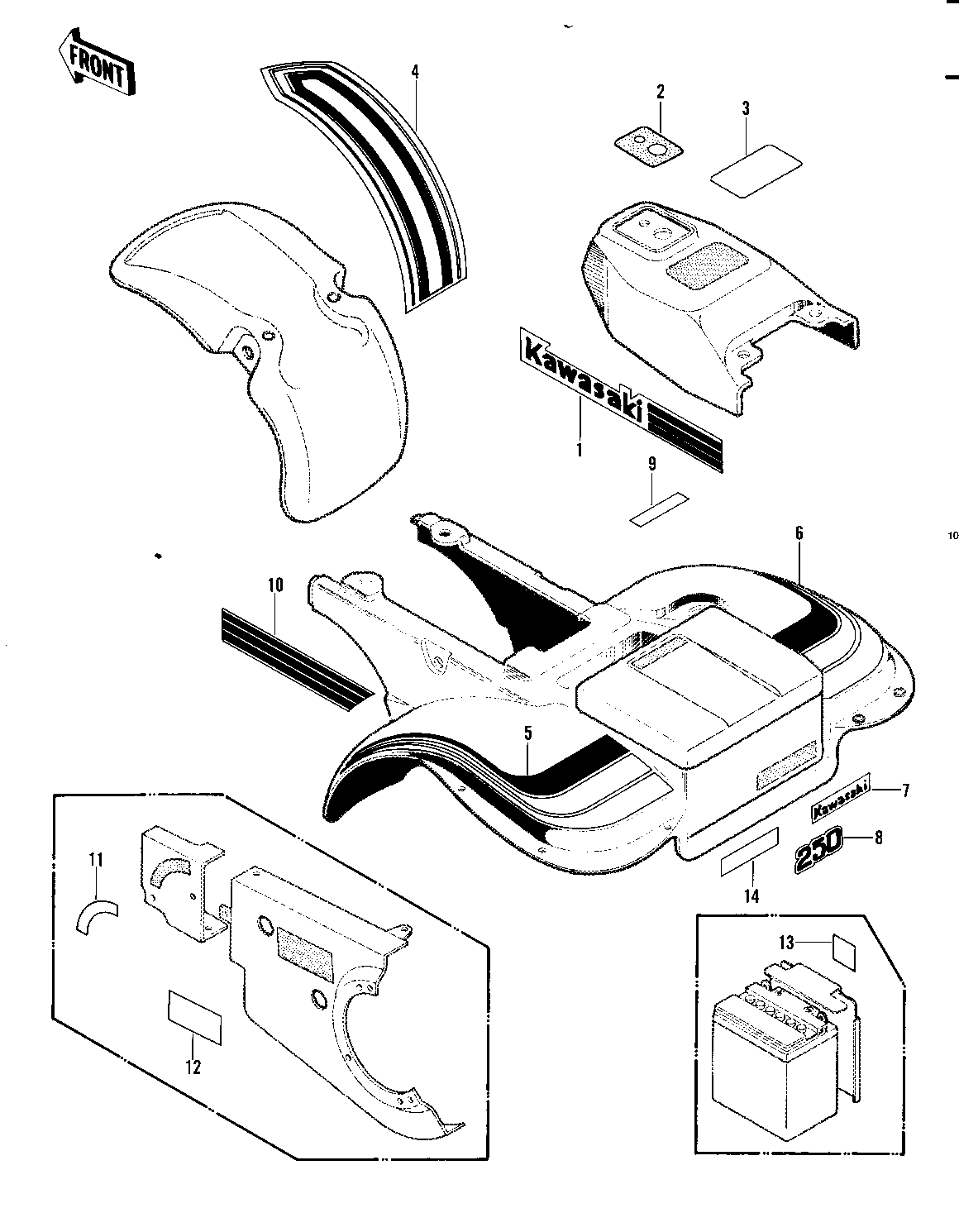

1982 KLT250 - LABELS (BLACK MODEL) ('82 A1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM-KAWASAKI,LH | 1 | 56014-4021 | 1 | ||
| EMBLEM-KAWASAKI,RH | 1 | 56014-4022 | 1 | ||
| LABEL-IGNITION PLATE | 2 | 56030-4005 | 1 | ||
| LABEL-WARNING,INFO | 3 | 56040-4006 | 1 | ||
| PATTERN-FRONT FENDER | 4 | 56027-4077 | 1 | ||
| PATTERN-REAR FNDR,RH | 5 | 56027-4081 | 1 | ||
| PATTERN-REAR FNDR,LH | 6 | 56027-4080 | 1 | ||
| EMBLEM KAWASAKI TRUNK | 7 | 56014-4017 | 1 | ||
| MARK-"250"-REAR | 8 | 56018-4009 | 1 | ||
| LABEL-NO PASSENGER | 9 | 56040-4008 | 1 | ||
| PATTERN-SIDE PANEL,LH | 10 | 56027-4078 | 1 | ||
| PATTERN-SIDE PANEL,RH | 10 | 56027-4079 | 1 | ||
| LABEL-SHIFT PATTERN | 11 | 56031-4008 | 1 | ||
| LABEL-CHAIN TENSION | 12 | 56031-4007 | 1 | ||
| LABEL-BATTERY VENT | 13 | 56031-4009 | 1 | ||
| LABEL-DO NOT CARRY | 14 | 56040-4009 | 1 |
