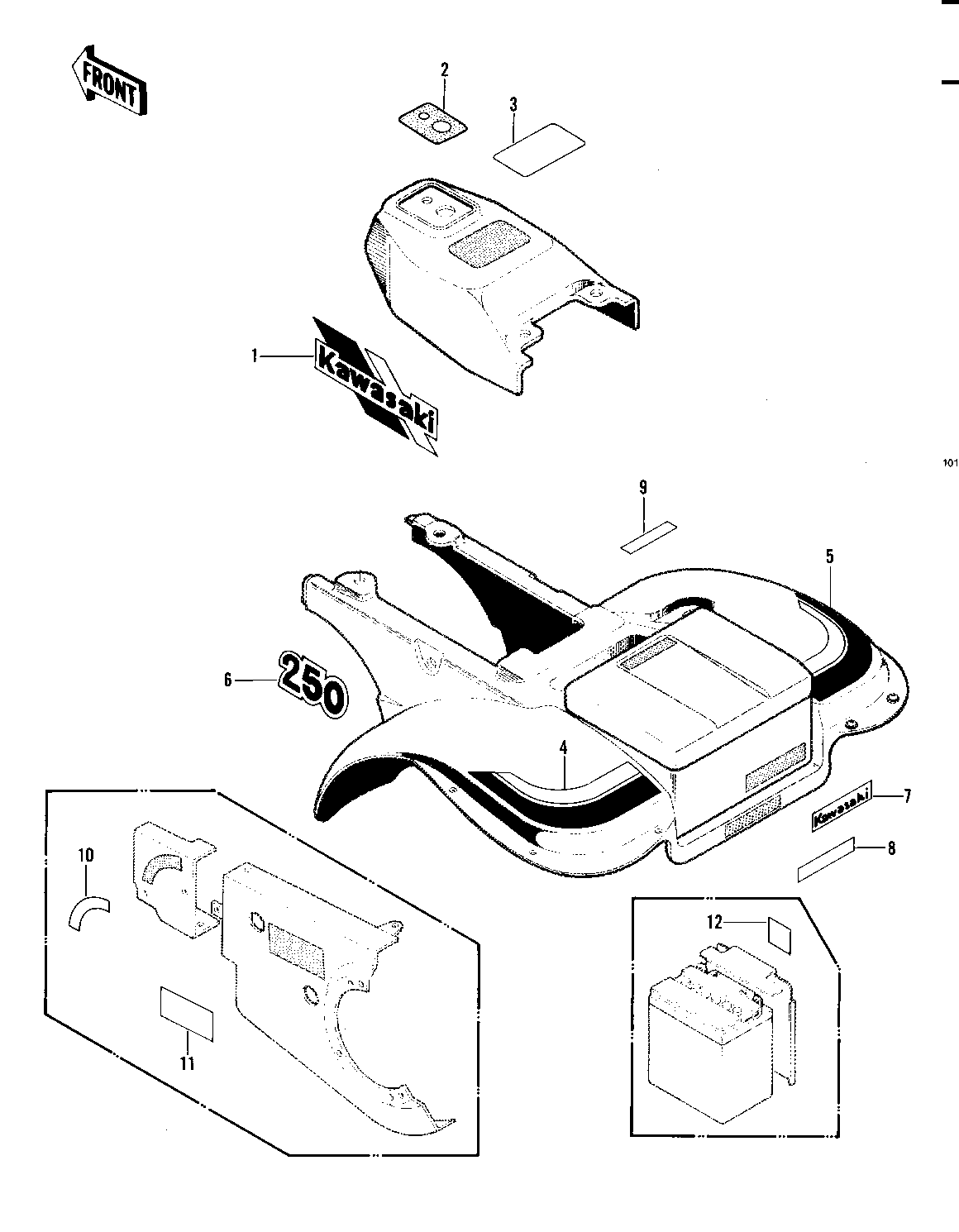

1982 KLT250 - LABELS (LIME GREEN MODEL) ('82 A1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM-"KAWASAKI"-LH | 1 | 56014-4013 | 1 | ||
| EMBLEM-"KAWASAKI"-RH | 1 | 56014-4014 | 1 | ||
| LABEL-IGNITION PLATE | 2 | 56030-4003 | 1 | ||
| LABEL-WARNING,INFO | 3 | 56040-4006 | 1 | ||
| PATTERN-FNDR-REAR,LH | 4 | 56027-4059 | 1 | ||
| PATTERN-FNDR-REAR,RH | 5 | 56027-4060 | 1 | ||
| MARK-"250" | 6 | 56018-4002 | 2 | ||
| EMBLEM KAWASAKI TRUNK | 7 | 56014-4017 | 1 | ||
| LABEL-DO NOT CARRY | 8 | 56040-4009 | 1 | ||
| LABEL-NO PASSENGER | 9 | 56040-4008 | 1 | ||
| LABEL-SHIFT PATTERN | 10 | 56031-4008 | 1 | ||
| LABEL-CHAIN TENSION | 11 | 56031-4007 | 1 | ||
| LABEL-BATTERY VENT | 12 | 56031-4009 | 1 |
